Specifications
4x2 HDMI 3D HDTV HD True Matrix 1.4 1080p Switch Splitter 4 In 2 Out IR Remote1.HIFI
2.4x2
4x2 HDMI 3D HDTV HD True Matrix 1.4 1080p Switch Splitter 4 In 2 Out IR Remote
This Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio output optical
or stereo simultaneously. It can easily switch or split four high definition video sources
to two compatible displays or projectors. The Optical and stereo audio output can extract
audio signal from output A.
Features
1. Four HDMI input signals switched or split to two HDMI sink devices
2. One of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
3. Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable
4. Support 3D
5. Support 4K X 2K
6. With HDMI-CEC function
7. Support deep color 30bit, 36bit
8. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
9. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
10. Support signal retiming
11. Support input up to 15metres AWG24 HDMI standard cable length, output up to 25 metres AWG24 cable length
12. Inputs can be switched with the IR remote control, also can be controled by two buttons
13. MHL interface RCP function, OUT A supports RCP function. Through the TV remote control to realize the control
of the mobile device and matrix switch (mobile devices should support RCP unction and TV support CEC function)
14. MHL/HDMI two working mode. Two inputs combined in one, effectively reduced the inputs numbers
15. It can smartly jump over those sources which are not connected
16. It can come back to the default the input 1 status when testarted or teset
17. LED Indecate: when someone source device or someone sink display device is working, the LED relative will come
to light;when someone source is selected to any sink, the LED relative to the source will come to light
18. No loss of quality, Installs in minutes, Need DC 5V/3A power supply.
Input |
HDMI |
Output |
HDMI |
Input connector |
4 HDMI female ports |
Output connecter |
HDMI Female port |
Sampling rate |
60Hz/75Hz |
Size(L*W*H) |
250x27x75(mm) |
Weight(net) |
380g |
Limited Warranty |
1 year |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 60 % RH (no condensation) |
Storage Temperature |
-25°C to +75°C |
Storage Humidity |
5% to 80 % RH (no condensation) |
External Power Supply |
DC/5V power adapter |
Power Consumption |
3.5 watts (max) |
Converter Unit |
FCC,CE,UL |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
Package Contents
Before attempting to use this unit,please check the packaging and make sure the following items are contained in the shipping carton:
HDMI Matrix 1pcs
Power supply 1pcs
User manual 1pcs

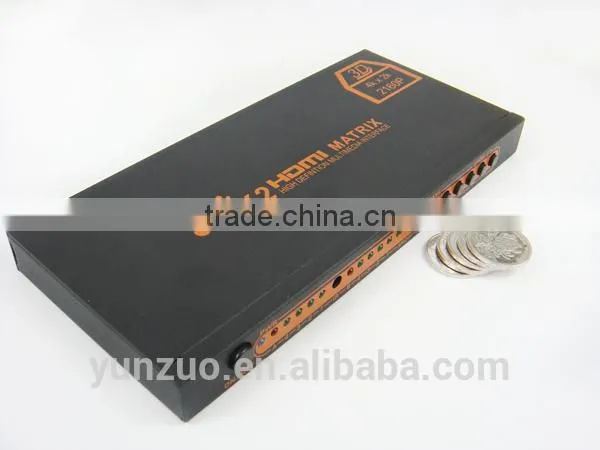

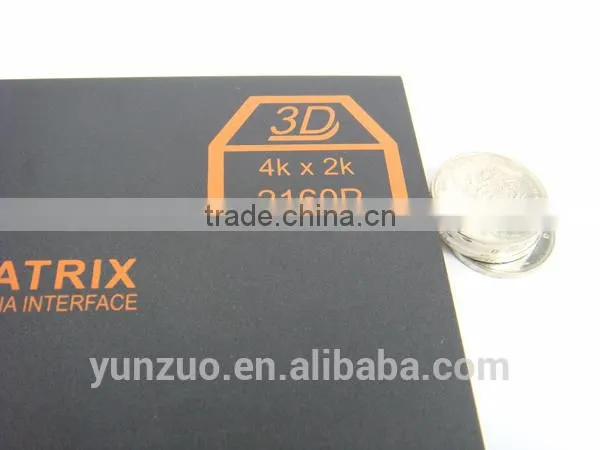

Following is the product pictures:
Packaging & Shipping
Packing Details: Carton or color box.
Shipping Details: In 1-3 weeks.
Our Certificates:
The process:
The Market:
The Workshop and Product show :
How could I get samples?
We can provide samples if you have?a Fedex or DHL account or other courier freight collectable account and agree?
to pay the courier freight.or,you send us the samples charge together with the courier cost by T/T.
How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.
How can I get your price list?
Please send us your email or fax for our price list and order information.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, and the minimum quantity for silk screen printing is 2000 units per logo. You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
What's your usual payment term for orders?
We accept terms of T/T in advance or L/C at sight, T/T preferable under US$20,000, and paypal with the fee of it.
