Specifications
HDMI extender by single cat5e cat6 lan cable 30M 60m1. Extender HDMI signal up to 60 meters
2. CE,FCC,ROHS,HDMI adaptor

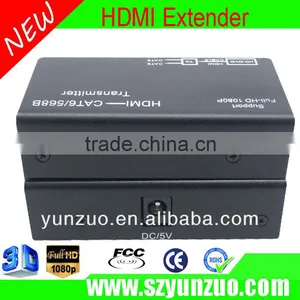

HDMI extender by single cat5e cat6 lan cable 30M 60m
The HDMICAT60RX&TX Extender use double cat-5E or cat-6(recommended) cables up to 60 metres instead
of HDMI cable to transmit high definition signal, for cutting down cost. Long Distance transmission of high
definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to
supply for long distance transmission of high definition signal.
| Name of the product | HDMI Extender by double Cat5E/6/7 Full HD 1080P |
| Length of CAT-6 cable between Rx and TX | Up to 60 metres |
| HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format input | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format output | LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 165MHz |
| Max baud rate | 4.95Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI1.3 cable distance | ≤ 20m AWG26 HDMI 1.3 standard cable |
| Max working current | 800mA |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
| Operating Temperature range | (-15 to +55º C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 82x45x22 (mm) |
| Weight | 150g |
| Warranty | 1 Year |
| Power Supply | 5V DC@2A |
| AC Power Adapter | US standard, UK standard and so on |
| Accessories with the machine | a) 5V power adaptor b) one pc of manual |
| Regulatory Approvals | ROHS, CE, FCC |
1. Connect one HDMI 1.3 cable up to 20 metres between source device and TX Extender
2. Connect one HDMI 1.3 cable up to 20 metres between sink device and RX Extender
3. Connect double cat-5e or cat-6(recommended) cables up to 60 metres instead of HDMI Calbes between TX and RX Extender
4. Connect 5V power supply to the HDMICAT60RX&TX Extender
