hdmi extender cat51.Professional hdmi extender
2.Manufacturer
3.Cat6 568B support
4.60 metres extend
HDMI extender cat5
I.Description:
This HDMI Extender is based on the HDBaseT technology. It extends your HD display with the resolutions of 1080p/60Hz up to 200 feet (60 meters) away from your HDMI or DVI-D source using one . It also extends Ethernet and provides an IR back channel to control AV sources using the same CAT5e/6/7 cable. The three Ethernet ports on both the Sender and Receiver are connected to standard network devices such as 100Base-T routers and hubs. Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
II.Features:
1,Support HDCP
2,Support uncompressed HDMI signal.
3,Enables HDMI10.2 Gbps and 100Mbps Ethernet in parallel over a single 100m Cat5e/6 cable.
4,Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
5,Support 1080p@60Hz@48bit pixels
6,Support 3D pass-through.
7,Support CEC pass-through.
8,Supports uncompressed audio such as LPCM.
10,Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD)
11, There are 3 standard Ethernet ports with switching capabilities on each unit. There is no difference 12,between the 3 and any type of connection topology is permitted.
13, Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
14,CAT5e/6/7 cable follows the standard of IEEE-568B.
III.Specification:

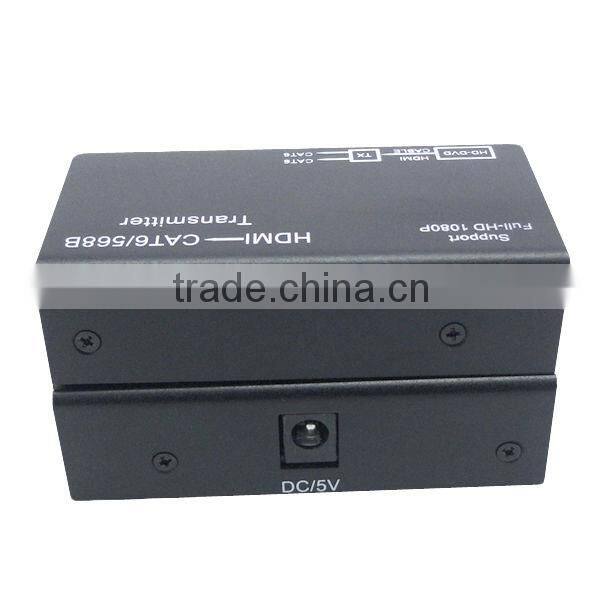

IV.Picture:
