hdbaset HDMI Extender double 60m extension over Cat5e/6
- 10000 Piece / Pieces per Month
- Shenzhen
You May Like
Product Details
| Model Number | HYE-CAT5e6-60M-S1-V0 | Place of Origin | Guangdong, China | |
| Brand Name | OEM |
Product Description
Specifications
1.HDMI extender by dual cat5e2.support 3D
3.extender HDMI signal up to 60 meters
4.CE,FCC,ROHS,HDMI adaptor
5. OEM,ODM
hdbaset HDMI Extender double 60m extension over Cat5e/6
Itroduction
The HDMICAT60RX&TX Extender use double cat-5E or cat-6(recommended) cables up to 60 metres instead of HDMI cable to transmit high definition signal, for cutting down cost. Long Distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

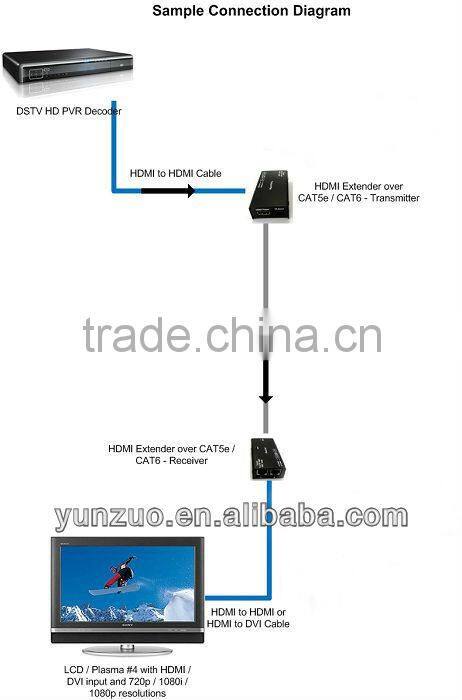

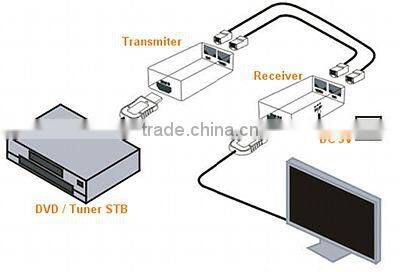

Operating and Connecting:
1. Connect one HDMI 1.3 cable up to 20 metres between source device and TX Extender
2. Connect one HDMI 1.3 cable up to 20 metres between sink device and RX Extender
3. Connect double cat-5e or cat-6(recommended) cables up to 60 metres instead of HDMI Calbes between TX and RX Extender
4. Connect 5V power supply to the HDMICAT60RX&TX Extender
| SPECIFICATION | |
| Name of the product | HDMI Extender by double Cat5E/6/7 Full HD 1080P |
| Length of CAT-6 cable between Rx and TX | Up to 60 metres |
| HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format input | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format output | LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 165MHz |
| Max baud rate | 4.95Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI1.3 cable distance | ≤ 20m AWG26 HDMI 1.3 standard cable |
| Max working current | 800mA |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
| Operating Temperature range | (-15 to +55º C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 82x45x22 (mm) |
| Weight | 150g |
| Warranty | 1 Year |
| Power Supply | 5V DC@2A |
| AC Power Adapter | US standard, UK standard and so on |

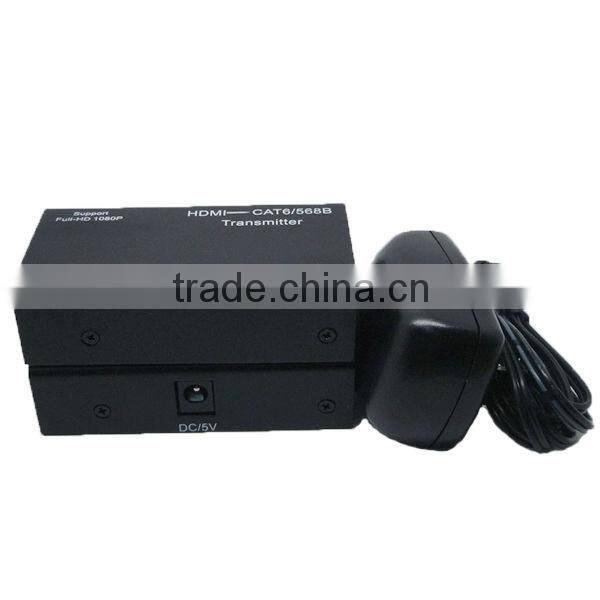

| Accessories with the machine | a) 5V power adaptor b) one pc of manual |
| Regulatory Approvals | ROHS, CE, FCC |
| Note: Specifications are subject to change without notice. | |
