Specifications
1.Resolution:2048*11522.Simple to operate
3.At most six monitors
Shenzhen HDMI Splitter 1x2, HDMI splitter
Introduction:

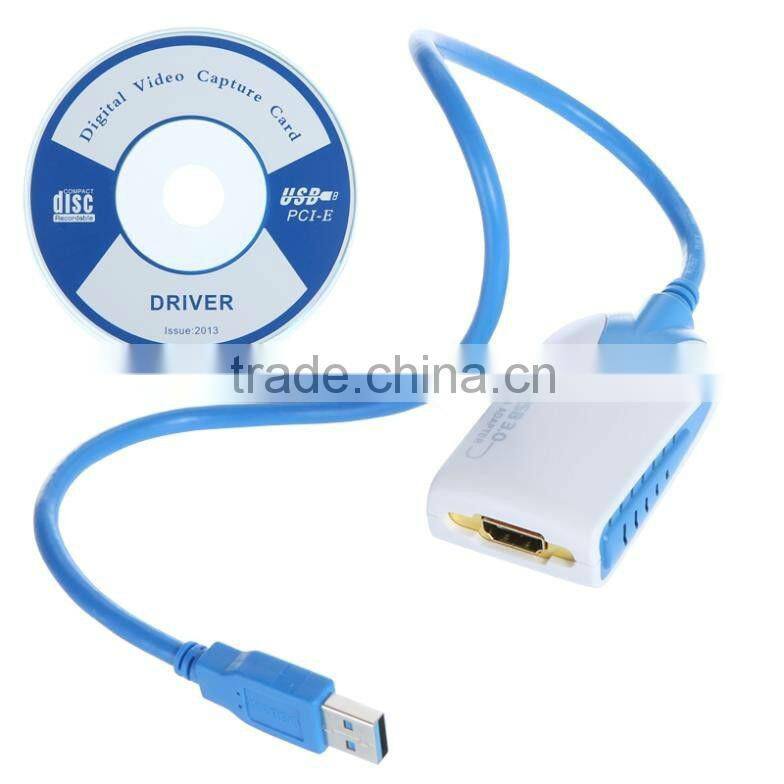

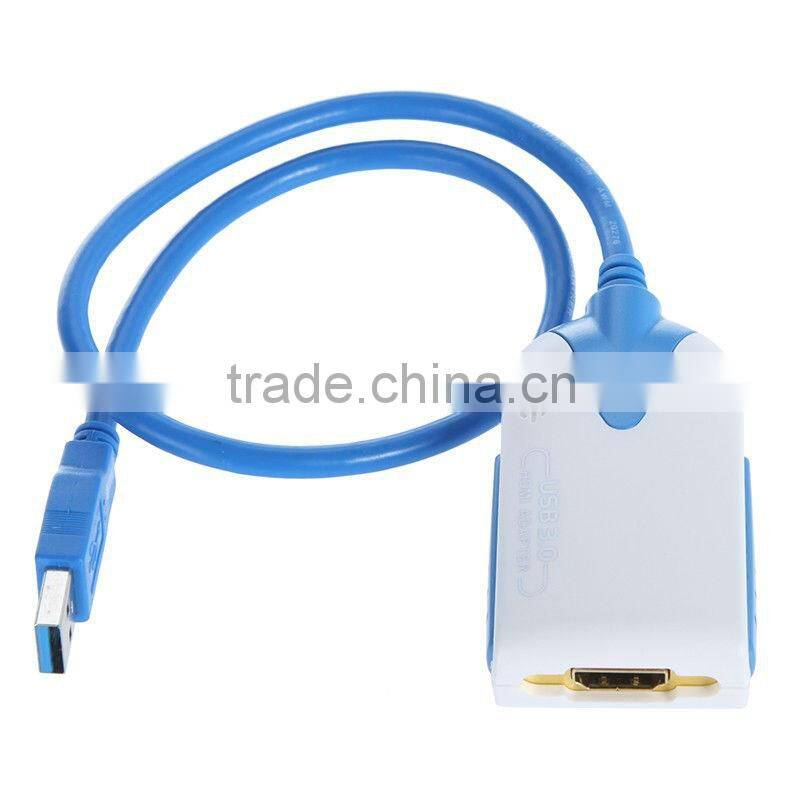

By 10 times faster than USB 2.0, the USB3.0 to HDMI Display Adapter provides a unique solution to add an extra display for your computer just plug and play. USB3.0 to HDMI Display Adapter works as external video card which allows adding an additional display instantly without hassle of open the computer chassis to install the internal graphics card. The connected display can act as mirrored or extended desktop of the main display on your computer. You can experience 1080P video playback through HDMI interface and Super Speed USB 3.0 for both work and entertainment.
Feature:
• USB 3.0 specification compliant
• Backward compatible to USB 2.0 specification
• HDMI ver 1.2 specification compliant
• LED indicator: Green light up → USB 3.0 / Red light up→ USB 2.0
• Supports display resolution up to: 2048 x 1152 @ 32bit
• Supports 1080P video playback
• Plug-n-Play USB connectivity after software installed
• Supports multi-display up to six adapters for office application
Function:
• Display Modes: Primary / Extended / Mirror
• Display Rotation:0°, 90°, 180°, 270°
• Resolution up to : 2048 x 1152
Specification:
System Requirements
• Available USB 3.0 / USB 2.0 port
• 1~2 Displays (office application):
CPU: Intel i3 Dual core 2.8GHz
RAM: 2GB memory or higher
• 3~4 Displays (office application):
CPU: Intel i5 Quad Core 2.8GHz
RAM: 4GB memory or higher
• 5~6 Displays (office application):
CPU: Intel i7 Quad Core 3.0GHz
RAM: 8GB memory or higher
• Full HD Video one display
Intel i5 Processor recommended
CPU: Quad Core 3.0GHz
RAM: 4GB memory or higher
• Windows XP SP3/ Windows 7 (32-bit / 64-bit)
Hardware Specification
Display Memory |
16MB SDRAM |
Host Interface |
USB 3.0 A type connector |
Cable Length |
17 ± 1 (cm) soldered PCBA |
Video Interface |
HDMI female connector |
Case Material |
ABS |
Power Source |
Bus Powered |
Working Current |
≤400 mA |
Monitor Refresh Frequency |
60Hz |
Regulatory Compliances |
CE, FCC, VCCI and C-Tick |
Operating Temperature |
0 ~45°C |
Storage Temperature |
-15~75°C |
Humidity |
< 85% non-condensing |
