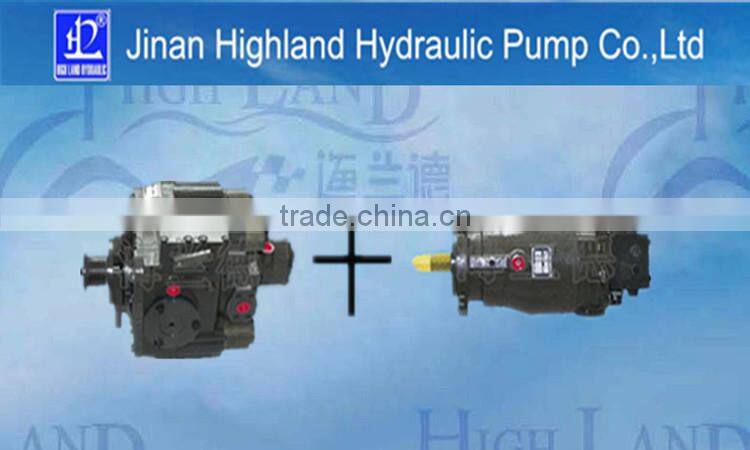

factory direct sales hydraulic motor pump assembly
Technical Data:
- PV Hydraulic Pump
| models of hydraulic pump |
PV20 | PV21 | PV22 | PV23 |
Max. Displacement( ml/r) |
33.3 | 51.6 | 69.8 | 89.0 |
Max. Flow( l/min) |
119.54 | 180.6 | 196.14 | 230.51 |
Charge pump displacement( ml/r) |
12.3 | 16.2 | 18.03 | 18.03 |
| Max. Speed( r/min) | 3590 | 3500 | 2810 | 2590 |
| Weight( kg) | 45 | 53 | 63 | 78 |
- MF Hydraulic Motor
| Technical Spec. for Hydraulic Motor | |||||
| Parameter | Units | Specification | |||
| Model No. | MF20 | MF21 | MF22 | MF23 | |
| Charge pump displacement | ml/r | 12.3 | 16.2 | 18.03 | 18.03 |
| Max. pressure | Mpa | 35 | |||
| Rated pressure | Mpa | 21 | |||
| Charge pressure | Mpa | 0.8-2.0 | |||
| Max. case pressure | Mpa | Constant0.25,Peak value0.5 | |||
| Output torque at 35Mpa | Nm | 176 | 180.6 | 369 | 471 |
| Max. speed | r/min | 3590 | 3500 | 2810 | 2590 |
| Min. speed | r/min | 500 | |||
| Rated speed | r/min | 1500 | |||
| Dynamic viscosity range of the operating fluid | 1000 | ||||
| Start | 12-600 | ||||
| Operating | mm2S-1 | 25--35 | |||
| Optimum condition | |||||
| Operating fluid | Mineral oil | ||||
| Operating Temperature | ℃ | —40 to +50 | |||
| Max. operating temperature of the oil tank | ℃ | 80 | |||
| Filtering precision of the operating fluid | μm | 10 | |||
| Shaft direction | clockwise/anti-clockwise | ||||
| Max. tilt angle of the swash plate | 0 | ±180 | |||
| Weight | KG | 45 | 53 | 63 | 78 |
Features:
- Hydraulic pumps are well engineered and easy to handle.
- The pumps can be connected with other additional pumps.
- Upon release of the control handle, the swash plate automatically returns to zero position and
the flow reduces to zero.
- High case pressures can be achieved without leakage even at the lowest temperatures
by using suitable shaft seals.
- The servo valve arrangement offers the facility to incorporate function regulators and remote
control systems.
Other models of hydraulic pumps:
A4VSO40, A4VSO45, A4VSO71, A4VSO125, A4VSO180, A4VSO250
A4VG56, A4VG71, A4VG90, A4VG125, A4VG180
A4VHW90
A10VSO16/18, A10VSO028, A10VSO045, A10VSO71, A10VSO100, A10VSO140
A2F80
PV20, PV21(PVD21), PV22(PVD22), PV23(PVD23), PV24
PV90RO55, PV90RO75
K3V112DT
HPV116 (EX200-1)

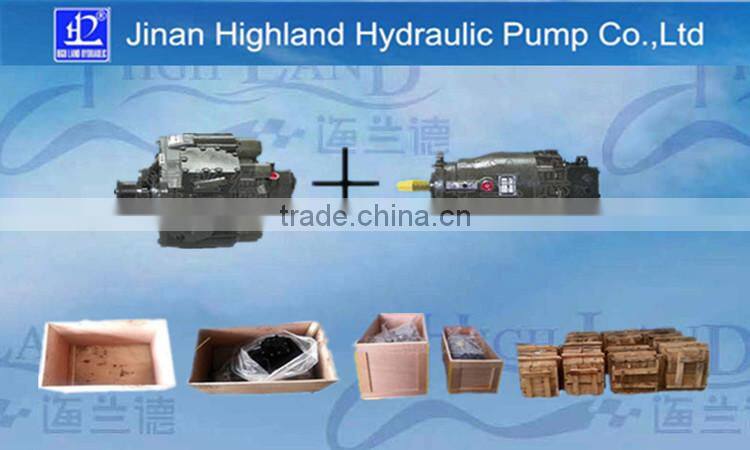

Packaging:
wooden boxes package, suitable for long distance transportation;
according to costomers' requirements.
Shipping:
by sea;
by air;
according to request.

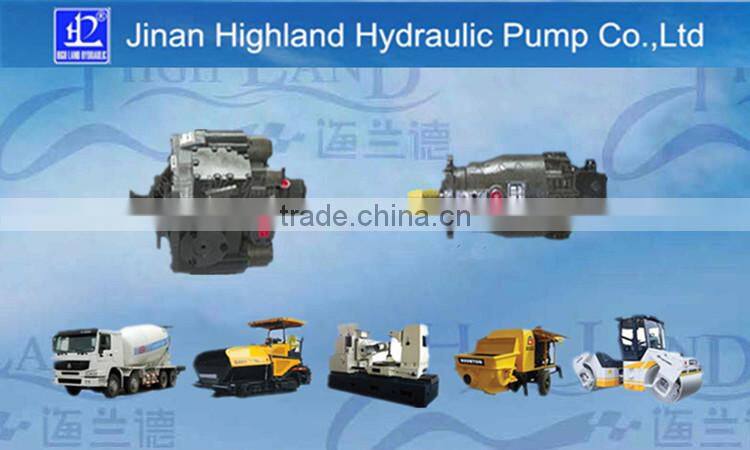

hydraulic motor pump assembly is widely applied in:
- Paver,
- Harvester,
- Grain Drill,
- Road Roller,
- Corn Harvester,
- Wheat Harvester,
- Reaping Machine,
- Rice Transplanter,
- Concrete Mixing Truck,
- Pharmaceutical Machinery,
- Continous Soil Mixing Machine,
- and other heavy construction machinery.
- Brief Introduction
High Land Hydraulic Pump Co., Ltd is a professional and high-tech enterprise. The company boasts solid technical strength, scientific management, advanced production testing equipment.
By researching and designing hydraulic breakdown diagnosis equipment and learning advanced technology from similar international equipment, the company has developed high-level hydraulic chechout gauges and comprehensive testing tables among portable hydraulic testing series. The key parts of pump and motor accessories are made of imported raw-material and hydraulic comprehensive testing tables are exported to different countries.
The company is well-known for its technology of hydraulic system checkout and hydraulic pump repair. Due to considerate service, advanced technology and timely guarantee, the company is warmly welcomed by customers at home and abroad.

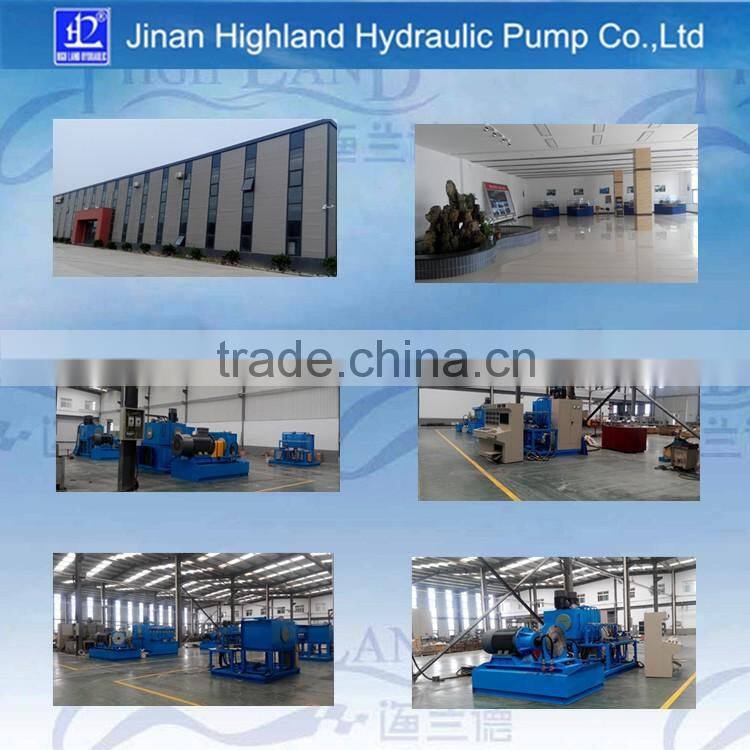

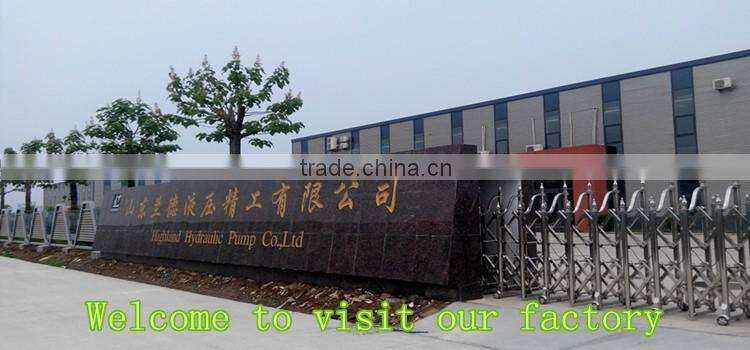

- View of Our Factory
- Exhibition Show
