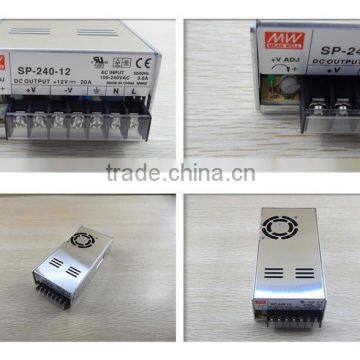

SP-240 240w Meanwell Stadium Lighting Power Supply

SP-240 240w Meanwell Stadium Lighting Power Supply thumbnail-1
SP-240 240w Meanwell Stadium Lighting Power Supply thumbnail-2
SP-240 240w Meanwell Stadium Lighting Power Supply thumbnail-3
SP-240 240w Meanwell Stadium Lighting Power Supply photo-1
SP-240 240w Meanwell Stadium Lighting Power Supply photo-2
SP-240 240w Meanwell Stadium Lighting Power Supply photo-3
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MEAN WELL
Model Number:
SP-240- 5 / 7.5 / 12 / 13.5 / 15 / 24 / 27 / 48
Contact Supplier Request Quote Chat Now
Hangzhou Gunan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MEAN WELL
Model Number SP-240- 5 / 7.5 / 12 / 13.5 / 15 / 24 / 27 / 48
Output Power Other, 0-240W
Output Type Single
Input Voltage Other, 85 ~ 264VAC 120 ~ 370VDC
Output Voltage 5 / 7.5 / 12 / 13.5 / 15 / 24 / 27 / 48 V
Output Frequency 47~63Hz
Output Current 0-45A

SP-240 240w Meanwell stadium lighting Power Supply

240W Single Output with PFC Function SP-240 series

Features:

*  Universal AC input / Full range
*  Built-in active PFC function, PF>0.95
*  Protections: Short circuit / Overload / Over voltage / Over temperature

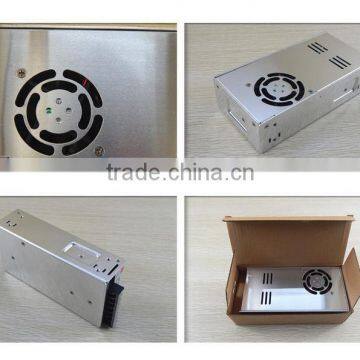

*  Forced air cooling by built-in DC Fan
*  Built-in fan ON / OFF control
*  LED indicator for power on
*  Fixed switching frequency at 90KHz
*  3 years warranty

Specifications:

MODEL

SP-240-5

SP-240-7.5

SP-240-12

SP-240-15

SP-240-24

SP-240-30

SP-240-48











OUTPUT

DC VOLTAGE

5V

7.5V

12V

15V

24V

30V

48V

CURRENT RANGE

0 ~ 45A

0 ~ 32A

0 ~ 20A

0 ~ 16A

0 ~ 10A

0 ~ 8A

0 ~ 5A

RATED CURRENT

45A

32A

20A

16A

10A

8A

5A

RATED POWER

225W

240W

240W

240W

240W

240W

240W

RIPPLE & NOISE (max.)

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

4 ~ 6V

6 ~ 9V

10 ~ 14V

12 ~ 18V

20 ~ 28V

27 ~ 33V

41 ~ 56V

VOLTAGE TOLERANCE

2.0%

2.0%

1.0%

1.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.3%

0.3%

0.2%

0.2%

0.2%

LOAD REGULATION

1.0%

1.0%

0.5%

0.5%

0.5%

0.5%

0.5%

SETUP RISE TIME

800ms, 50ms/230VAC    1500ms, 50ms/115VAC at full load

HOLD UP TIME

20ms/230VAC    20ms/115VAC at full load









INPUT

VOLTAGE RANGE

88 ~ 264VAC  124 ~ 370VDC

FREQUENCY

47 ~ 63Hz

POWER FACTOR

PF>0.95/230VAC    PF>0.98/115VAC at full load

EFFICIENCY

79%

83%

86%

86%

87%

88%

89%

AC CURRENT

3.6A/115VAC   1.8A/230VAC

INRUSH CURRENT

25A/115VAC    40A/230VA, C

LEAKAGE CURRENT

<2mA / 240VAC

 OTHERS

MTBF

284K hrs min. MIL-HDBK-217F

DIMENSION

190*93*50mm (L*W*H)

PACKING

0.8Kg; 18pcs/15.4Kg/1.04CUFT





SP-240 240w Meanwell stadium lighting Power Supply



SP-240 240w Meanwell stadium lighting Power Supply



 SP-240 240w Meanwell stadium lighting Power Supply



SP-240 240w Meanwell stadium lighting Power Supply









 SP-240 240w Meanwell stadium lighting Power Supply
