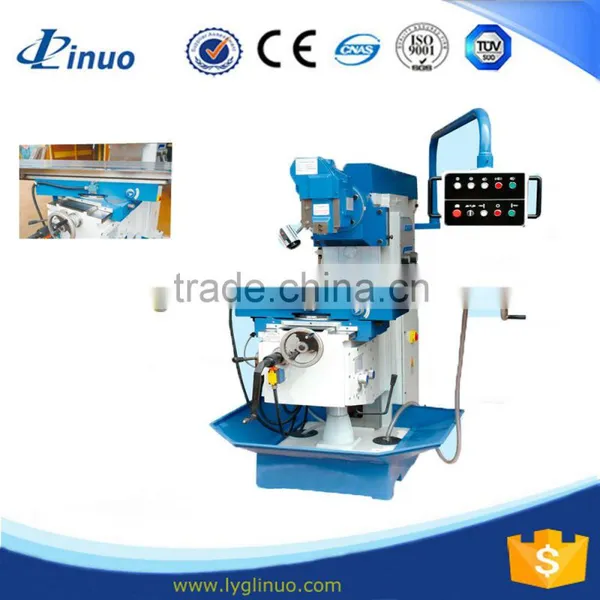

X36BA vertical milling machine
Features:
- Knee Type Universal Milling Machine
- Multifunctional plug, patented products
- High –power power feed
- Square guideway, hardened treatment
- Worktable can turn 45 degrees
Specifications |
X36BA |
Milling vertical shaft inner cone hole |
ISO40 |
Difference from spindle axis to guideway(mm) |
345 |
Slotting maximum traveling range (mm) |
105 |
Inserts works as extreme breadth |
16 |
Slotting stroke number of times (/minute) |
≤80 |
Stroke number of times and transformation |
with variable speed and milling horizontalaxis series are the same |
Horizontal axis turning |
positive rotation |
Tool rest rotation angle (°) |
±90 |
Slotting tool cutter bar center to milling |
525 |
Horizontal axis center altitude |
0-480 |
Table size(mm) |
360*1500 |
Table travel(mm) |
900*400 |
Overall dimensions(mm) |
2300*2000*2000 |
Main electrical machinery (kw) |
4KW |
Feeding motor(kw) |
1.5KW |
Feeding speed |
30,55,100 |
Spindle speed |
60-1800 |
