Automatic Hydraulic ss Pipe and Tube Bending Machine

Specifications

SS pipe bending machine
1.Japan Yuken valve
2.Japan Yuken hydraulic system
3.Computer control
4.CE,ISO9001

 Automatic hydraulic ss pipe and tube bending machine



Our company:

     We are speciallzed in pipe bending machine,pipe ending forming machine, pipe rolling machine,pipe cutting machine and pipe chamfering machine. Our products are wildly used for automative industry, shipbuilding industry, the boiler industry,fitness equipment ,bicycles ,electric cars,motorcycles ,furniture industry and so on.





Main parameter:





Specification/model	Unit	DW63NC
Max bending capability	mm	Φ63×4
Max bending radius	mm	R350
Min bending radius	mm	According to radius
Max bending degree	Degree	190
Max effective distance of mandrel	mm	2600
Control system		NC control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	Kw	5.5
Max hydraulic Pressure	Mpa	12
Hydraulic system control		Electromagnetic Valve
Oil tank capacity	L	220
Measurement	mm	3500×750×1100
Weight of machine	Kg	1500



Features:

SS pipe bending machine



    High performance middle size pipe bending machine, NC control, multi-groups program and multi angles setting, makes your operation and setting convenient. Widely used in mass production and standard products, such as: blast pipe, seat, fender guard and all the steel furniture.



1.The machine is NC control, hydraulic drive, can have different bending degree to prefabricate.



2.English diaplay screen. Man-machine dialogue operation. Can choose manual , semi-automatic, portable prdal have start. Emergency stop function.



3.Use high function imported Japan Yuken hydralic components.



4.Have big capacity cooling system and can control the working temperature.



5.The machine have easy convenient, stable function, high efficiency, high safety factor, is the ideal choice for the pipe processing.



    Automobile fittings (brake fuel pipe, bumper , muffler, seat) motorcycle, shipbuilding, boiler, power plant, train, fitness equipments, air condition, bicycle, steel furniture, bathroom equipment.





Inquiries are welcome at any time.

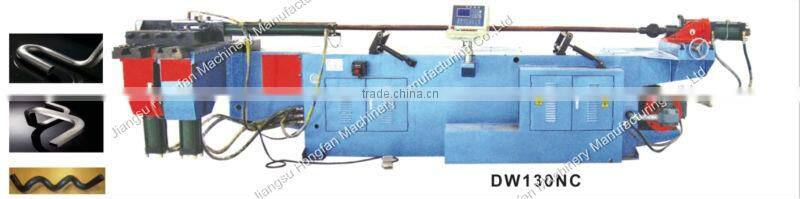

Photots of machine:
