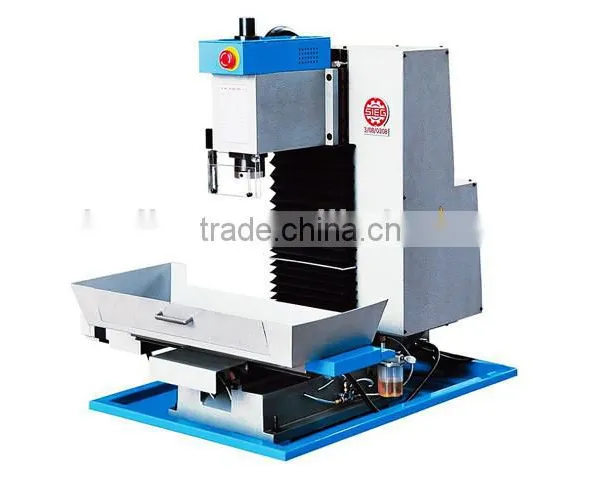

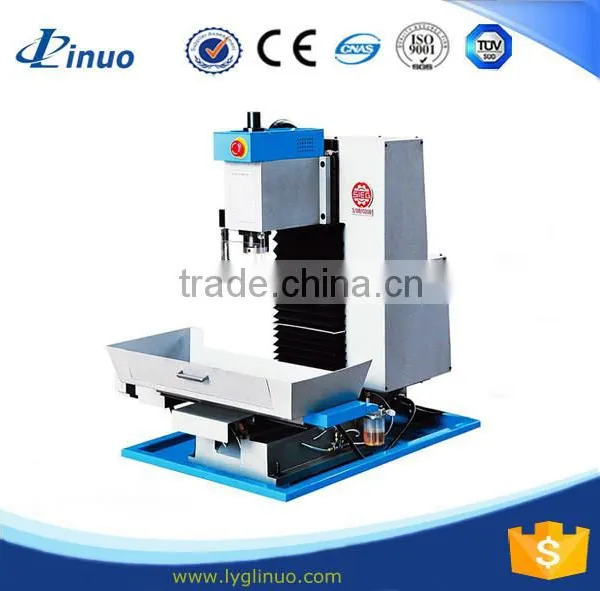

KX3 MACH 5000rpm Spindle speed hobby cnc milling machine
Introduction:
| KX3-Mach CNC Milling Machine | ||
| TABLE | Table size | 550×160mm |
| T slot (amount×width×distance) | 3×12mm×43mm | |
| Max. load | 30kg | |
| TRAVEL | X travel | 280mm |
| Y travel | 120mm | |
| Z travel | 270mm | |
| Spindle nose to table | 80-350mm | |
| Spindle center to column | 200mm | |
| SPINDLE | Spindle taper | MT3/NT3/R8 |
| Spindle motor | 1000w | |
| Spindle speed | 100-5000r/min | |
| FEED(STEPPER) | The max moving speed | 2000mm/min |
| The max feeding speed | 500mm/min | |
| Power of X/Y | 4Nm | |
| Power of Z | 6Nm | |
| FEED(SERVO) | The max moving speed | 5000mm/min |
| The max feeding speed | 1000mm/min | |
| Power of X/Y | 400W | |
| Power of Z | 750W | |
| ACCURACY | Positioning accuracy | 0.015mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 230/120V |
| Weight(NW/GW) | 380/460kg | |
| Overall dimension | 1280×895×1845mm | |
| Packing size | 1420×1060×2035mm | |
Details:
One key type lubrication system

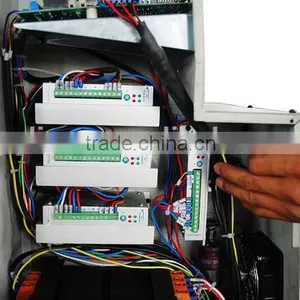

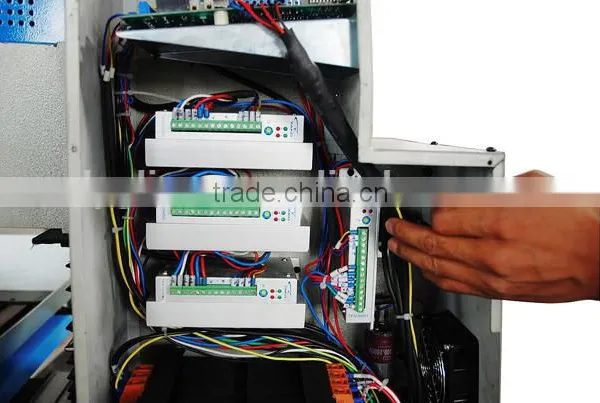

X,Y,Z ad 4th axis are step motors.

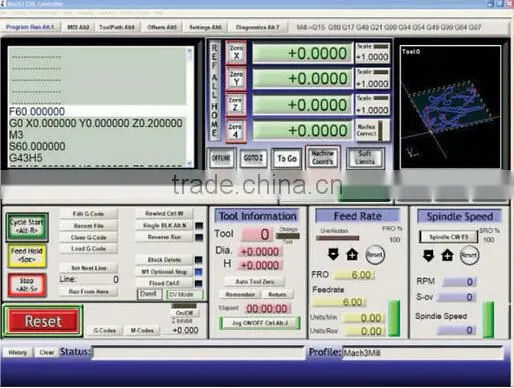

Mach3 system interface:
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
