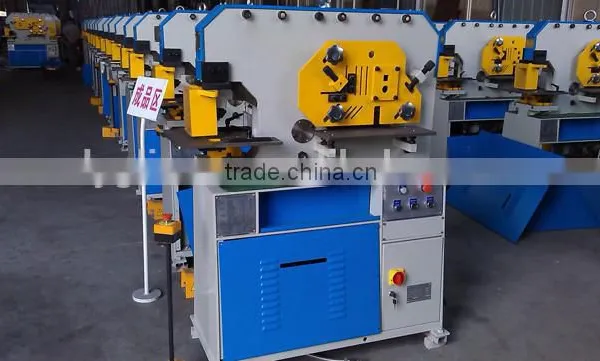

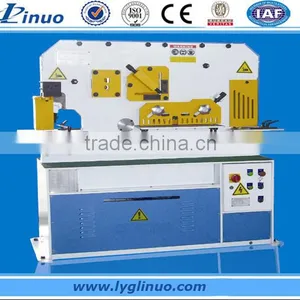

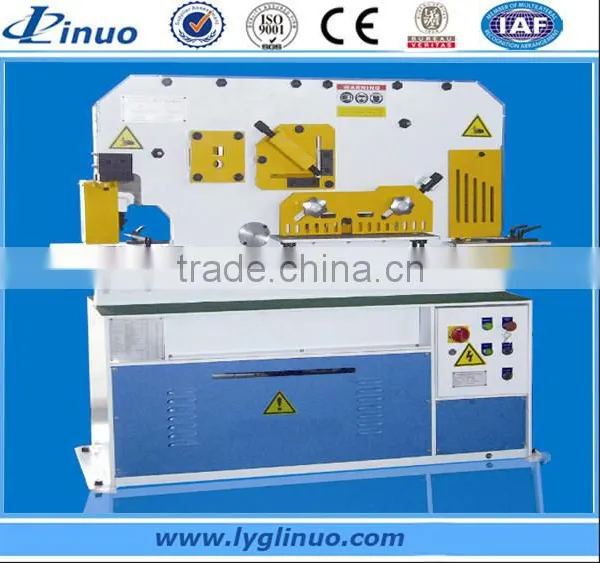

HIW multi function hydraulic iron worker machine
Features :
This kind of machine is the latest iron Workers in our country,which adopt five-stage hydraulic transmission through repated beam movement swing.The whole machine is reasonable structured,light,low noise and easy to take.
The tool adopt whole-structure compact designing,setting five-stage.It is an ideal equipment for cutting angle,round,flat bar,punching,joist,as well as notching,channel,equipped with related stop device for cutting.
| machine specification | HIW-40 | HIW-45 | HIW-60 | ||
| working pressure | kn | 400 | 450 | 600 | |
| MAX. cutting thickness | mm | 10 | 12 | 15 | |
| MAX. cutting length | mm | 300 | 300 | 300 | |
| tensile strength of sheet metal | N/mm2 | ≤450 | ≤450 | ≤450 | |
| shear angle | deg | 7 | 7 | 7 | |
| stroke of ram | mm | 32 | 50 | 55 | |
| stroke times | min | 10 | 12 | 15 | |
| depth of throat | mm | 175 | 175 | 220 | |
| max. capacities | mm | 26*10 | 24*12 | 28*15 | |
| main motor | kw | 3 | 3 | 4 | |
| length of machine tool | mm | 1175 | 1500 | 1640 | |
| width of machine tool | mm | 550 | 600 | 610 | |
| height of machine tool | mm | 1590 | 1650 | 1790 | |
| weight of machine tool | kg | 800 | 1055 | 1400 | |
| punching metric | mm | ||||
| max. capacities | 26*10 | 24*12 | 28*15 | ||
| max. stroke length | 32 | 50 | 55 | ||
| throat depth standard | 175 | 175 | 220 | ||
| largest hole | optional | 60 | 60 | 100 | |
| shearing | mm | ||||
| flar bar | 200*10 | 200*12 | 200*15 | ||
| alternative | 300*8 | 300*10 | 300*12 | ||
| blade length | 318 | 318 | 308 | ||
| angle flange trim | 80*10 | 80*10 | 80*10 | ||
| angle cutting | mm | ||||
| at 90d cut | 80*8 | 100*10 | 125*12 | ||
| section cutting | mm | ||||
| round/square bar | 30/25 | 30/30 | 40/35 | ||
| channel/beam | 65*40 | 80*43 | 100*48 | ||
| tee | 38*6 | 40*7 | 76*10 | ||
| notching | mm | ||||
| material thickness | 8 | 10 | |||
| width | 35 | 42 | |||
| depth vee-rect. | 60-90 | 60-90 | |||
| angle flange | 80*8 | 100*10 |
HIW Series One cylinder Hydraulic ironworker:
It's an ideal ironworker equipment for cutting angle, round, flat bar, punching, joist, as well as notching, channel, equipped with related stop device for cutting.
This kind of machine is the latest Iron Workers in our country, which adopts five-stage hydraulic transmission through repeated beam movement swing.
The whole machine is reasonable structured, light, low noise and easy to take. The tool adopts whole-structure compact designing, setting five-stage.
The fixing device can be adjusted by Helical Gear Transmission, simple and convenient.
All the components are of the highest quality in their safety, function, capability and maintenance.
