Specifications
1.MJ7115 mini surface grinding machine2.high rigidity and accuracy
3.Small size, light weight, easy operation
4.CE,ISO9001

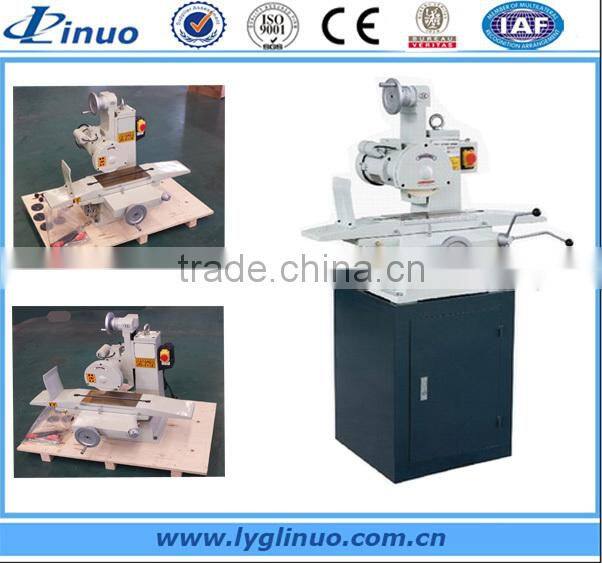

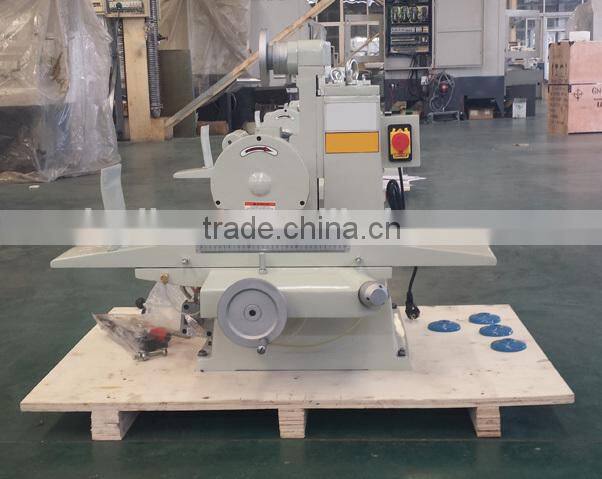

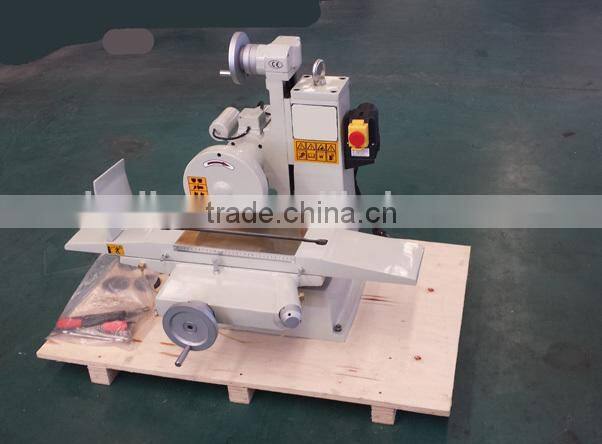

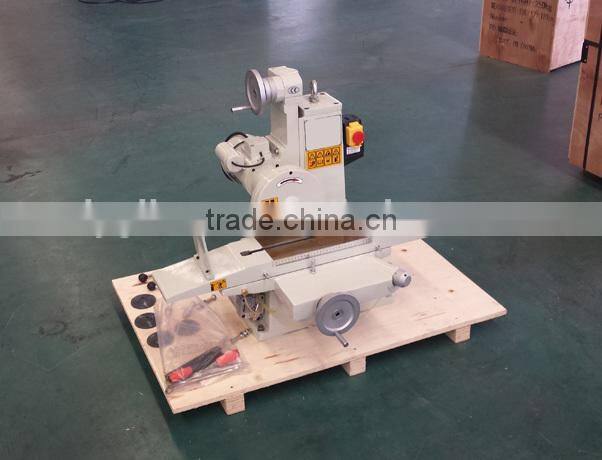

MJ7115 mini surface grinding machine
Features:
MJ7115 smalll surface grinding is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.
Main features of Mini grinding machine MJ7115 :
1)Integrated grinding head of high quality, high rigidity and accuracy.
2)Small size, light weight, easy operation & maintenance.3
3)Centralized lubrication for oil pump.
Specification and data of Mini grinding machine MJ7115
Specification |
Metric |
Inch(“) |
Longitudinal stroke |
340mm |
14 |
Cross stroke |
170mm |
7 |
Vertical stroke |
210mm |
8 |
Table size(W*L) |
152mm×304mm |
6×12 |
Width of T-slot |
1-12mm |
1-0.47 |
Cross feed per graduation |
0.02mm |
0.001 |
Cross feed per round |
2.54mm |
0.1 |
Vertical feed per graduation |
0.025mm |
0.001 |
Vertical feed per round |
1.25mm |
0.05 |
Size of grinding wheel |
180mm×32mm×13mm |
|
Motor power |
0.55kw |
|
Roughness |
1.6μm |
|
N.W. / G.W. of machine |
210/258kg |
|
N.W. / G.W. of stand |
30/54kg |
|
Overal dimensions of machine |
930×780×730mm |
|
Case dimensions of machine |
930×780×1480mm |
|
Case dimensions of stand |
720×550×550mm |
|
