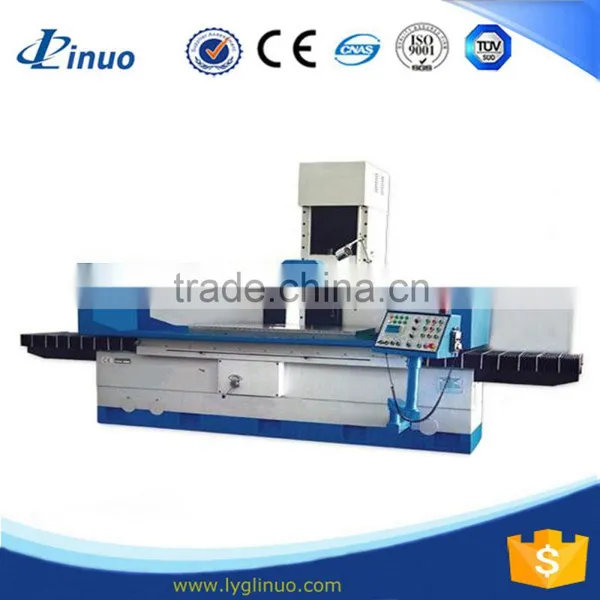

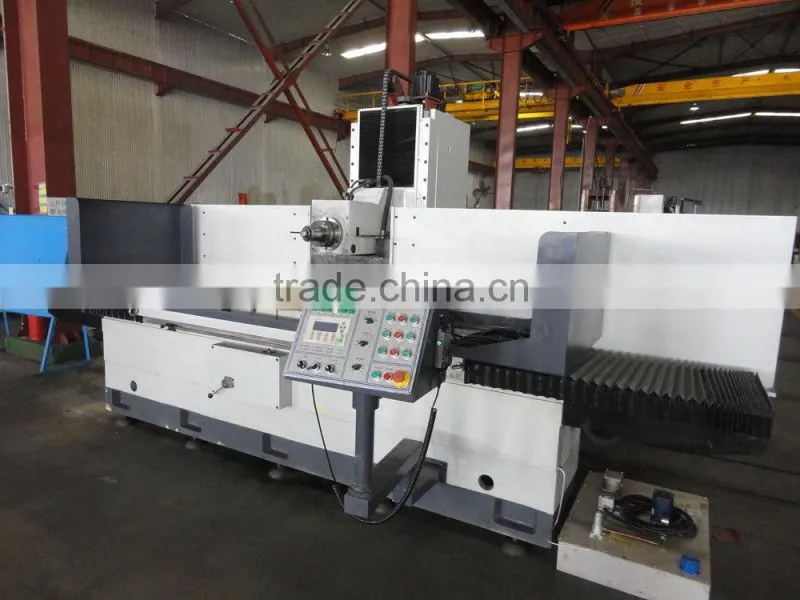

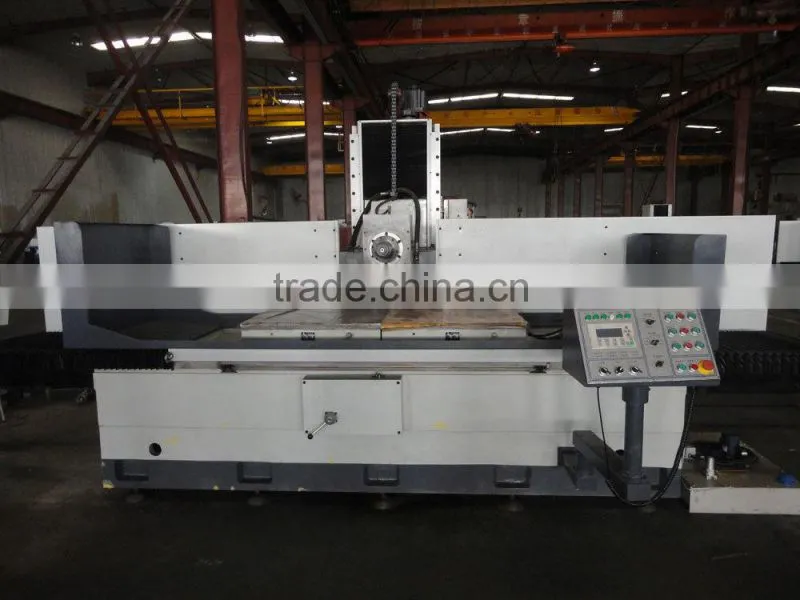

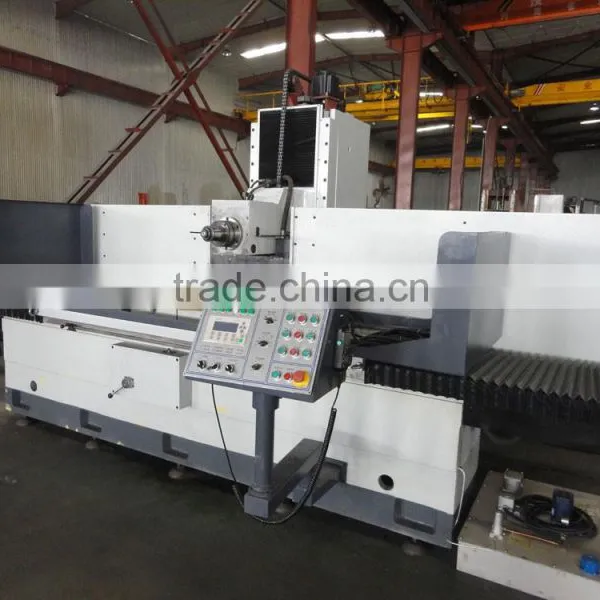

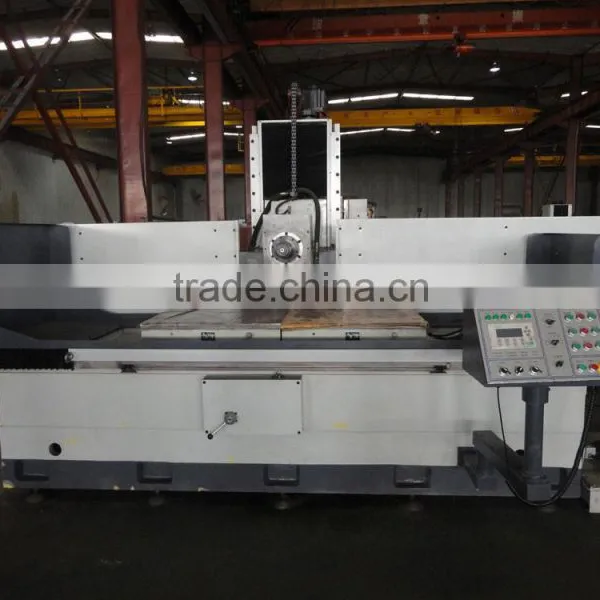

SG60160SD cnc large size Surface Grinding Machine
Features: SG60160SD cnc large size Surface Grinding Machine
PRODUCT SPECIFICATION
Standard accessories:
Coolant tank, Wheel dresser base, Flange and wheel extractor, Build in electro magnetic chuck controller, Balance stand, Working lamp, Balance arbor, Standard wheel, PLC grinding controller, CNC controller (only for CNC series machine), Leveling wedge and foundation bolt;
Optional accessories:
Electro magnetic chuck, Hydraulic parallel wheel dresser, Coolant with magnetic separator and paper filter, Coolant tank paper filter, Coolant tank with magnetic separator
SD means:

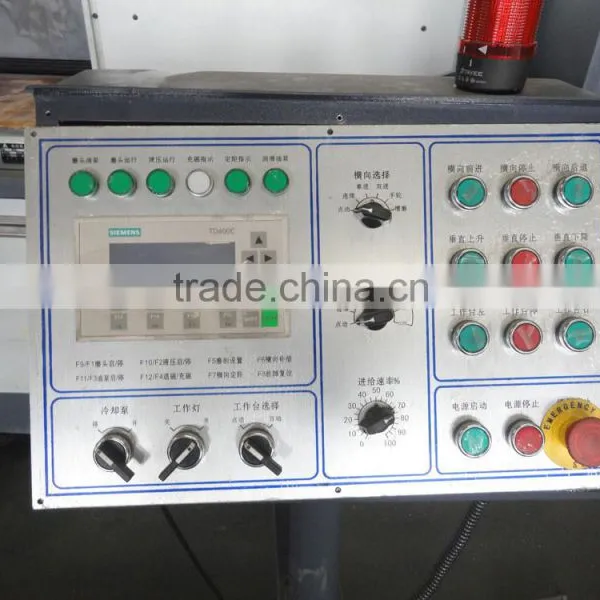

NC servo motor is used on cross and vertical movement, hydraulic drive longitudinal movement. Equiped with PLC auto grinding controller.
CNC means:
Numerical control of cross and vertical, two axes linkage, and hydraulic drive on longitudinal. Also according to customer’s request, the machine can realize 3 axes linkage by servo control of X axis.
Specification |
Unit |
SG60160SD |
SG60220SD |
SG60300SD |
SG80160SD |
SG80220SD |
SG80300SD |
|
SG60160NC |
SG60220NC |
SG60300NC |
SG80160NC |
SG80220NC |
SG80300NC |
|||
Table size |
mm |
610x1600 |
610x2200 |
610x3000 |
810x1600 |
810x2200 |
810x3000 |
|
Max. grinding (WxL) |
mm |
610x1600 |
610x2200 |
610x3000 |
810x1600 |
810x2200 |
810x3000 |
|
Max. distance from table to spindle center |
mm |
820 |
||||||
Magnetic chuck size (optional equipment) |
mm |
600x800x2 |
600x1000x2 |
600x1000x3 |
800x800x2 |
800x1000x2 |
800x1000x3 |
|
Speed of table longitudinal movement |
m/min |
5~25 |
||||||
Wheelhead cross movement |
Auto feed |
mm/t |
1~30 |
|||||
Rapid speed |
m/min |
0.05~2 |
||||||
Feed of handwheel |
mm/div |
0.005 |
||||||
Wheelhead vertical movement |
Auto feed |
mm/t |
0.005~0.05 |
|||||
Rapid speed |
mm/min |
0.05~2 |
||||||
Feed of handwheel |
|
0.005 |
||||||
Wheel |
Speed |
Rpm |
960 |
|||||
Size (ODxWxID) |
mm |
500x75x305 |
||||||
Motor of spindle |
kw |
18.5 |
||||||
Max. loading capacity of table (include chuck) |
kg |
1230 |
1690 |
2300 |
1630 |
2240 |
3060 |
|
Total rated power |
kw |
28.5 |
28.5 |
31 |
||||
Height of machine |
mm |
2700 |
|
|||||
Floor space (LxW) |
mm |
4700x3000 |
6000x3000 |
8200x3000 |
4700x3500 |
6000x3500 |
8200x3600 |
|
Gross weight |
kg |
8500 |
9500 |
12500 |
10000 |
11500 |
14000 |
|
