Specifications
1.DK7740 fast speed cnc wire cutter edm2.Wire tightening system
3.Automatic programme
4.manufacture,dealer,factory

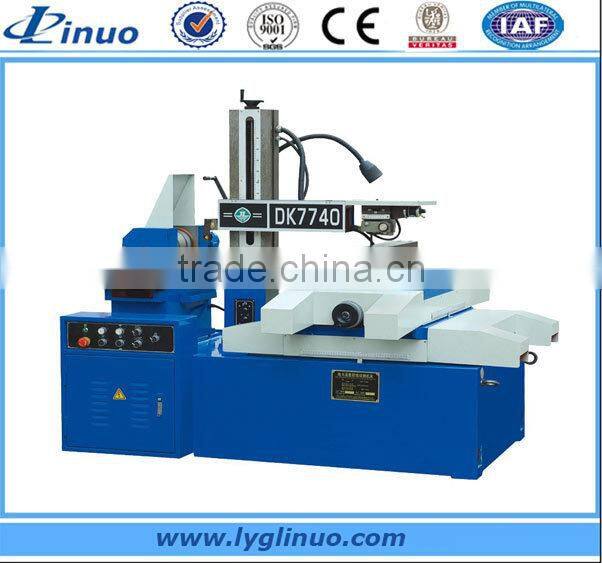

DK7740 fast speed cnc wire cutter edm
Main parameter:
Machine tool Features:
Max. feature of this serial product lies in the fact that it has no special requirements to the processed metal material properties. In principle, it can process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials, various magnet steel fragile materials, uneasily-clamped thin wall spares etc. If the machine tool gets the aid of the auxiliary extra-large specification of "Taper Cutting Device' and "Responsive Micro-Computer System" produced by this Company, then it can gain the satisfactory results in processing all kind of the special spares which terrify other machine tools.
Main Use:
It processes various molds such as rubber and plastic molds, punch die and so on.
It processes the special materials of fragile materials, stainless steel ductile materials, super-hard materials.
It processes the complex-shape spares such as the tapered upper and lower specially-shaped spares and so forth.
| Parameters/type | DK7740 |
| worktable travel(mm) | 400×500 |
| max. workpiece cutting thickness(mm) | 400 |
| worktable displacement(mm) | 4 |
| machining precision(cutting octagon)(mm) | 0.015 |
| max. cutting speed(mm²/min) | 100 |
| max. cutting taper(optional) | 6°-30° |
| worktable's max. load(kg) | 450 |
| wire electrode diameter(mm) | Φ0.12-Φ0.18 |
| wire storage cylinder dimensions(mm) | 150×200 |
| max. wire length(mm) | 320 |
| equivalent pulse(mm) | 0.001 |
| stepped motor | 90BF006 |
| wire storage cylinder motor |
AC:YS7124 370w 1400rpm DC:110SYT 185w 1500rpm |
| operation liquid pump | AB25 90w 25L/min |
| outline dimensions(mm) | 1800×1500×1400 |
| machine weight(kg) | 1600 |
| total power | 2kW AC380V/220V 50Hz |
Machine tool structural summary:
The machine tool is composed of the machine tool bed, coordinate worktable, wire drive device, wire support, operation liquid system, electric parts and accessories.

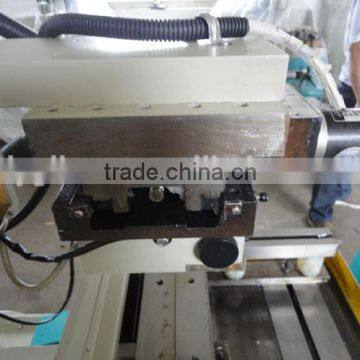

The wire electrode used for machining is wound on the wire storage cylinder evenly and its high-speed to-and-fro movement is driven through the guide wheel on the wire support.
The work piece is installed on the clamp of the worktable and is fixed with the press head screws.
The worktable drives the work piece to move in the programmed track.
There is sparkle discharge between the work piece and the wire electrode so as to create high heat to melt the corroded metal and to realize cutting purposes.
Operation liquid system:
It is used to provide the operation medium, that is, the operation liquid with certain insulation function.
At the same time, it can cool down the work piece and the wire electrode.
The water pump pumps the operation liquid for wire cutting to the machining area.
This is in favor of the sparkle discharge and the scrap discharge.
The operation liquid flows back to the operation liquid box through the water pipe and it is recycled after filtration.
The residue settles in the waste box.
The operation liquid box shall be cleared up regularly and the operation liquid shall be replaced timely.
Use the tapped water or diluted water to prepare the operation liquid according to the mixture ratio.
Our factory has more than 20 years on manufacture cnc wire cutting edm machines,you can trust our quality. Our machine's warranty is one year,we will send the part for free to you by express if the machine part is broken without by workers.
We have exported machines to many countries,like Finland,Poland,Italy,UK,Nigeria,Jordan,South Korea,Thailand,India,
Chile,Mexico,Argentina,Bolivia etc.
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
