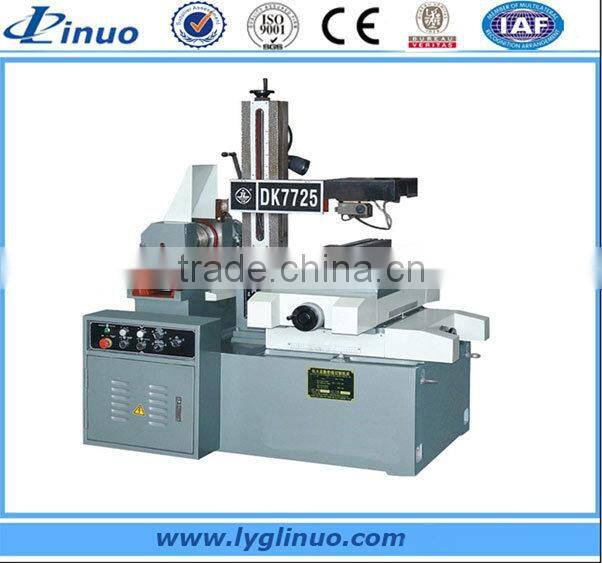

DK7725 spare parts for edm wire cut machine
Features:
Machine tool Features:
Max. feature of this serial product lies in the fact that it has no special requirements to the processed metal material properties. In principle, it can process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials, various magnet steel fragile materials, uneasily-clamped thin wall spares etc. If the machine tool gets the aid of the auxiliary extra-large specification of "Taper Cutting Device' and "Responsive Micro-Computer System" produced by this Company, then it can gain the satisfactory results in processing all kind of the special spares which terrify other machine tools.
Main Use:
It processes various molds such as rubber and plastic molds, punch die and so on.
It processes the special materials of fragile materials, stainless steel ductile materials, super-hard materials.
It processes the complex-shape spares such as the tapered upper and lower specially-shaped spares and so forth.
1.Molybdenum wire diameter 0.12~0.25 mm (down to 0 .08mm).
2.Accuracy: 0.01-0.015mm.
3.Roughness: Ra 1.6-2.5 µm.
4.Low consumption, material saving.
5.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
6.Advanced CAD/CAM software with file transfer and translation capabilities.
7.High cutting speed modular is optional.
| Model | DK7720 | DK7725 | DK7732 | DK7735 |
| Worktable Size(mm) | 270*420 | 340*520 | 380*600 | 380*650 |
| Worktable Travel(mm) | 200*250 | 250*320 | 320*400 | 350*450 |
| Maximum work piece cutting thickness(mm) | 300 | 400 | 400 | 400 |
| Machining precision(cutting octagon)mm | 0.015 | 0.015 | 0.015 | 0.01-0.015 |
| Maximum cutting speed(mm²/min) | 100 | 100 | 100 | 100 |
| Maximum cutting taper(°/80mm) | 6° | 6° | 6° ,15° | 6° ,15° |
| Programming and Controlling | HL,HF,AUTOCUT | HL,HF,AUTOCUT | HL,HF,AUTOCUT | HL,HF,AUTOCUT |
| Motor | Step Motor (X/Y,U/V) | Step Motor (X/Y,U/V) | Step Motor (X/Y,U/V) | Step Motor (X/Y,U/V) |
| Worktable’s maximum load(kg) | 100 | 200 | 300 | 300 |
| Wire electrode diameter(mm) | 0.18 | 0.18 | 0.18 | 0.18 |
| Machine tool body’s outline dimensions(mm) | 1160*880*1400 | 1485*1010*1700 | 1750*1250*2000 | 1650*1300*1800 |
| Machine tool’s weight(kg) | 800 | 1200 | 1400 | 1400 |
| Machine tool’s total power(kw) | 2kw | 2kw | 2kw | 2kw |
| Voltage supply | 3ph 380V 50Hz | 3ph 380V 50Hz | 3ph 380V 50Hz | 3ph 380V 50Hz |
Our factory has more than 20 years on manufacture cnc wire cutting edm machines,you can trust our quality. Our machine's warranty is one year,we will send the part for free to you by express if the machine part is broken without by workers.
We have exported machines to many countries,like Finland,Poland,Italy,UK,Nigeria,Jordan,South Korea,Thailand,India,
Chile,Mexico,Argentina,Bolivia etc.
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
