Z5040/1 Pillar Drilling Machine

Name: Z5040/1 Pillar Drilling Machine
Brand: Linuo
SKU: 114834683

US$ 800 - 1,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

80-1250 r.p.m

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 80-1250 r.p.m

Place of Origin Jiangsu, China

Brand Name Linuo

Model Number Z5040/1

Voltage 380V

Power(W) 1.1KW

Dimension(L*W*H) 1850*750*1000mm

Weight 440KG

Certification CE,ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Z5040/1 Pillar drilling machine
2. Drilling capacity:40mm
3. Spindle travel:130mm
4.CE

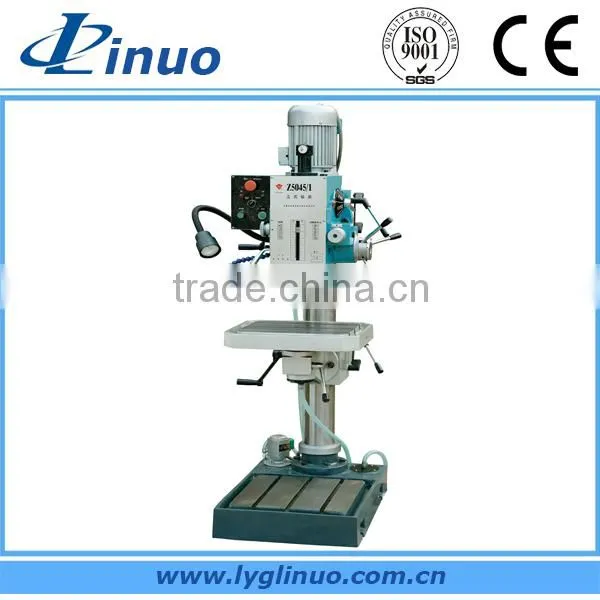

Z5040/1 Pillar drilling machine

Features:

Technical Data

SPECIFICATION
ITEM	Z5032/1	Z5040/1	Z5045/1

Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min.distance from spindle axis to column	290mm	290mm	290mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Max.travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/487kg	442kg/492kg	442kg/492kg
Packing size	1850×750×1000mm	1850×750×1000mm	1850×750×1000mm
Loading amount	18pcs/20'container	18pcs/20'container	18pcs/20'container
