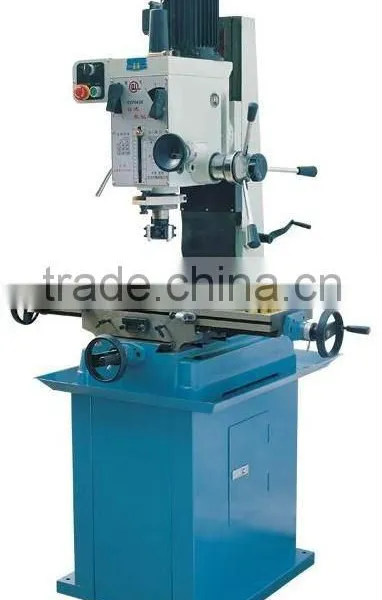

ZX7045 drilling and milling machine

Specifications

1. Gear drive for strong operation;
2. Square column guarantee high accuracy;
3. Cross table for 4 directions movement.

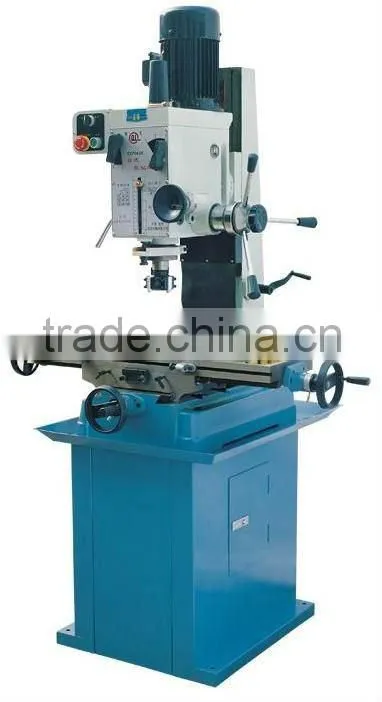

ZX7045 drilling and milling machine



Features:





The machine tool applies to diameter within 45mm of drilling, boring and reaming on non-ferrous metal, and diameter of screw within 12mm. Its max width of face milling can be 80mm and diameter of vertical milling can be 22mm. The machine tool apply cutting operation of single or mass parts, it has good performance, easy operation, and stronger power than belt drive.



Max drilling capacity	45mm
Max width of face milling	80mm
Max tapping capacity	12mm
Diameter of vertical milling	28mm
Spindle travel	120mm
Spindle taper	MT.4
Spindle speeds	65,120,190,370,670,1380r/min
Distance from spindle nose to worktable	475mm
Distance from spindle axis to column surface	270mm
Worktable size	820x240mm
Travel of worktable (LXW)	550x180mm
Motor power	1100W, 910r/min
Outline dimension (LXWXH)	114x76x104cm
N.W./G.W.	320/370KG
Ship measurement	1030x980x1230mm
Loading amount	10PCS/20’container



Standard accessories:

1. Drill bit; 2. Face milling cutter;3. Splicing sleeve of Taper shank; 4. Drift;5. Dual spanner; 6. Inner hexagon spanner; 7. Drawbar;8. Handle for headstock elevation;9. Splicing sleeve of Taper shank;10. Splicing sleeve of Morse taper;11. Machine stand.
