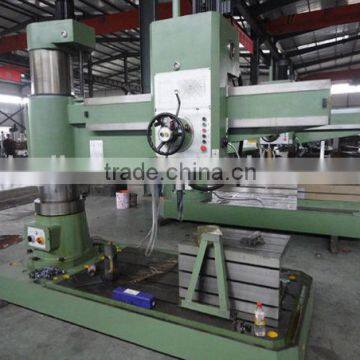

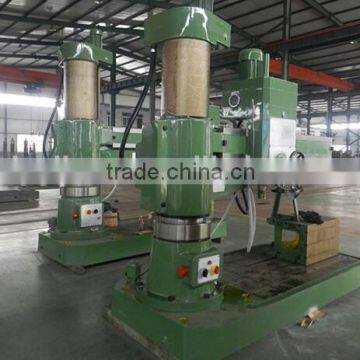

max dill 50mm radial drilling machine
Product Description for max dill 50mm radial drilling machine
FEATURES:
1. Using the hydraulic gear-change structure can save subsidiary time.
2. The forward rotating of spindle, stop (brake), shift and neutral-gear ect. are all controlled by a single handle, which is very convenient for operation.
3. The clamp structures of headstock, radial arm and internal and external column are controlled by hydraulic-driven rhombic block, which is very dependable.
4. The machine has sound and safety protective installation and external column.
5. We take lines of efficient measures during the structure design and manufacture of this machine to ensure a durable accuracy and longevity of the machine.
6. The electric equipment of this type of machine can make sure the safety of human life; what’s more, it is dependable, durable and easy to maintain.
Max drilling capacity |
50mm |
Distance from spindle axis to column |
350-1600mm |
Distance from spindle nose to base surface |
320-1220mm |
Headstock horizontal travel |
1250mm |
Vertical travel of radial arm |
580mm |
Speed of arm elevation |
1.2m/min |
Rotating angle of radial arm |
360 degrees |
External diameter of column |
350mm |
Taper of spindle |
MT.5 |
Spindle speeds range |
25~2000r/min |
Spindle speeds |
16 steps |
Spindle feeds range |
0.04~3.2mm/r, 16 |
Spindle travel |
315mm |
Drilling depth of per round of dial |
122mm |
Max feed-resistance of spindle |
18Kn |
Max allowable torque of spindle |
500Nm |
Main motor power |
4KW |
Motor power of arm elevation |
1.5KW |
Motor power of hydraulic clamp |
0.75KW |
Motor power of coolant pump |
0.125KW |
N.W. /G.W. |
3600/3850kg |
Size (L*W*H) |
2500X1040X2650mm |
Ship measurement |
2750X1140X2550mm |
Loading amount |
6 PCS/40HQ |

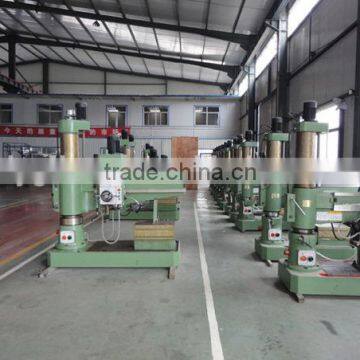

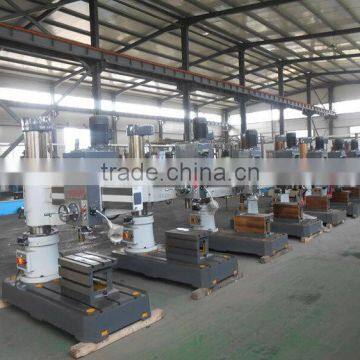

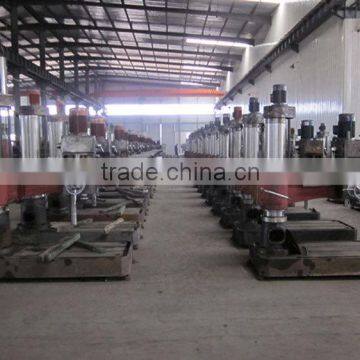

Production&Workshop for max dill 50mm radial drilling machine
Packaging&Shipping for max dill 50mm radial drilling machine
Customer&Expo for max dill 50mm radial drilling machine
Companny information for max dill 50mm radial drilling machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for max dill 50mm radial drilling machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
