Home > Construction & Decoration > Lock > Door Lock > Easy Install Electromagnetic Lock for Access Control System ( NE-280S )

Easy Install Electromagnetic Lock for Access Control System ( NE-280S )

Name: Easy Install Electromagnetic Lock for Access Control System ( NE-280S )
Brand: Nordson
SKU: 114832899
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Nordson

Model Number:

NE-280S

Nordson (Shenzhen) Electronic Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Nordson

Model Number NE-280S

Easy install electromagnetic lock for access control system

( NE-280S )

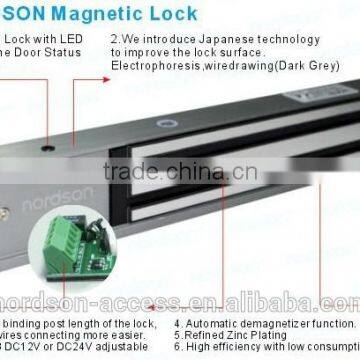

Hot selling point for Easy install electromagnetic lock NE-280S

1. with LED indicates status;

2. introduce Japanese Tech;

3. voltage adjustable;

4. Silver & Grey satin support;

5. Easy install with screw mounted;

6. IP65, totally waterproof customized.

7. Suit for multi doors.

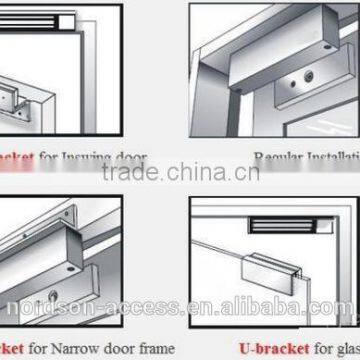

NOTE: IP65 Waterproof & easy install hole screw, bracket for installing should be customized in advance.

Item Specifics for Easy install electromagnetic lock NE-280S

Lock Size	250Lx48Wx25H(mm)
Armature plate	180Lx38Wx11H(mm)
Holding Force	280kg (600Lbs)
Voltage	DC12V or DC24V (adjustable)
Current Draw	12V/500mA 24V/250mA
Signal Output	Dry Contact
Max Rating of Contact Current	3A
Time	0/3/6/9sec
Surface Temp.	≤+20°C
Operating Temp.	-10~+55°C(14-131F)
Suitable Humidity	0~90%(non-comdensing)
Finishes for Shell	Anodized alninum
Finishes for Magnetic	Zinc
Finishes for Armature	Zinc
Weight	2kg
Standard Packing	12pcs./carton
Suitable For	Wooden door,Glass door,Metal door,Fireproof door
