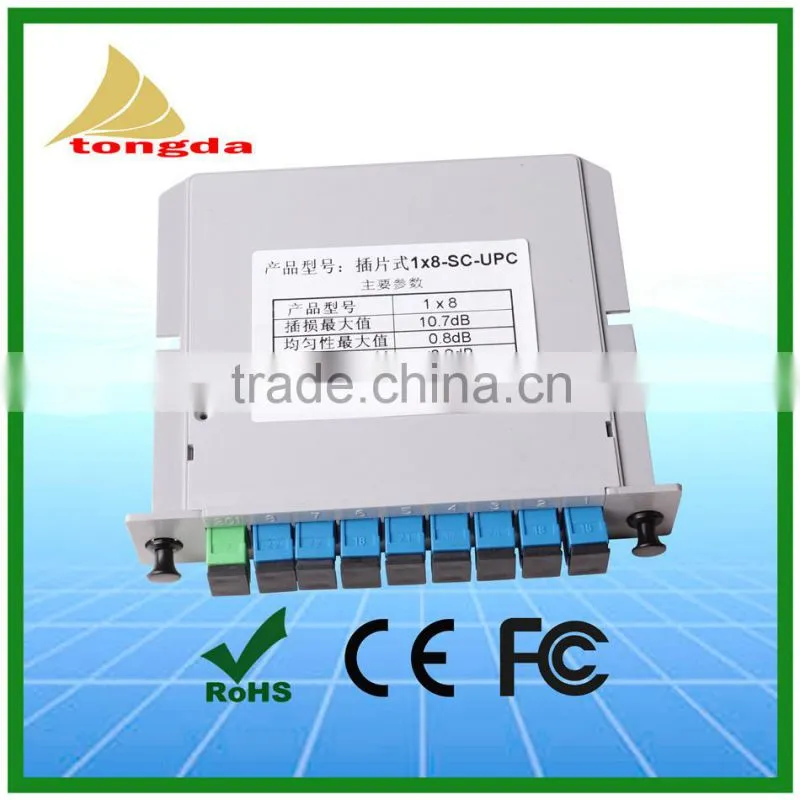

1*8 Fiber Optical PLC Splitter SC/UPC APC With Insert Type

Name: 1*8 Fiber Optical PLC Splitter SC/UPC APC With Insert Type
Brand: Atongda
Availability: InStock

FOB Price

USD $8 - $21 / Pair

10 Pairs(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen Yantian

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Atongda
Model Number	ATD- PLC1x8

Product Description

1*8 Fiber Optical PLC Splitter SC/UPC APC With Insert Type

Description: PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Atongda PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Applications:

-FTTx Systems

-LAN,WAN and Metro Networks

-Analog/Digital Passive Optical Networks

-CATV Networks

-Test Equipment

-Other applications in fiberoptic systems

FEATURE

Good durability

Good exchangeability

High temperature stability

Low insertion loss

Available in 1*N & 2*N configuration

Compact size

RoHS compliant

Model number	1x2	1x4	1x8	1x16		1x32	1x64
wavelength	1260-1650
Fiber model	G657A or decided by customer
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5		13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity(dB)	0.4	0.6	0.8		1.2	1.5	2.0
Return Loss(dB)	55/50	55/50	55/50		55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2		0.25	0.3	0.35
Directionality(dB)	55	55	55		55	55	55
Wavelength dependent loss(dB)	0.3	0.3	0.3		0.5	0.5	0.5
temperature stability (-40~85 ℃)(dB)	0.4	0.4	0.4		0.5	0.5	0.5
Model connector	SC,FC,ST decided by customer
Operating temperature(℃)	-40~85
Storage temperature(℃)	-40~85
