Specifications
Stretch film making machine:1.Auto loader stretch film machine
2.Auto-cutter and winding
3.Stable running machine

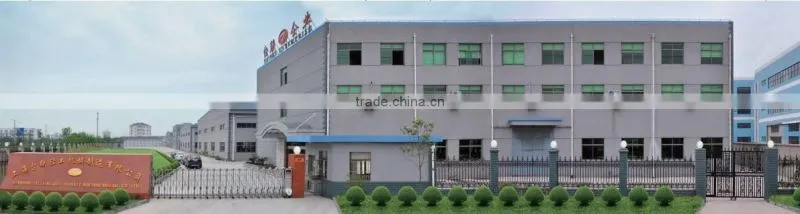

Shanghai Tailian Plastic Machinery Manufacturing Co.,LTD, It is a professional enterprise specialized in plastic machinery designing and manufacturing. Since the very beginning of our establishment, we have always taken customer-oriented as our management philosophy. And continuous sound growth makes us striding to well-professional. In the process of growth we never stop continuous efforts in technology innovation and pioneering. Advanced technology and scientific management make our products the best in terms of quality, function, price and after-sales service before sales among this field. Mean while we has spared no effort in technology research and development, so as to a never-stop new products series. At the same time, we often keep closely relationship with our customers to ensure that products and services closer to the market requirements for the timely provision of customers.
Now, Tailian Corporation has been well-developing with abundant funds, professional and technical personnel, well-equipped and large production base. And we have developed a number of patented technologies; meanwhile we can supply the very products according to the customers requirements as well as offer special facilities and training. Our products have a very mature market both home and aboard
two layer co-extrusion stretch film making machine
Equipment introduction:
These series are mainly used to produce one-way stretch PE film (stretch film, wrapping film. The production of the film has viscosity on one side or both sides which can be widely used in packaging of building materials, hardware accessories, etc. The screw and its canister are made of 38 Al-Cr-Mo alloy and nitrogen processed. They are of high hardness, strong erosion resistance and endurance. Advanced automatic control system for temperature control, T type die adopts multi-point adjustment, so that ensures a more uniform thickness of membrane material. Recycled water cooling device supplies good cooling effect. Rolling device adopts the friction-type winding, and equipped with edge-cutting devices and remaining recycle device makes the film rolled more neatly
Outstanding Features of TL Stretch Film Machine:
1) Higher output with stable quality stretch film,superior than the same suppliers more than 30%.
2) Higher speed with good ideal tensil and anti-pricking stretch film, which make sure the machine make big output.
3) Good water cooling effect and imported die steel to ensure making even and good ductility stretch film.
4) Swing system installed to adjust the film thickness and evenness.
5) The alloy screw adopts special mixing function and high plasticizing design which combine import static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.
6) PLC controlled,fully automatic.
| main technical parameters | |||||
| Model | 1000mm | 1000mm | 1500mm | 1500mm | 2000mm |
| Screw diameter | 70/90mm | 55/70/90mm | 70/100mm | 70/70/100mm | 70/90/110mm |
| L/D ratio of screw | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Width of die head | 1250mm | 1250mm | 1800mm | 1800mm | 2300mm |
| Width of finished products | 1000(500×2rolls)mm | 1000(500×2rolls)mm | 1500(500×3rolls)mm | 1500(500×3rolls)mm | 2000(500×4rolls)mm |
| Thickness of finished products | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm |
| Structure of film layers | A/B,A/B/A | A/B/C,A/C/B/C/A | A/B,A/B/A | A/B/C,A/C/B/C/A | A/B/C,A/C/B/C/A |
| Max output | 220kg / h | 240kg / h | 280kg / h | 350kg / h | 500kg / h |
| Linear speed of machinery | 160mm/min | 160mm/min | 190mm/min | 190mm/min | 250mm/min |
| Total power | 140kw | 170kw | 230kw | 280kw | 320kw |
| Overall dimensions(L*W*H) | 12*5*4.5m | 12*7*4.5m | 14*6.5*5m | 14*8*5m | 17*9*5m |
| Weight(about) | 13T | 15T | 17T | 20T | 25T |
