1500mm Two Layers Co-Extrusion Stretch Film Machine
US$ 9,000 - 55,700
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Layers Co-extrusion Stretch Film MachineUS$ 8,000 - 50,000MOQ: 1 Set -
1000-type Double Layers Stretch Film MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Double Layers Extruding Film Casting MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
1000 Type Single or Double Layers Strech Film MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Three Layers Co-extrusion Stretch Film MachineUS$ 43,000 - 58,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
200KW
Place of Origin
Shanghai, China
Brand Name
TL
Model Number
TL-1500
Dimension(L*W*H)
9000mm*2500mm*2300mm
Weight
7600 KGS

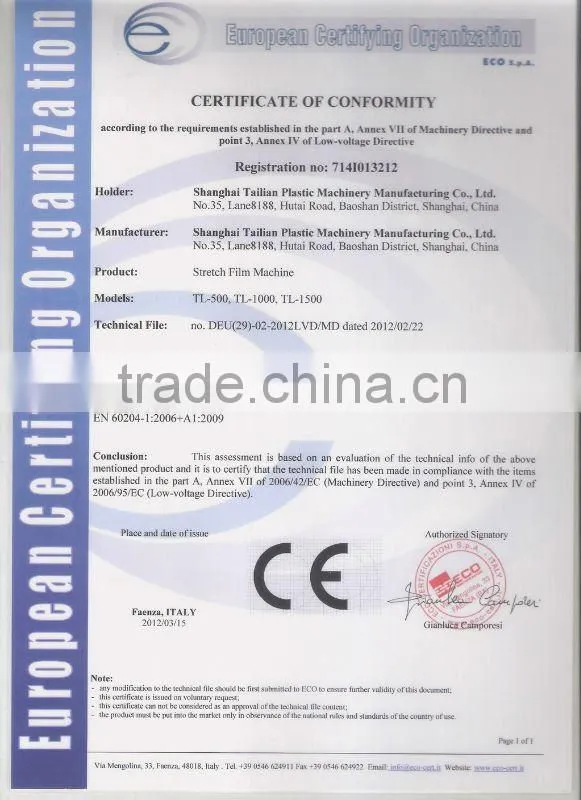

Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1500mm two layers Co-Extrusion Stretch Film Machine1.Auto Loader
2.Automatic configuration
3.Air Compressor
1500mm two layers Co-Extrusion Stretch Film Machine
1.Auto Loader
2.Automatic configuration
3.Air Compressor
4.Cooling Tower
5.Dryer
| Main features | ||||||||||||||||||||||||||||||||||||
| 1,adopts advanced technology with timing improvement. 2,Full-frequency conversion control and stable operation, high efficiency, low energy consumption 3,stretch film produced in one process 4,applicable to producing Double-sided sticky stretch film 5,remainings can be recycling | ||||||||||||||||||||||||||||||||||||
|
Equipment introduction These series are mainly used to produce one-way stretch PE film (stretch film, wrapping film), and fresh-keeping Film. The production of the film has viscosity on one side or both sides which can be widely used in packaging of building materials, hardware accessories, etc. The screw and its canister are made of 38 Al-Cr-Mo alloy and nitrogen processed. They are of high hardness, strong erosion resistance and endurance. Advanced automatic control system for temperature control, T type die adopts multi-point adjustment, so that ensures a more uniform thickness of membrane material. Recycled water cooling device supplies good cooling effect. Rolling device adopts the friction-type winding, and equipped with edge-cutting devices and remaining recycle device makes the film rolled more neatly. | ||||||||||||||||||||||||||||||||||||
|

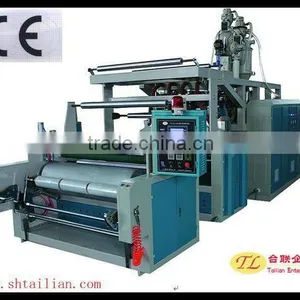

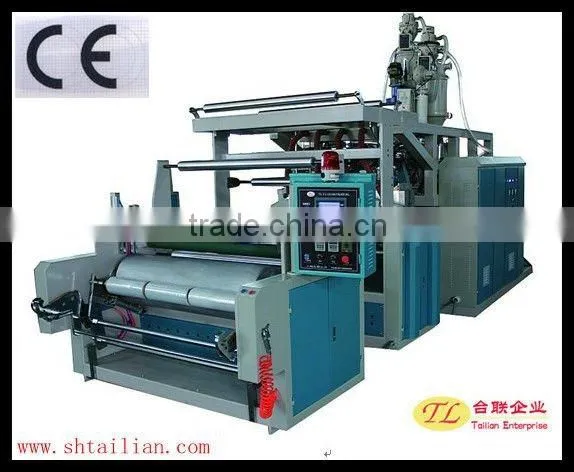

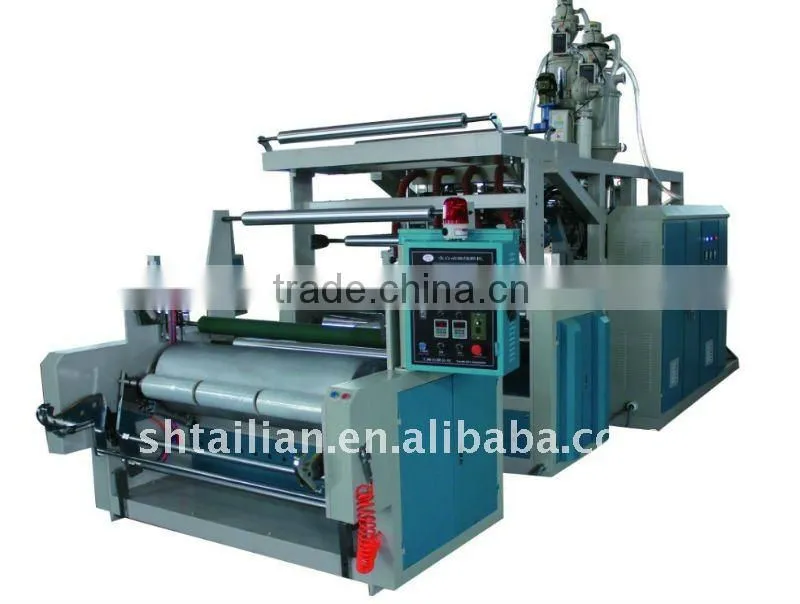

Machine Picture:
---------------------------------
