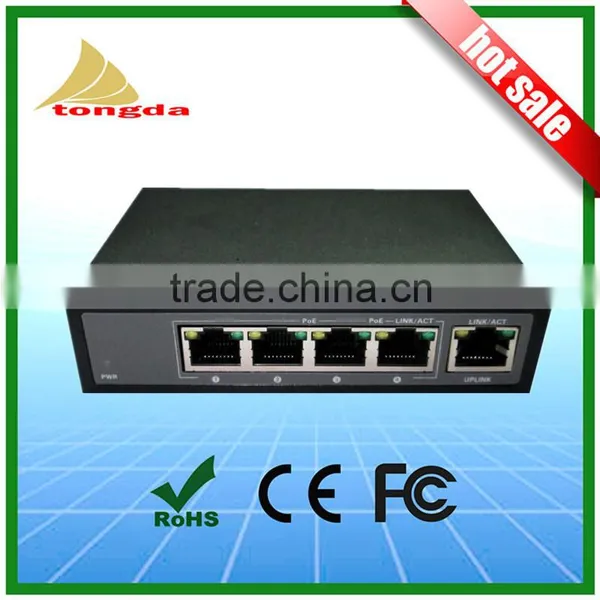

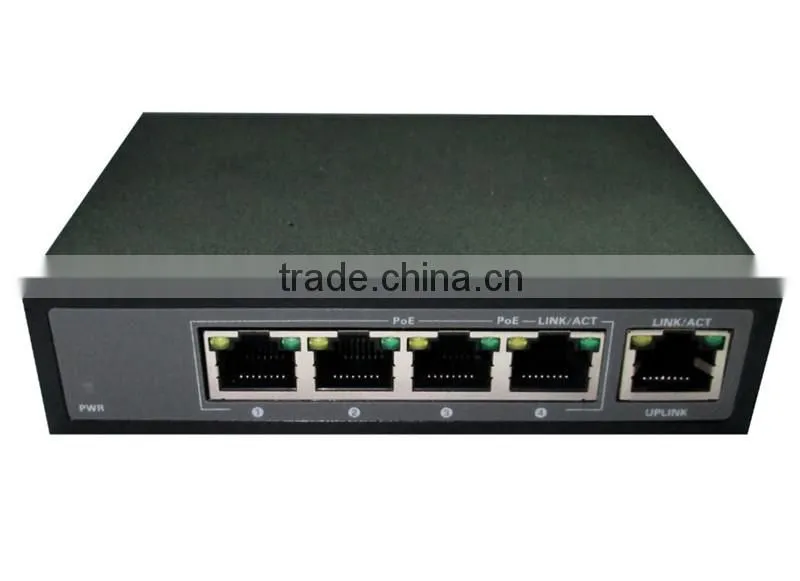

60W 5 Port10/100Mbps PoE Switch 48V for IP camera
The PoE Switch ATD-P1004E provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The nine Fast Ethernet ports can be used for any 10/100 Mbps link and four of 1-8 port can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ATD-P1004E automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.
The affordably priced PoE Switch ATD-P1004E delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch ATD-P1004E is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.
Product features:
IEEE 802.3af power on up to 5 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
9 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 60W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch ATD-P1004E with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Specifications:
Hardware | |
Standard |
IEEE 802.3 10Base-T |
Ports |
4x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports |
Data Transfer Rate |
Ethernet: 10/100 Mbps (Half / Full Duplex) |
Forwarding Rate |
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps |
Data RAM Buffer |
96 K bytes |
Power |
100-240 V, 50/60 Hz, 1.5A |
Diagnostic LEDs |
Power, PoE, Link / Activity |
Power Consumption |
Min: 8 Watts (standby) Max: 72 Watts PoE Max: 60 Watts (4 x 15 watts PoE devices connected |
Temperature |
Operating: -20° ~ 70°C Storage: -20° ~ 90°C |
Humidity |
Max 90% (non-condensing) |
Weight |
0.85 kg |
PoE | |
Power over Ethernet |
Up to 15.4 watts for PoE |
