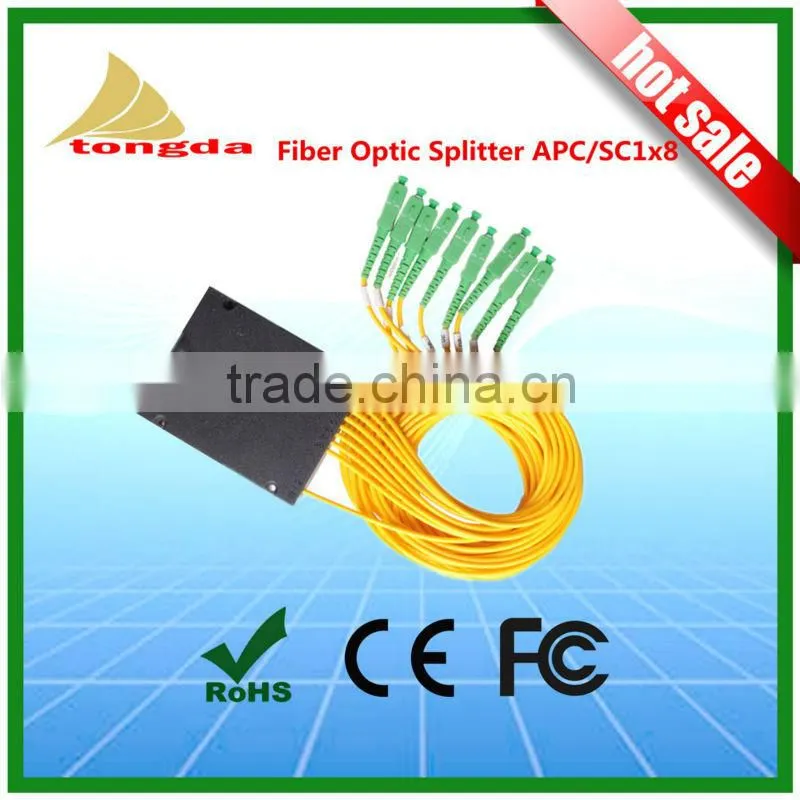

Fiber optic PLC Splitter 1*8 in ABS Box
- 10000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card
-
ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
-
ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
-
ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
-
ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
-
ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
-
ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | ATD- Plc Splitter 1x8 |
Product Description

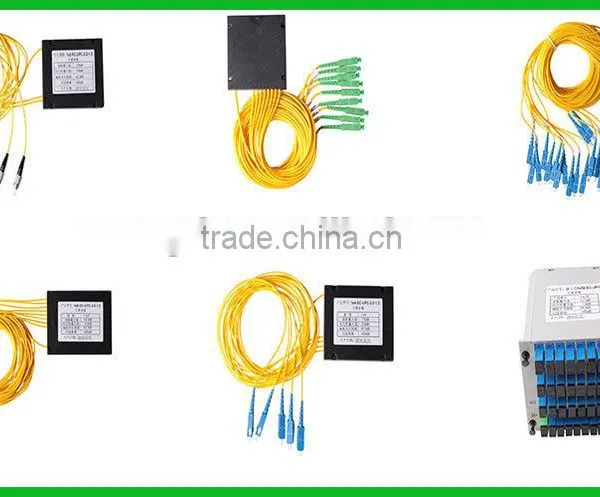

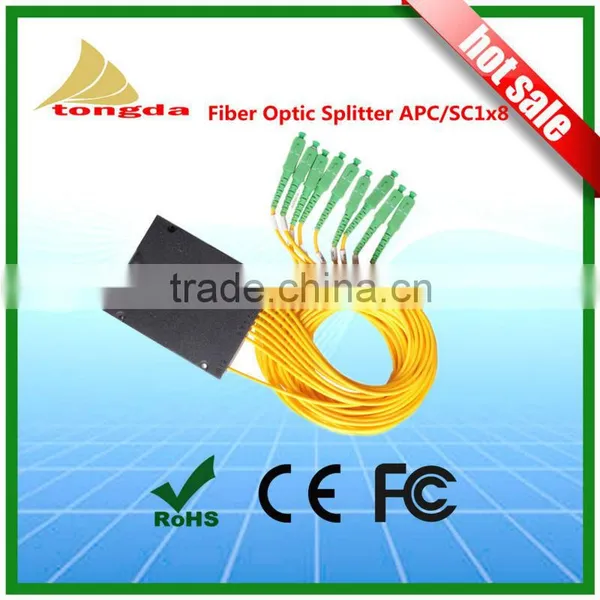

Factory Fiber optic PLC Splitter 1*8 in ABS Box
PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Atongda PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Applications:
-FTTH,FTTB,FTTX Systems
-LAN,WAN and Metro Networks
-Analog/Digital Passive Optical Networks
-CATV Networks
-Test Equipment
-Other applications in fiberoptic systems
Dada Sheet
1×8 Single Mode PLC Splitter Data Sheet
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2015/8/3 | ||||
| P/N: | 1x8-way Splitter | S/N | 150803077 | ||||
| Fiber Type | G.657A with 0.9mm loose tube | Fiber Length(m) | ≥0.6 | ||||
| Connector Type | SC APC | Package Dimension(mm) | 60×7×4 | ||||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX 10.5 | MAX 0.2 | >55 | ||||
| Port1 | 10.03 | 10.27 | 0.03 | 0.04 | Pass | Pass | |
| Port2 | 10.30 | 10.21 | 0.03 | 0.03 | Pass | Pass | |
| Port3 | 10.31 | 10.02 | 0.03 | 0.03 | Pass | Pass | |
| Port4 | 10.08 | 10.19 | 0.03 | 0.03 | Pass | Pass | |
| Port5 | 10.00 | 10.31 | 0.03 | 0.04 | Pass | Pass | |
| Port6 | 10.34 | 10.11 | 0.02 | 0.04 | Pass | Pass | |
| Port7 | 10.15 | 10.36 | 0.03 | 0.04 | Pass | Pass | |
| Port8 | 10.04 | 10.16 | 0.03 | 0.04 | Pass | Pass | |
| Input | |||||||
| MAX. | 10.34 | 10.36 | 0.03 | 0.04 | N/A | ||
| MIN. | 10.00 | 10.02 | 0.02 | 0.03 | N/A | ||
| Average | 10.16 | 10.20 | 0.03 | 0.03 | N/A | ||
| Uniformity(≤0.8dB) | 0.34 | 0.34 | Directivity(dB) | >55 | |||
| 1×4 Single Mode PLC Splitter Data Sheet | |||||||
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2015/8/3 | ||||
| P/N: | 1x4--SC-UPC | Operating Temperature | 150803301 | ||||
| Fiber Type | G.657A with 0.9mm loose tube | Fiber Length(m) | ≥0.5 | ||||
| Connector Type | SC/UPC | Package Dimension(mm) | 60×7×4 | ||||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX7.3 | MAX 0.2 | ≥55 | ||||
| Port1 | 7.01 | 7.08 | 0.03 | 0.02 | Pass | Pass | |
| Port2 | 7.10 | 7.10 | 0.03 | 0.02 | Pass | Pass | |
| Port3 | 7.04 | 7.07 | 0.03 | 0.03 | Pass | Pass | |
| Port4 | 7.04 | 7.02 | 0.03 | 0.02 | Pass | Pass | |
| Input | N/A | ||||||
| MAX. | 7.10 | 7.10 | 0.03 | 0.03 | N/A | ||
| MIN. | 7.01 | 7.02 | 0.03 | 0.02 | N/A | ||
| Average | 7.05 | 7.07 | 0.03 | 0.02 | N/A | ||
| Uniformity(≤0.6dB) | 0.09 | 0.08 | Directivity(dB) | ≥55 | |||
System Design

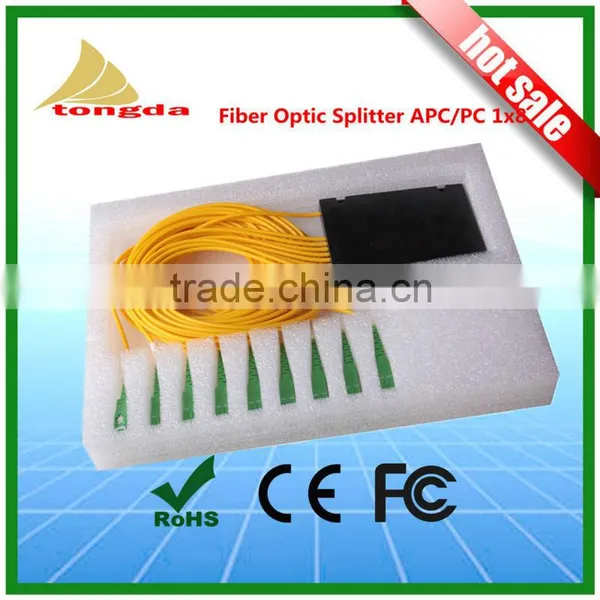

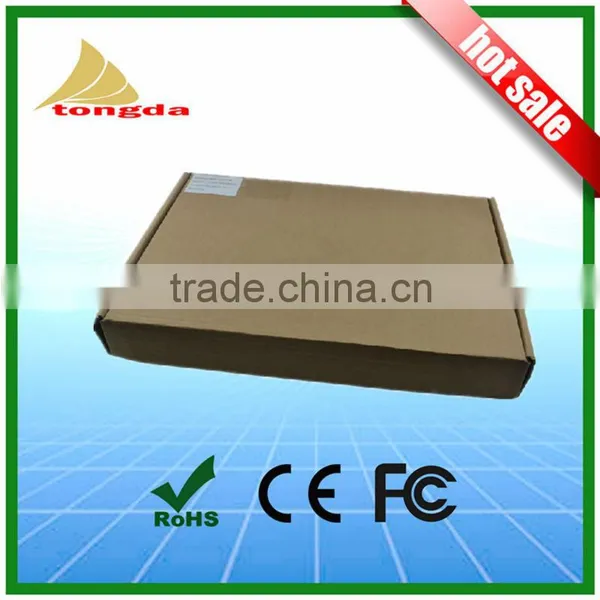

Three PCS in a carton. size 60x7x4
1.What is your MOQ?
Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'll calculate cost correspondingly.
2.Can I get samples?
Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your account. If not,
you can pay it by Western Union
3.How long is sample & production leadtime?
A.Sample leadtime: 1-2 days,after confirmed your payment.
B.Production leadtime:1-2 days,after confirmed sample & payment.
5.Do you accept OEM or ODM?
Yes,we're factory. And we have our own Engineering Department. You just need to send us your requirements.
