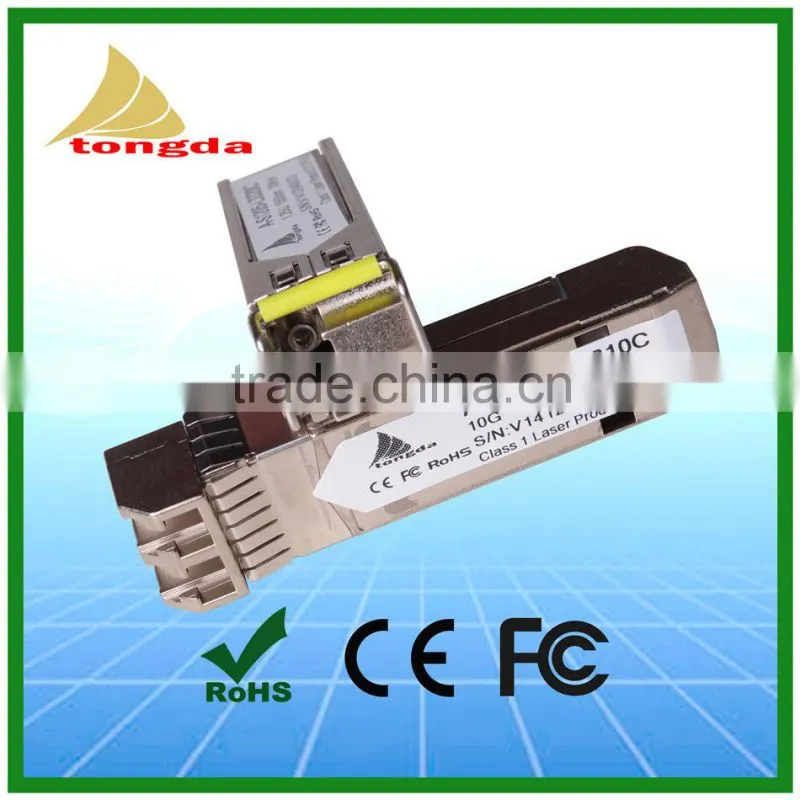

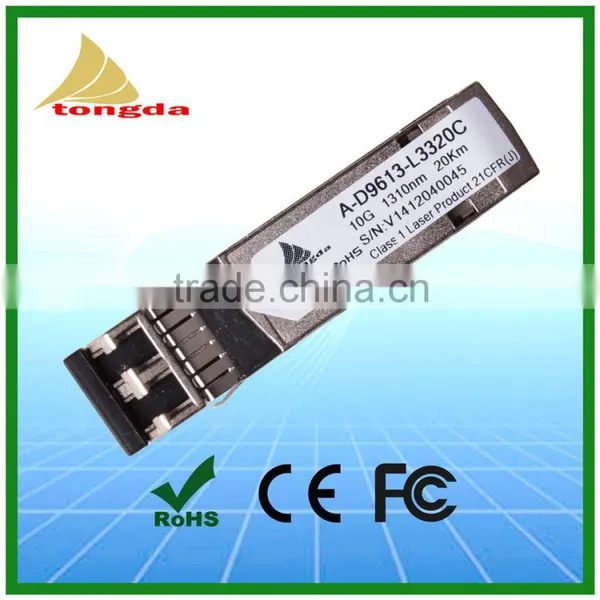

10G SFP+ BIDI transceiver (SFP plus) 10G SFP+ Singlemode 1270/1330nm 20km Optical transceiver
Specifications
10Gb/s BIDI SFP+ 20km Transceiver
1, FEATURES
l Up to 11.1Gbps Data Links
l Up to 20km transmission on SMF
l Power dissipation<1.5W
l 2-wire interface with integrated Digital Diagnostic monitoring
l EEPROM with Serial ID Functionality
l Hot-pluggable SFP+ footprint
l Compliant with SFP+ MSA with LC connector
l Single + 3.3V Power Supply
l Case operating temperature: 0ºC ~+70ºC
2,Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Storage Temperature |
Ts |
-40 |
- |
85 |
ºC |
|
Storage Ambient Humidity |
HA |
5 |
- |
95 |
% |
|
Operating Relative Humidity |
RH |
- |
- |
85 |
% |
|
Power Supply Voltage |
VCC |
-0.3 |
- |
4 |
V |
|
Signal Input Voltage |
|
Vcc-0.3 |
- |
Vcc+0.3 |
V |
|
3, Operating Environments
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Case Operating Temperature |
Tcase |
0 |
- |
70 |
ºC |
Without air flow |
Power Supply Voltage |
VCC |
3.14 |
3.3 |
3.47 |
V |
|
Power Supply Current |
ICC |
- |
|
350 |
mA |
|
Data Rate |
BR |
|
10.3125 |
|
Gbps |
|
Transmission Distance |
TD |
|
- |
20 |
km |
|
Coupled fiber |
Single mode fiber |
9/125um SMF
|
||||
