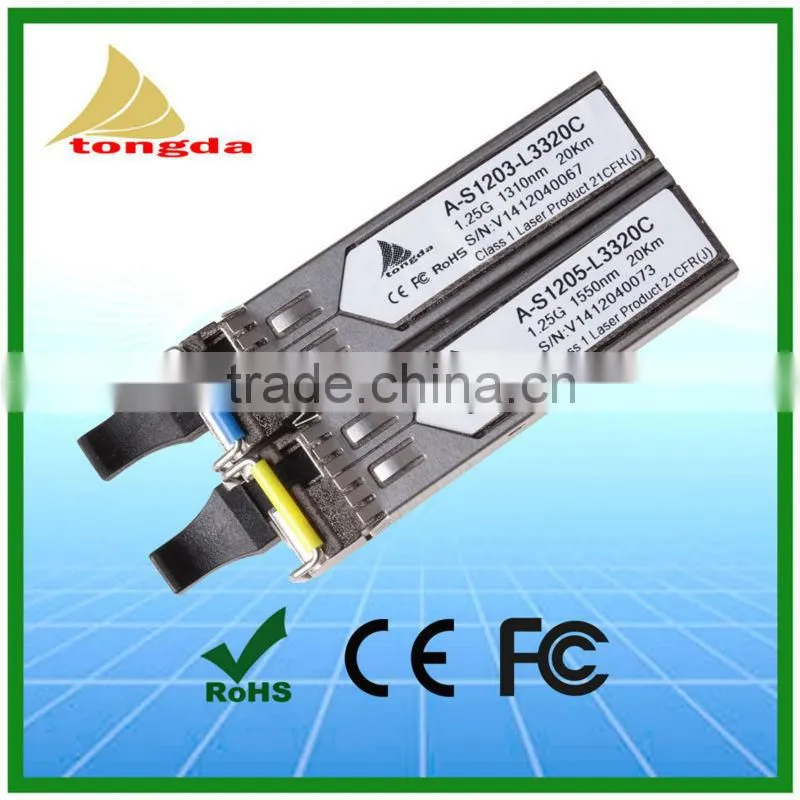

China SFP Transceiver 20KM fiber transceiver single mode BIDI sfp 1310nm / 1550nm
1. Feat ure:
- SFP package with LC connector
- 1310nm FP laser and PIN photo detector
- Up to 20Km transmission on SMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- Laser safety standard IEC-60825 compliant
- Compatible with RoHS
- Digital Diagnostic SFF-8472 compliant
2. Application:
- Ethernet
- Telecom
- Fiber Channel
3. Absolute Maximum Ratings:
Parameter |
Symbol |
Minimum |
Maximum |
Units |
Storage Temperature |
Tst |
-40 |
+85 |
℃ |
Supply Voltage |
Vcc |
0 |
+3.6 |
V |
Operating Relative Humidity |
RH |
5 |
95 |
% |
- 4. Operation Environment:
Parameter |
Symbol |
Min |
Typical |
Max |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.3 |
3.45 |
V |
|
Operating Case Temperature |
Commercial |
Tc |
0 |
|
+70 |
℃ |
Industrial |
-40 |
|
+85 |
|||
Power Dissipation |
|
|
|
1 |
W |
|
Data Rate |
|
|
155 |
|
Mbps |
|
5. Optical Characteristics:
(Ambient Operating Temperature 0℃ to +70℃, Vcc =3.3 V)
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Transmitter Section | |||||
Center Wavelength |
lo |
1260 |
1310 |
1360 |
nm |
Spectral Width(RMS) |
Dl |
- |
- |
4 |
nm |
Average Output Power |
Po |
-15 |
- |
-3 |
dBm |
Extinction Ratio |
Er |
12 |
- |
18 |
dB |
Rise/Fall Time(20%~80%) |
Tr/Tf |
|
|
0.26 |
ns |
Total jitter |
Tj |
|
|
0.43 |
UI |
Optical Eye Diagram |
IEEE 802.3u and ANSI Fibre Channel Compatible |
||||
Receiver Section | |||||
Center Wavelength |
lo |
1260 |
|
1620 |
nm |
Receiver Sensitivity |
Rsen |
|
|
-34 |
dBm |
Receiver Overload |
Rov |
-3 |
|
|
dBm |
Return Loss |
|
12 |
|
|
dB |
LOS Assert |
LOSA |
-45 |
|
|
dBm |
LOS Dessert |
LOSD |
|
|
-34 |
dBm |
LOS Hysteresis |
|
0.5 |
|
5 |
|
6. Ordering information :
A-D0303-L3320C |
Commercial |
0~70℃ |
A-D0303-L3320C |
Industrial |
-40~85℃ |

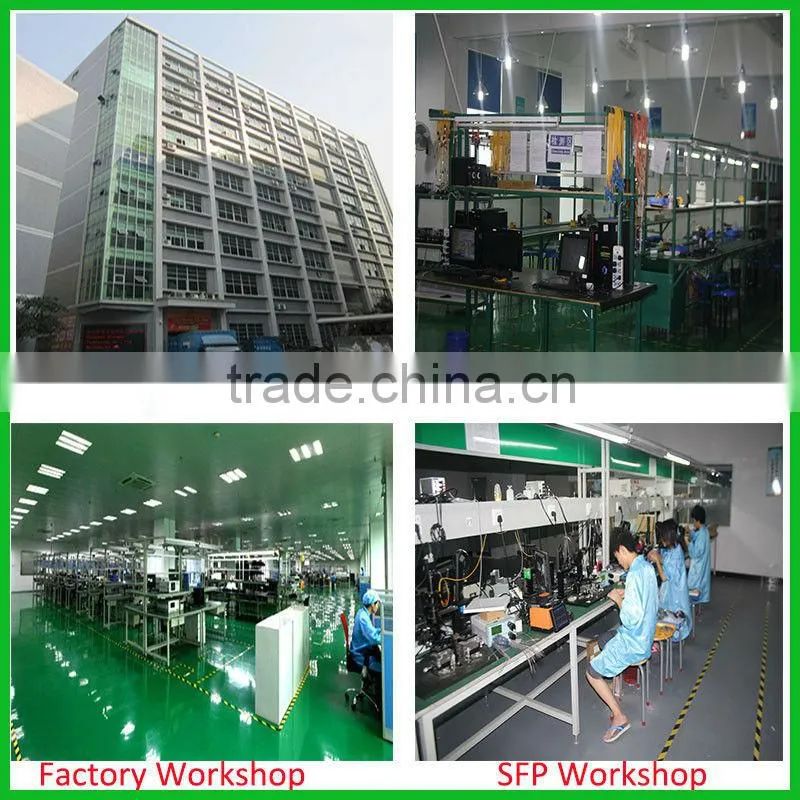

Factory
