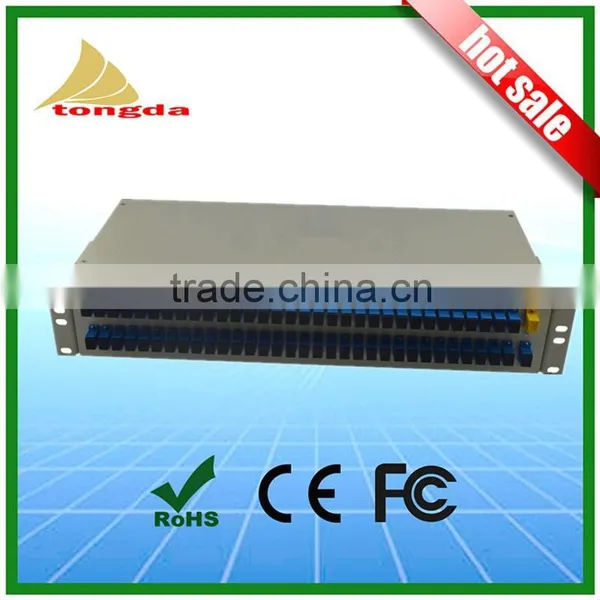

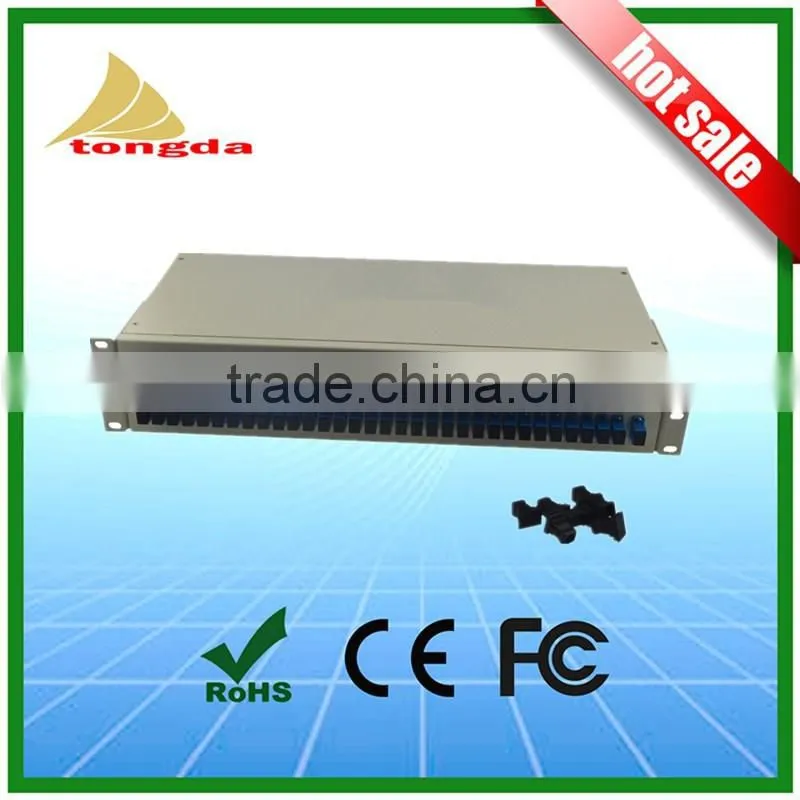

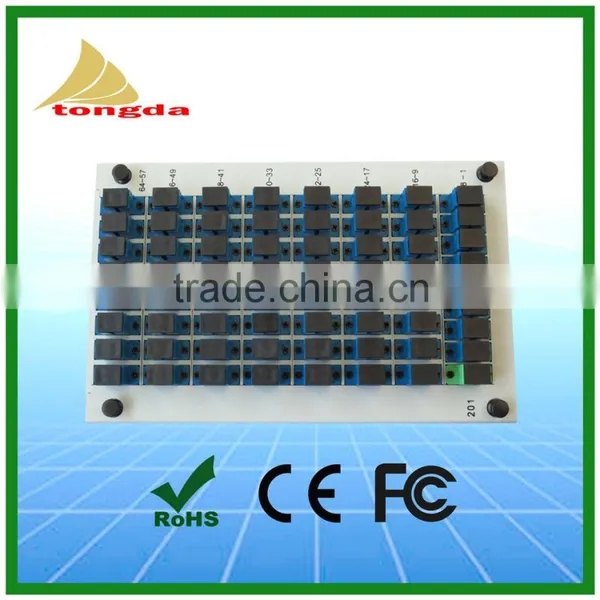

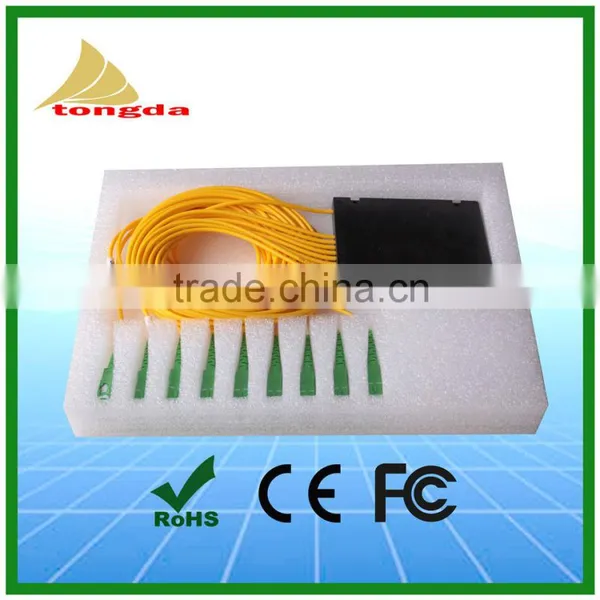

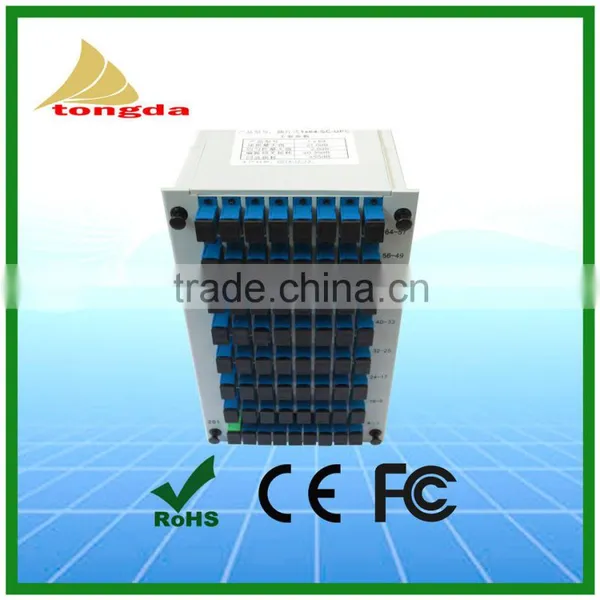

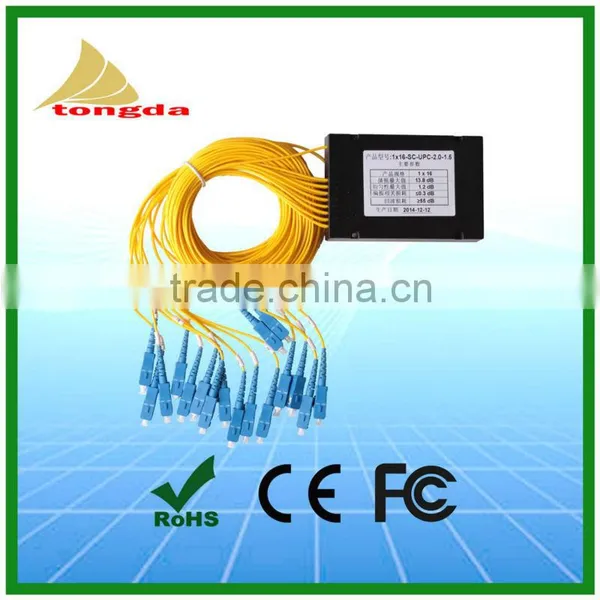

SC FC APC UPCconnector FTTH 1X64 PLC Optical splitter PLC
Description: PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Atongda PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Applications:
-FTTx Systems
-LAN,WAN and Metro Networks
-Analog/Digital Passive Optical Networks
-CATV Networks
-Test Equipment
-Other applications in fiberoptic systems
FEATURE
Good durability
Good exchangeability
High temperature stability
Low insertion loss
Available in 1*N & 2*N configuration
Compact size
RoHS compliant
Model number |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
wavelength |
1260-1650 |
||||||
Fiber model |
G657A or decided by customer |
||||||
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss(dB) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
||
Directionality(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength dependent loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
temperature stability (-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Model connector |
SC,FC,ST decided by customer |
||||||
Operating temperature(℃) |
-40~85 |
||||||
Storage temperature(℃) |
-40~85 |
||||||
