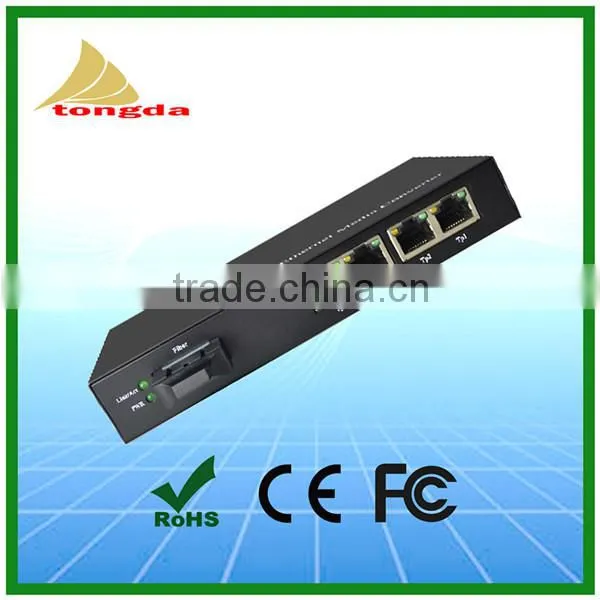

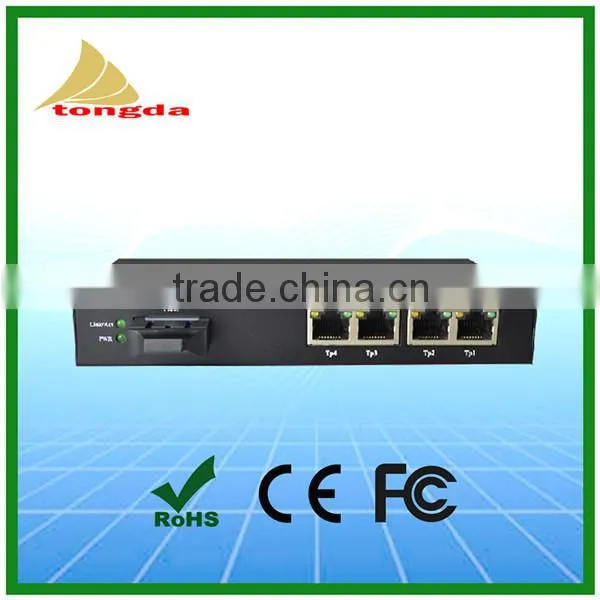

Help Center1 Fiber to 4 UTP Unmanaged RJ45 10/100/1000Mbps Fiber Switch Megabit Ethernet Fiber Switch
Related Products
-
1 Fiber to 4 UTP Unmanaged RJ45 20km 10/100/1000Mbps Single Fiber Single Mode Fiber Switch Megabit Ethernet IP CameraUS$ 1 - 85MOQ: 10 Pairs -
1 Fiber to 2 UTP Unmanaged RJ45 20km 10/100/1000Mbps Megabit Ethernet Fiber Switch IP CameraUS$ 1 - 80MOQ: 10 Pairs
-
1 Fiber to 2 UTP Unmanaged RJ45 20km 10/100/1000Mbps Megabit Ethernet Fiber Switch IP CameraUS$ 1 - 85MOQ: 10 Pairs
-
1 Fiber to 8 UTP Unmanaged RJ45 10/100/1000Mbps Dual Fiber Single Mode Fiber Switch Megabit Ethernet Fiber SwitchUS$ 1 - 100MOQ: 5 Pairs
-
1 Fiber to 8 UTP Unmanaged RJ45 10/100/1000Mbps Singlefiber Single Mode Fiber Switch Megabit Ethernet Fiber SwitchUS$ 1 - 200MOQ: 5 Pairs
1 Fiber to 4 UTP Unmanaged 10/100/1000Mbps Megabit Ethernet Fiber Switch
Four RJ45 / One Fiber port 10/100/1000M Ethernet Optical Fiber Switch
Five ports Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 1000M SC Fiber ports OR one 1000M SFP sockets(The end users can use different SFP module according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX etc. ). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Key features:
1 Four RJ45 ports and one SC fiber ports OR one SFP sockets, It can convert Optical-Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
2 Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
3 Broadcast storm protection
4 Supports VLAN and QoS
5 Supports the max 1536 bytes frame
6 Small power consumption (3W), low heat, good stability
Technical Specifications:
1 Operating standards: IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
2 MAC address: 1K
3 Frame buffer memory: 512Kb RAM.
4 Bandwidth: 12 G, can be transmitted to achieve non-blocking wire-speed
5 Cable: UTP cable: Cat. 5 (the max distance up to 100m)
Multimode Fiber: 50/125, 62.5/125μ M(the max distance up to 224/550m)
Singlemode Fiber: 8/125, 8.7/125, 9/125, 10/125μ M (the max distance up to 100km)
6 Flow control: Full Duplex: IEEE802.3X flow control
Half Duplex: Bake pressure flow control
7 Power: AC100 ~ 240V, 50~60Hz; DC5V 2A;
8 Environment temperature: 0º C~ +50º C
9 Storage temperature: : : -20º C ~ +70º C
10 Humidity: : 5% ~ 90%
11 Dimensions: 27(h) × 125(W) × 85(l)mm
Technical Specification
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
Protocol |
CSMA/CD |
Fiber |
1 x Single fiber or Dual fiber |
Distance |
Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km |
Optical interface |
SC (ST, FC) |
Ethernet Interface |
4 x MDI/MDIX RJ45 ports |
Power Supply |
DC5V 1A (external power) |
Operating Temperature |
0℃~+50℃ |
Storage Temperature |
-30℃~+6 |
Humidity |
5%~90% non-condensing |
