Product Details
Place of Origin: | Guangdong, China | Brand Name: | Atongda | Model Number: | ATP-1004E |
Product Description

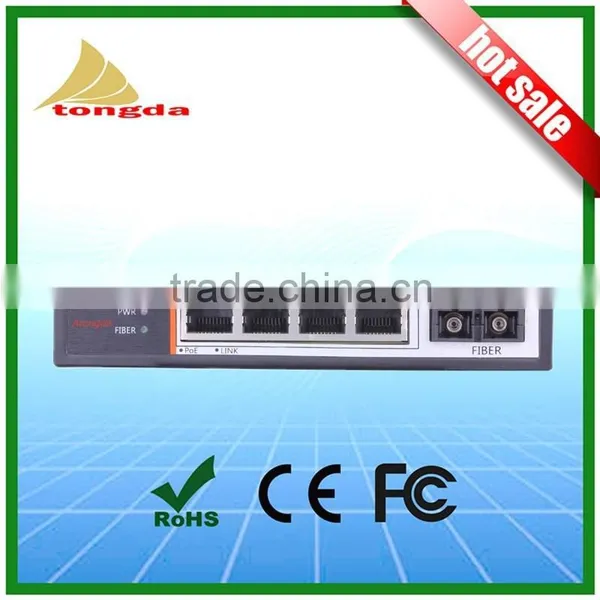

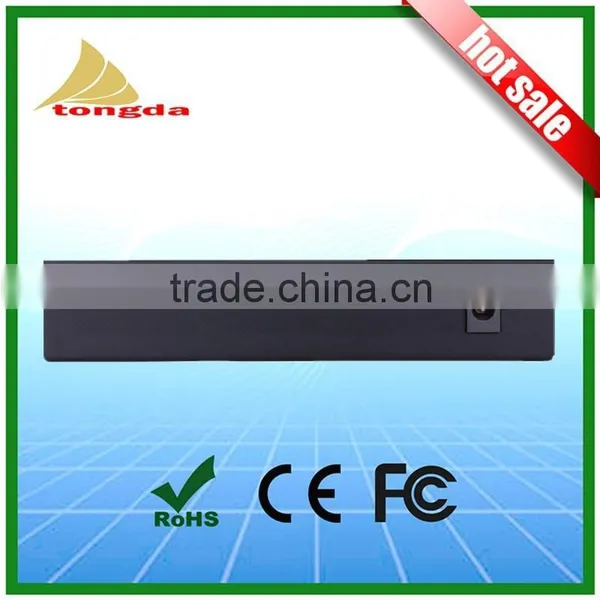

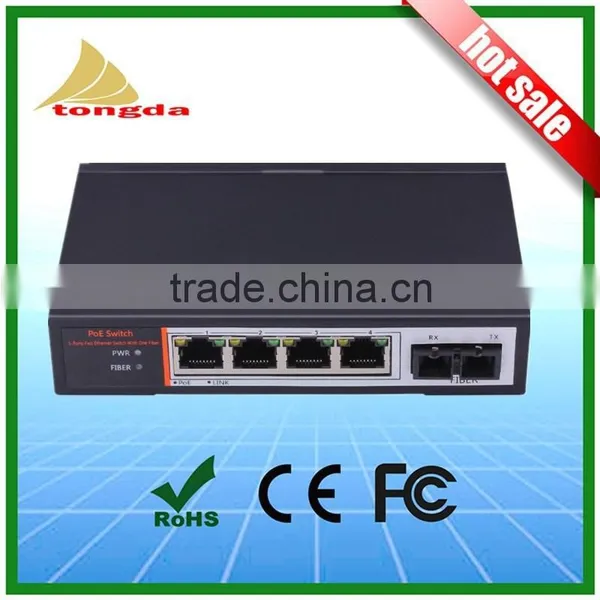

4 port SC PoE Fiber switch 48V power over Ethernet switch 4 PoE port and 1 uplink
Overview:
ATP1004E 4+1 Port 100Mbps PoE Switch, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers four 100M PoE ports which supply 15.4 watts of power per port for devices such as high power wireless access points, and VoIP telephony systems.
This rack mountable switch features an internal power supply. Auto sensing technology delivers 15.4 watts to 802.3af PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 1 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case.
Features:
§ IEEE 802.3af Power over Ethernet PoE compliant
§ Supports 10/100Mbps fast Ethernet
§ 4 x 100M bit Auto-MDIX PoE ports
§ Support SC fiber uplink (TX,RX)
§ Provides up to 15.4 watts for PoE
§ Automatically detects the PoE class level of a Powered Device
§ 1Gbps bandwidth
§ Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps
§ Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity
§ Full wire-speed non-blocking reception and transmission
§ Store-and-forward switching method
§ Back pressure Flow Control for Half-Duplex mode
§ IEEE 802.3x Flow Control for Full-Duplex mode
§ Power saving technology powers down unused ports and when a connected device is in standby mode
§ Plug and Play
§ Sturdy rack mountable metal case
§ Easy installation and use , no need to convert by software and network protocol
§ 1-year limited warranty
Technical Specification:
Hardware | |
Standard | IEEE 802.3 10Base-T |
Ports | 4x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports |
Data Transfer Rate | § Ethernet: 10/100 Mbps (Half / Full Duplex) |
Forwarding Rate | 100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps |
Data RAM Buffer | 96 K bytes |
Address Table | 2 K MAC entries |
Switch Fabric | 1Gbps |
Power | 100-240 V, 50/60 Hz, 1.5A |
Diagnostic LEDs | Power, PoE, Link / Activity |
Power Consumption | § Min: 8 Watts (standby) § Max: 72 Watts § PoE Max: 60 Watts (4 x 15 watts PoE devices connected |
Temperature | § Operating: 0° ~ 45°C (32° ~ 113°F) § Storage: -20° ~ 90°C (-4° ~ 194°F) |
Humidity | Max 90% (non-condensing) |
Dimensions | 140 x 91 x 28 mm |
Weight | 0.85 kg |
Certifications | CE, FCC ROHS |
PoE | |
Power over Ethernet | Up to 15.4 watts for PoE |
Installation guid:
1.Check the PoE switch
(1)Please check the enclosure,RJ45 ports,LED indicators ,sure they are ok.
(2)Connect the PoE switch with power,make sure the initialization of PoE switch is available as below:
POE indicator is off at the beginning when power connected
PWR indicator is on and keeps
Other yellow indicators will be on ,then off after one or two seconds
2.Connection cables:
(1) Connected the PoE switch to PD( like IP camera, wireless AP) by CAT5 or 6 cables
(2) Connected the external power adapter to PoE switch
(3) Connected the power cord to AC plug
