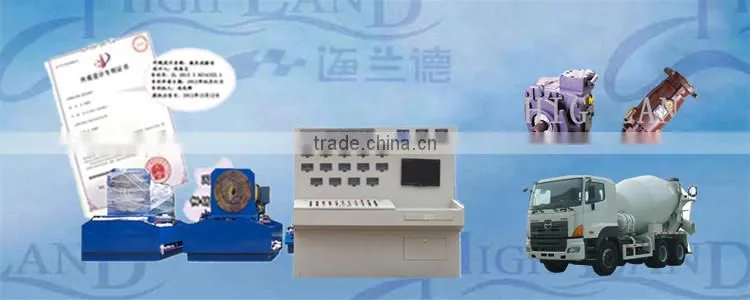

wholesale hydraulic operation table
Application of hydraulic operation table:
YST Series hydraulic operation table is used for checking and proofreading the products that include hydraulic pump, motor and valve, it also can give hydraulic system’s breakdown diagnosis. YST series hydraulic test bench are design and manufactured by us, we can produce according customer's requirments.
Basic Information:
Motive Power: Ordinary electromotor; Frequency conversion electromotor; Hydraulic electromotor; diesel engine drive; diesel engine hydraulic drive
Pressure: 35Mpa; 42Mpa
Power: 7 5KW; 90 KW; 110 KW; 160 KW
Load Location: Local; Long distance
Provide oil: oblige; absorb
Show location: Locale; Computer
Working medium: hydraulic oil
Oil tank cubage: 2000L; 3400L
Oil filtrate: 2 degree filter; 4degree filter; filtrate equipment
Cooling way: wind cooler; water cooler
Accessories: Connect shaft (2 Pc); outline drawing of shaft (1 pc)
Increasing function: close pump test; torsional moment power test
Technical Data:
- YST-500 Hydraulic Comprehensive Test Bench
| flow rate | power | pressure | motive force |
| 500L/min | 150KW | 35Mpa | combined electric motor hydraulic drive, stepless speed redulation |
- YST-380 Hydraulic Pump Test Bench
| flow rate | power | pressure | motive force |
| 380L/min | 75-160KW | 35Mpa | combined electric motor hydraulic drive, stepless speed regulation |
- YST-380 Digit Hydraulic Test Bench
| flow rate | power | pressure | motive force |
| 380L/min | 120KW | 35Mpa | combined diesel engine hydraulic drive |
- YST-300 Digit Hydraulic Test Bench
| flow rate | power | pressure | motive force |
| 300L/min | 75KW | 35Mpa | Motor |
Optional Models:
- YST-300 Hydraulic Motor Test Tench
- YST-300 Digit Hydraulic Test Bench
- YST-380 Hydraulic Pump Test Tench
- YST-380 Adjustable Hydraulic Comprehensive Test Bench
- YST-380 Digit Hydraulic Comprehensive Test Bench
- YST-500 Hydraulic Comprehensive Test Bench
Packaging:
wooden boxes package in container, suitable for long distance transportation;
according to costomers' requirements.
Shipping:
by sea;
according to request.
