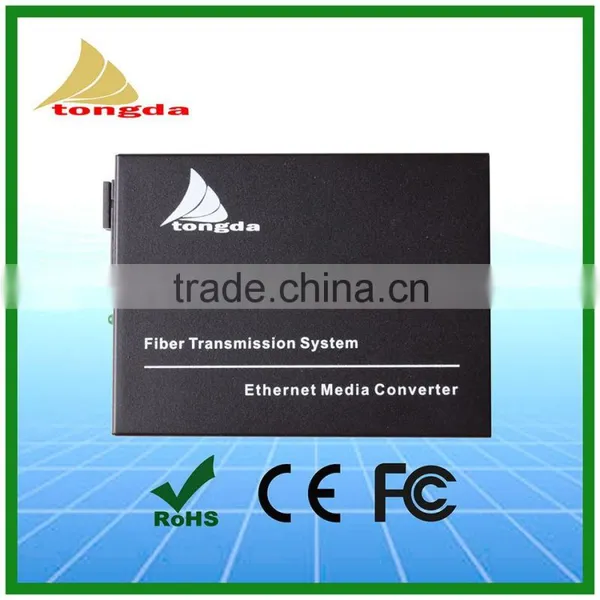

GPON Media Converter ,Compatible with ZTE GPON OLT,Compatible with Huawei OLT
Description
- Ø 10/1000M WDM series media converter can convert Optical-Electric Ethernet signals between 10/1000M UTP interface (TX) and 1000M optical fiber interface (FX).
- Ø The traditional 10/1000M gigabit Ethernet can be extended to the distance of 120km through single optical fiber link.
- Ø It must be used in couples,because the transmitted optical differs from the receive optical in wavelength.
- Ø 6 Group LED indicated lights could fully monitor the working conditions of converters.
- Ø It is easy for users to observe and diagnose the failure of converters.
- Compatible with ZTE GPON OLT,Compatible with Huawei OLT
Features
- Ø The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.
- Ø Auto negotiation function allows UTP port to auto select 10/100/1000M and Full Duplex or Half Duplex.
- Ø The UTP port supports MDI / MDI-X auto crossover.
- Ø Supporting the max 1536 bytes packets
- Ø Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.
- Ø Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
- Ø External power supply and Internal Power Supply.
Technical Specification
Operating standards: |
IEEE802.3u,10/100Base-TX and 100Base-FX; |
Data buffer: |
128K. |
Connectors: |
1310nm ,1490nm,1550nm |
Fiber ( Singlemode): |
SC/ST/FC |
Network Cable: |
10BASE-T: Category 3,4 or 5 UTP/STP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 100BASE-TX: 2pairs of category 5 UTP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 1000BASE-FX: SMF:8.3/125,8.7/125,9/125,10/125μm (10~100km) |
LED Power: |
FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act. |
Power Requirement: |
AC 110 ~ 240V to DC 5V; DC48V to DC 5V. |
Ambient Temperature: |
-20~ 70°C |
Storage Temperature: |
- 40 ~ 70 °C |
Humidity: |
5 ~ 90% |
Dimensions: |
Internal power: 30×110×140mm |
External power: 26×70×93mm |
Product List
10/100/1000M Single Fiber Media Converter (Internal power) | |
Model |
Description |
|
ATD-A1110-SS320 ATD-A1110-SS520 |
Single fiber, Single-mode, 20km, SC/ST/FC, inside power, |
|
ATD-A1110-SS340 ATD-A1110-SS540 |
Single fiber, Single-mode, 40km, SC/ST/FC, inside power, |
|
ATD-A1110-SS360 ATD-A1110-SS560 |
Single fiber, Single-mode, 60km, SC/ST/FC, inside power, |
|
ATD-A1110-SS480 ATD-A1110-SS580 |
Single fiber, Single-mode, 80km, SC/ST/FC, inside power, |
10/100/1000M Single Fiber Media Converter (External power) | |
|
ATD-B1110-SS320 ATD-B1110-SS320 |
Single fiber, Single-mode, 20km, SC/ST/FC, inside power, |
|
ATD-B1110-SS340 ATD-B1110-SS560 |
Single fiber, Single-mode, 40km, SC/ST/FC, inside power, |
|
ATD-B1110-SS460 ATD-B1110-SS560 |
Single fiber, Single-mode, 60km, SC/ST/FC, inside power, |
|
ATD-B1110-SS480 ATD-B1110-SS580 |
Single fiber, Single-mode, 80km, SC/ST/FC, inside power, |
System Design
Packing

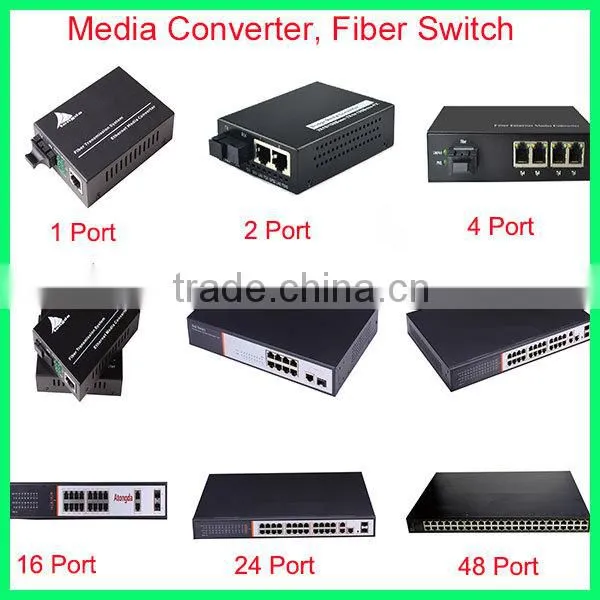

Other Media Converter
Production Show
Certificate
Shipment
Payment
