250 W Rear Brushless Motor Bike Mountain Electric Bike XY-TDE05Z
US$ 550 - 750
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Wattage:
200 - 250w
Voltage:
36V
Power Supply:
Lithium Battery
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
e Bike BikesUS$ 750 - 850MOQ: 50 Pieces -
Carbon Fibre Frame Electric Mountain Bike MTBUS$ 1,500 - 1,800MOQ: 50 Pieces
-
MID Drive Motor Electric Bicycle Mountain BikeUS$ 900 - 1,100MOQ: 50 Pieces
-
26inch Al Alloy 250W Electric Mountain Bike Rear Brushless Electric Bike XY-TDE05ZUS$ 550 - 750MOQ: 50 Pieces
-
Full Suspension Mountain Bike Aluminum Bicycle Frame Mtb Electric BikeUS$ 650 - 700MOQ: 50 Pieces
Wattage
200 - 250w
Voltage
36V
Power Supply
Lithium Battery
Wheel Size
Other, 26“
Motor
Brushless
Certification
CE
Frame Material
Aluminum Alloy
Foldable
No
Max Speed
Other, <30km/h
Place of Origin
Zhejiang, China
Brand Name
overfly
Model Number
XY-TDE05Z
250 W rear brushless motor bike mountain electric bike XY-TDE05Z
Product Description
| frame | Aluminium,Al6061 |
| front fork |
SRSUTORY,OMEGA-TNL-26" Suspension,travel 80mm |
| motor | 8FUN,SWXH2,36V,250W |
| display | APT LCD 800S |
| battery |
King-Ko,Li-Poly(NMC), 36V,10Ah(360Wh),???Kg |
| net weight(Kg) | 25 |
| frame size | 26"×483 |
| frame colour | black & white |
| head set | VP,A41AC,28.6×44×30 |
| stem | PROMAX,MA-45 |
| handle bar | PROMAX,HB-M301,W=640 |
| grip | VELO VLG-776AD3 G2 |
| derailleur level | SHIMANO,SL-M430-9R SL-M390 |
| derailleur | SHIMANO,ACERA, RD-M390 |
| crank set | PROWHEEL,Al6061,PIONEER-244A-4,44T×170mm |
| B.B set | NECO,B910 |
| Multiple Freewheel | DNP/LY-1109HFN |
| chain | KMC,Z51RB 1/2" *3/32" |
| pedal | welgoB249DU/111.5*102*27.6 |
| rim | ALEX,DH19-26" |
| front hub | QUANTA,KT-MD7F,13G×36H |
| rear hub | 8FUN,rear hub motor |
| tire | KENDA/K1047/26"×2.1 |
| saddle | YBT-1036B |
| seat post | KS,KSP-525 |
| brake | D-brake,TEKTRO,NOVELA |
| Rated load (Kg) | 95KG |
| input voltage(V) | AC110V--240V,47-63Hz |
| charge time (H) | 6h |
| max speed(KM/H) | EU:25km/h,USA:32km/h |
| Rated rotate speed (rpm) | EU:195rpm,USA:250rpm |
| e-bike size | 1835×625×1045 |
| wheel base(mm) | 1170 |
| seat high(min-max) | 880-1010 |
| size of package | 1450×270×770 |
| gross weight | |
| container loading(PCS) | 96PCS/20"GP, 216PCS/40HQ |
Company Information
Certification
Production line
Inner packing
Outside packing

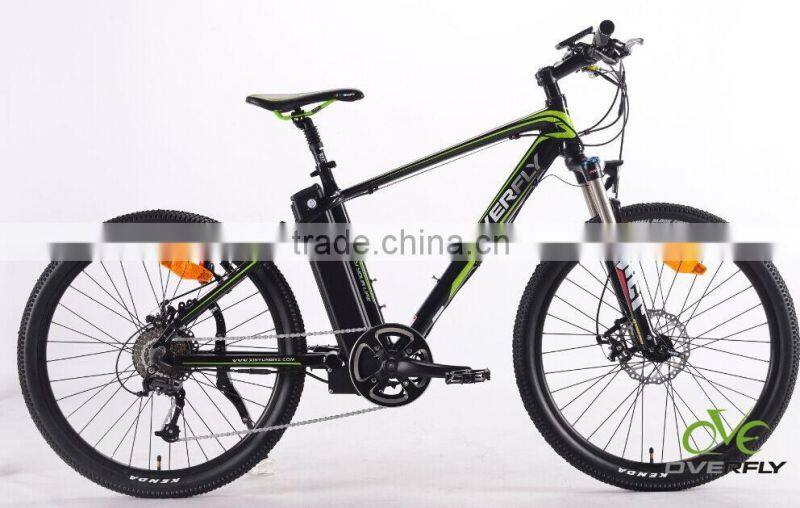

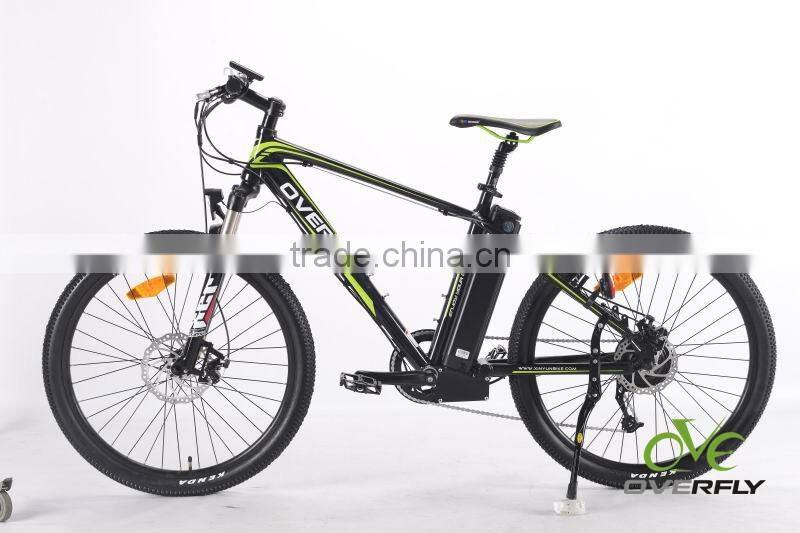

2014 Eurobike Fair e-bike XY-TDE05Z

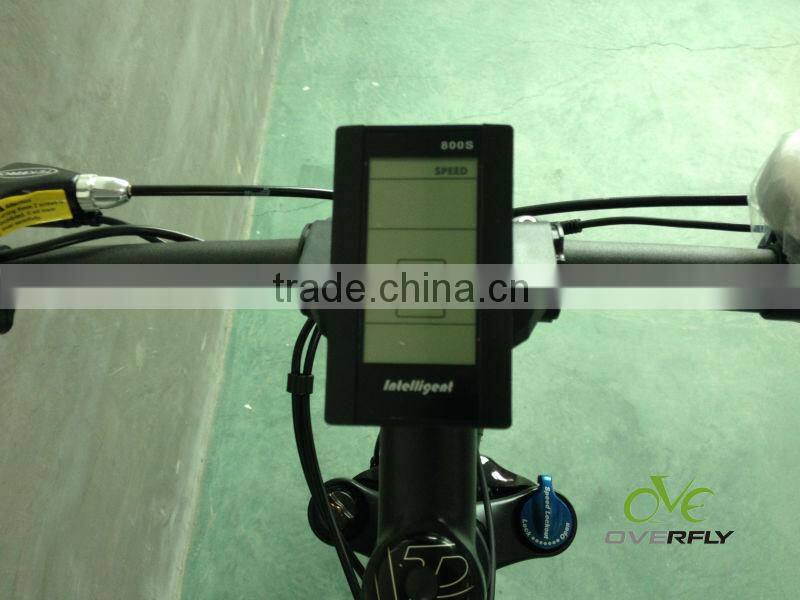

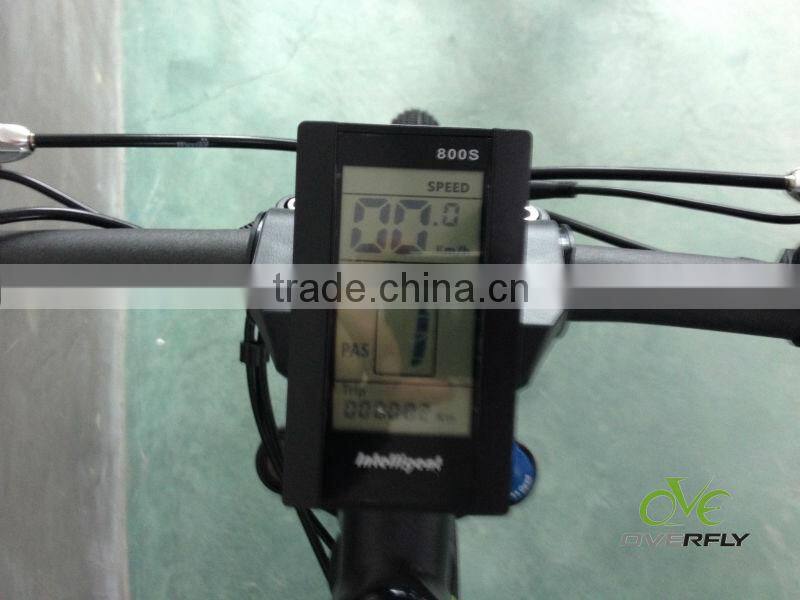

APT LCD 800S

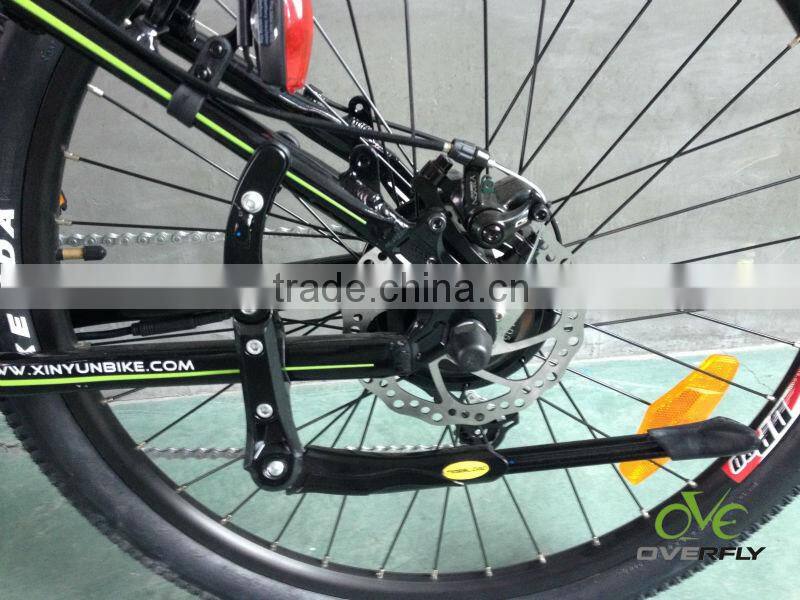

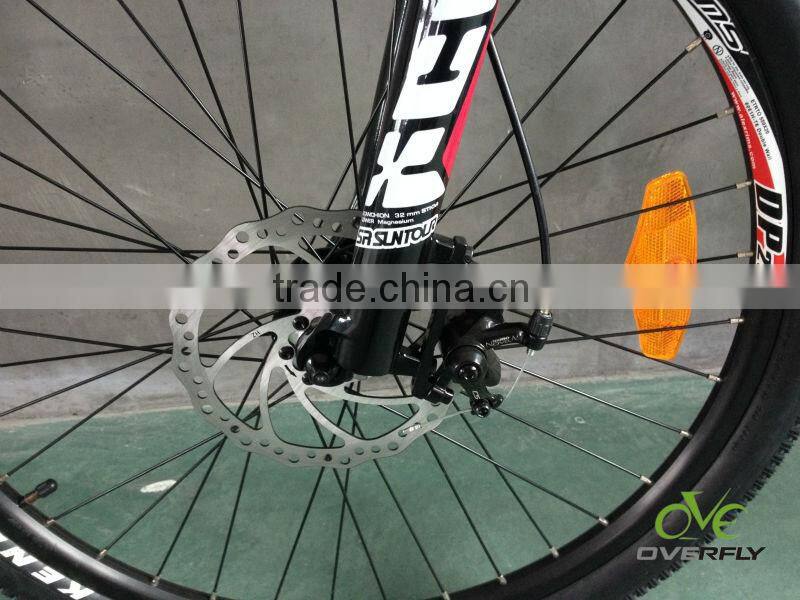

D-brake,TEKTRO,NOVELA

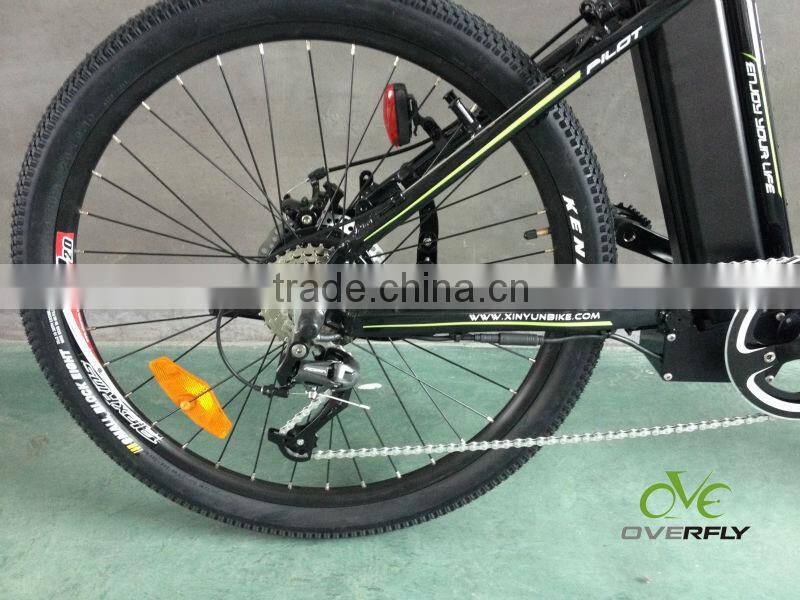

SHIMANO,ACERA, RD-M390
KENDA/K1047/26"×2.1

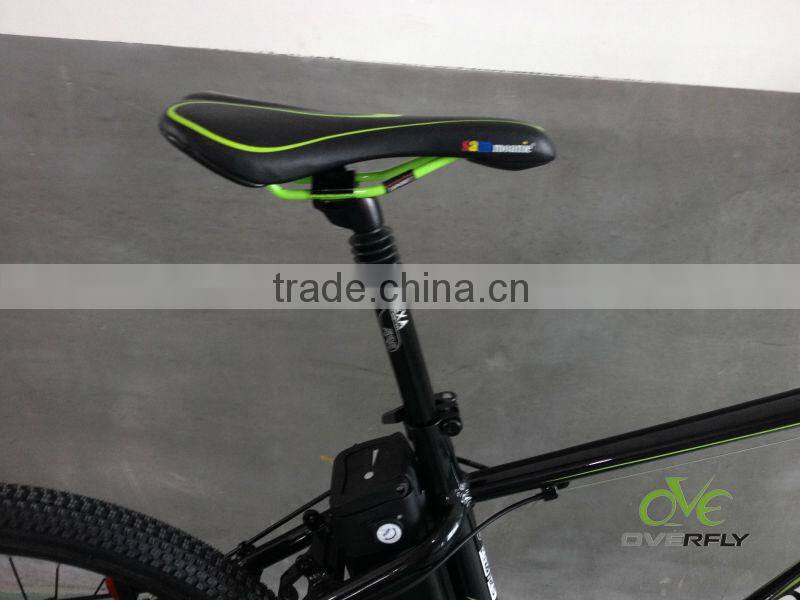

YBT-1036B
SHIMANO,SL-M430-9R SL-M390

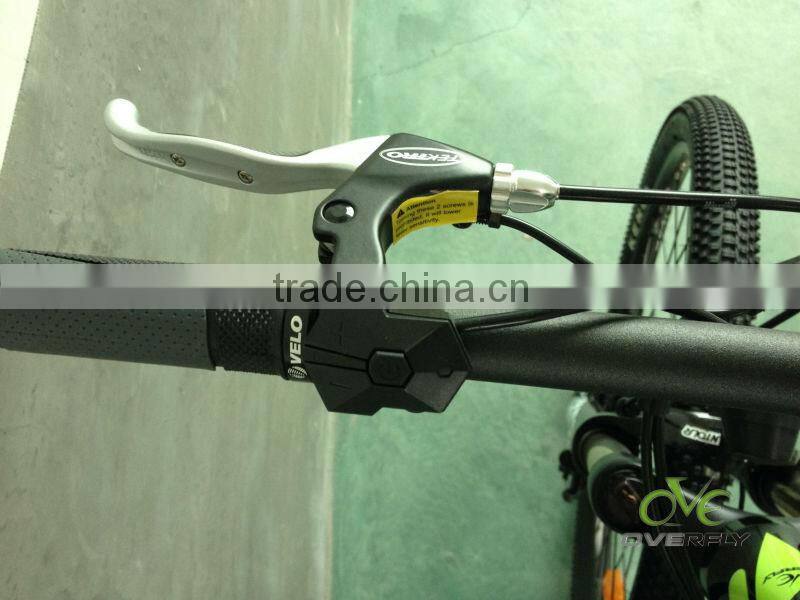

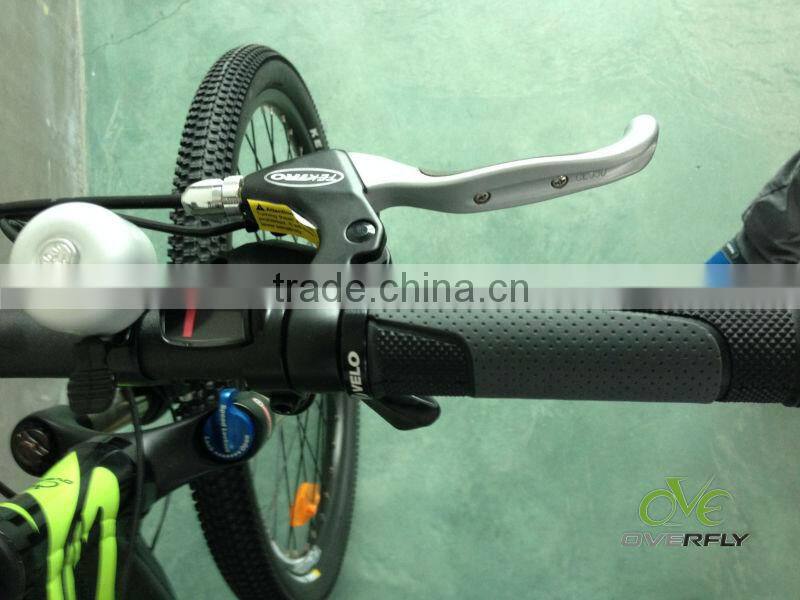

VELO VLG-776AD3 G2 grip
Our Services
QUALITY WARRANTY
1. Battery: we provide 18 months’ quality guarantee for Li-ion battery.
2. Electric motor: we provide as long as 18 months’ quality guarantee.
3. Chargers: we provide 12 months’ quality guarantee.
4. Controller: we provide 12 months’ quality guarantee.
5. Frame: we provide 3 years’ quality guarantee.
