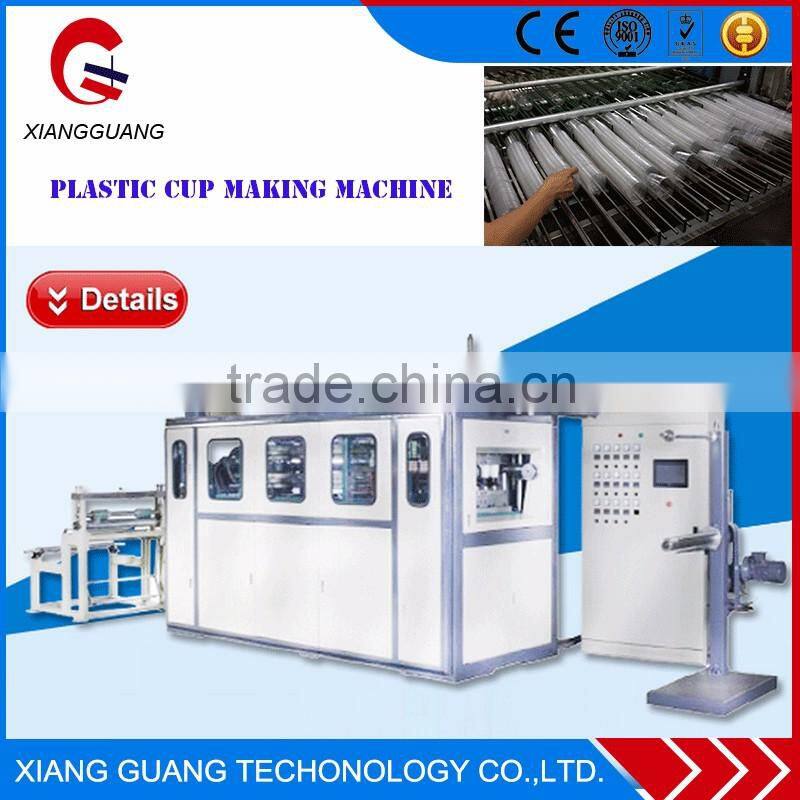

XG-750 series automatic servo motor cup making machine production line,this machine feeding and tensile motor adopts the servo motor, controlled by PLC and touch screen for plastic cup making machine price.
1) the machine can be used in the production of plastic cup, bowl, cup of cold drink cup, ice cream, Cheese Cup instant noodles, boxes and bowls, plastic plates, saucers, lids and other plastic products.
2) for PP, PVC, PS, HIPS and PET sheet EPS foam lunch box production line.
3) by PLC and touch screen control equipment operation.
4) mold adopts two guide posts on both sides of the precision control of them.
5) mould movement adopts hydraulic pressure drive.
6) guide part adopts manual oiling device.
7) by a temperature control module controls each temperature zone plastic thermal forming machine.
8) the sheet feeding, heating, drawing, forming, trimming disposable completion.
Technical Parameter
Model |
XG-750 |
Suitable material |
PP, PS, HIPS, PET, PVC |
Sheet thickness |
0.20 – 2.2mm |
Sheet width |
550 – 750 mm |
Max sheet roll diameter |
Φ800 mm |
Max.forming area |
725 x450 mm |
Max.forming depth |
160 mm |
Working speed |
25-30cycle/min |
Die cutting |
Automatic die punching |
Heating method |
infrared ceramic heating |
Up rated power |
71kw |
Down rated power |
71kw |
Motor Power |
15KW |
Water flow rate |
0.5-1.0m3/h |
Air consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Power consumption |
35KW/hr |
Overall dimension(L*W*H) |
3300×1500×2500mm |
Weight |
≈7.5T |
Power |
380V/ 50HZ,three-phase,four wire |
Q: How can i install the machine and operate it ?
A: Our machine is easy to install and convenient to operate.
We will send you English version manual, videos, photos to let you know how to do it.
Meanwhile we also support free online service for you.
Just tell us what you need and what problems happen.
We will give you the best solutions within 24hrs.
Also we can provide engineer overseas service.
Q: How can you ensure the machine quality?
A: The accessories in the machine are imported from Japan, German, Korea and so on.
Our goal is win the customer with best quality.
All our workers in factory has more than 5 years experiences in this field.
And we will test and check the machine again before shipped.
Q: How can i do if the machine failure?
A: We can provide 12 months free replace accessories.
Meanwhile we will provide 2-3 sets free accessories when you purchase the machine.
If possible, our engineer can go to overseas for fix your machine.
Q:How about your warranty?
A:We can provide 12 months free replace accessories.
Meanwhile we will provide 2-3 sets free accessories when you purchase the machine.
If possible, our engineer can go to overseas for fix your machine
