Crane Supplier 7 Ton Wheeled Crane/mobilecrane/mobil Cranes
US$ 34,879 - 39,696
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Construction, Rescuing
Rated Loading Capacity:
4750
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All Terrain Crane Manufacturers 7 Ton Truck HoistUS$ 34,879 - 39,696MOQ: 1 Set -
Crane Supplier 7 Ton Mobilecrane/mobil Cranes/truk CraneUS$ 34,879 - 39,696MOQ: 1 Set
-
Small Hydraulic Crane 7 Ton Mobilderek/mobile Crane/mobil CraneUS$ 34,879 - 39,696MOQ: 1 Set
-
Truck Mounted Crane Manufacturer 7 Ton Service Truck With Crane for SaleUS$ 30,000 - 50,000MOQ: 1 Set
-
Truck Crane Used for Sale 8 Ton Hydraulic Crane Truck Used in HollandUS$ 40,000 - 60,000MOQ: 1 Set
Condition
New
Application
Construction, Rescuing
Rated Loading Capacity
4750
Rated Lifting Moment
17.5 T.M
Max. Lifting Load
7 ton
Max. Lifting Height
14.5 m
Span
5.5 m
Place of Origin
Jiangxi, China
Brand Name
Jiang Huan
Model Number
SQ703
Certification
CCC
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

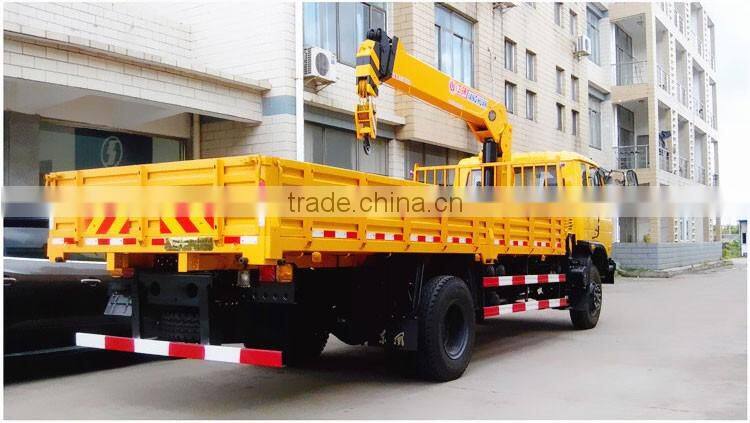

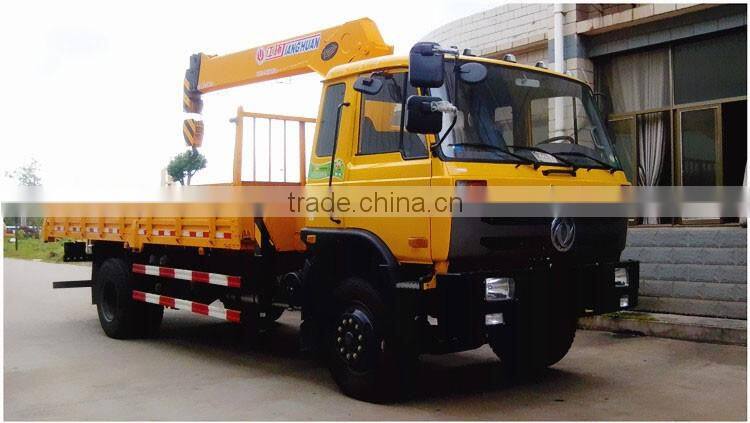

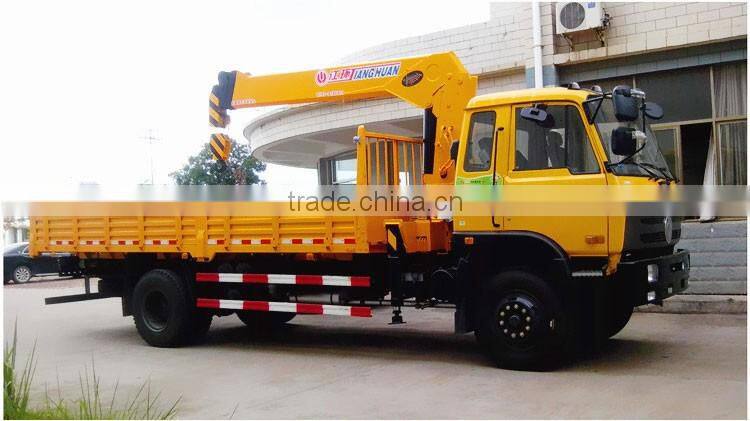

crane supplier 7 Ton wheeled crane/mobilecrane/mobil cranes
- trruck crane
- truck crane
- truck crane
Product Description

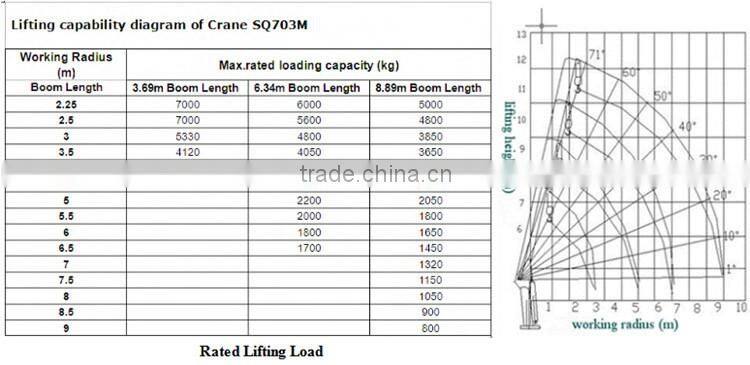

- Specification of the Crane SQ703 (7 Ton)
| Model No. | SQ703 | ||
| HS Code | 878705109100 | ||
| Main specification of crane |
Boom Style | Straight boom |
|
| pressure system | hydraulic system |
||
| Max oil flow of hydraulic syetem | 63 L/min |
||
| reated pressure of hydraulic system | 20 Mpa |
||
| max lifting capacity | 7 Ton |
||
| max lifting moment | 17.5 TM |
||
| max working radius | 12 M |
||
| max lifting height | 14.5 M |
||
| Derricking Scope | 1-76 ° |
||
| Rotation Angle | 360 ° |
||
| Number of jib arm sections | 3 | ||
| outrigger span | 5.5 M |
||
| Oil tank capacity | 100 L |
||
| crane weight | 2.5T |
||
| installation space | 900mm |
||
- Specification of the Chasiss truck
- Jianghuan crane can be installed onto most China domestic truck and also oversea brand trucks.
-
For the following truck specifications is only one models, other truck models can be reccommended according to the customer's requirements.
Model No. DFE5161JSQF Engine YC6J180-46 Engine Power 132kw Engine Capacity 6500ml Overall Dimension 9000×2490×3650 mm Cargo Frame Dimension 5700×2294×550 mm Total Weight 15900Kg Curb Weight 8900Kg Rated d Load Capacity 6805 kg Approach / Departure Angle 20/12 ° Front / Rear Over Hang 1420/2480mm Axle-Load 10000 Wheel Base 5100mm Number of Axles 2 Maximum Speed 90km/h Leaf Spring 9/10+8 10+8 Number of Tyres 6 Tyre Specification 10.00R20 Front Wheel Distance 1960 Rear Wheel Distance 1860 Integrated Fuel 27.6 Drive Type 4×2
Packaging & Shipping
Our Services
1. Profeesional truck crane manufacture Since 1998. we have our own reasearch team for offering OEM and ODM service.
2. we offer SKD services for saving cost for our customer.
3. 1 year warranty period.
4. All the inquiry will be answered in 12 hours .
5. 15-25 delivery time.
6. After-sales services team give the fast support to our customer.
* Overview of Jianghuan factory
Application
Market
Contact
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
