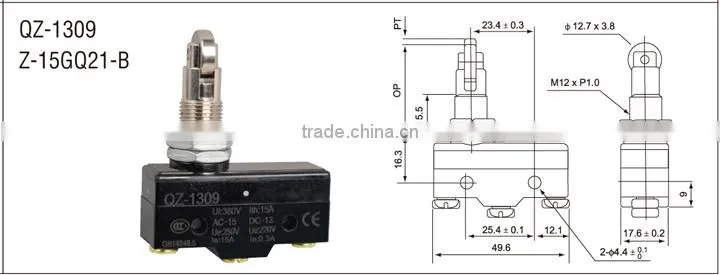

kontron 15A silver contact Z-15GQ21-B micro switch
USD $0.85 - $0.9
/ Piece
200 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | KONTRON | Model Number: | Z-15GQ21-B |
| Protection Level: | IP65 | Operating Temperature: | -25-65C | Max. Current: | 15A |
| Max. Voltage: | 380VAC |
Product Description
Micro switch
| operation speed | 0.01-50cm/s |
| action frequency | 120 ops |
| contact resistance | 15mΩ |
| insulation resistance | 100MΩ |
| deelectric strength | 1000VAC |
| vibration | 10-55HZ |
| hitting | 1000m/S2 |
| ambient temperature | -10-80C |
| humidity | 95% |
| service life | 100000 ele |
| weight | 260 grams |
| protective degree | IP40 |
Action characteristics
| model no | TZ7100 | TZ7110 | TZ7310 | TZ7311 | TZ-7312 | TZ7120 | TZ-7140 | TZ-7121 | TZ-7141 | TZ-7124 | |
| OF | 600g | 600g | 600g | 600g | 600g | 150g | 220g | 180g | 220g | 200g | |
| RF | 100g | 100g | 100g | 100g | 100g | 50g | 60g | 50g | 60g | 60g | |
| PT | 2.0mm | 2mm | 2.mm | 2mm | 2mm | 13.5mm | 8.5mm | 11mm | 6.5mm | 11mm | |
| OT | 0.8mm | 5mm | 6mm | 6mm | 6mm | 4mm | 2.5mm | 3.mm | 2.mm | 3mm | |
| MD | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 3.2mm | 3.2mm | 2.4mm | 1.5mm | 2.4mm | |
| OP | 30.5+_0.8mm | 44+_1.2mm | 21+1.2mm | 33.3+1.2mm | 33.3+1.2mm | 25+1mm | 25+1mm | 40+1mm | 40+1mm | 50+_1.2mm | |
| FP | 35mm | 32mm | 46mm |
