CE Certificate sa

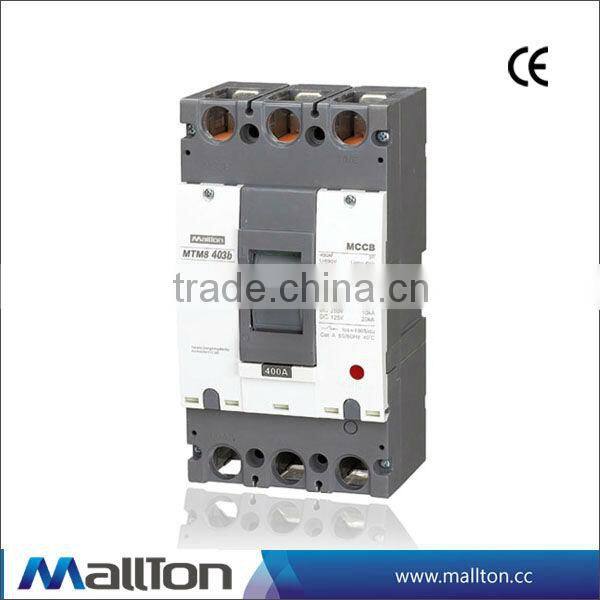

Name: CE Certificate sa
Brand: Mallton
SKU: 114767405
Availability: InStock

US$ 5 - 50 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Mallton

Model Number:

MTM8-403

Wenzhou Mallton Electric Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Mallton

Model Number MTM8-403

Type Moulded Case

Poles Number 3

sadc mold case circuit breaker

Moulded Case Circuit Breaker dc circuit breaker circuit breaker

APPLICATION

MTM8 series moulded case circuit breaker is suitable for industrial or commercial power and

lighting with AC50/60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

It's a kind of economical breaker with the characters of stable and reliable function, beautiful

appearance, small size and long life. It can be used for conversion of line and infrequent starting

motor. It can also be attached to install the accessories which have protection function for avoid-

ing loss-voltage, undervoltage. The product can install connection line with front board and back

board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a

remote distance.

SPECIFICATION

The rated insulation voltage for this series of circuit breaker is 690V, the rated operating voltage

is 600V, the rated frequency is 50Hz, the other rated values for the main circuit.

TYPE	MTM8-32E	MTM8-52E	MTM8-52S	MTM8-62E	MTM8-62s
TYPE	MTM8-33S	MTM8-53E	MTM8-53S	MTM8-63E	MTM8-63s
Frame size(AF)	30	50		60
Rated current(A)	5,10,15,20,30	5,10,15,20,30	5,10,15,20,10,30,40,50	60	60
Rated operational voltage(V)Ue (50/60Hz)	600	600	600	600	600
Rated insulation voltage(V)Ui(50/60Hz)	690	690	690	900	900
Rated impulse withstand voltage(kV)Uimp	6	6	6	6	6
Utimate breaking capacity	10	10	25	10	25
