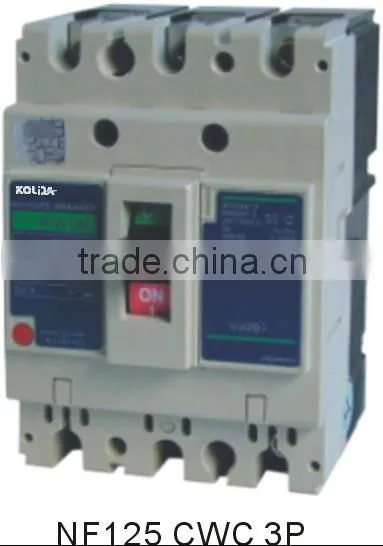

Mould case circuit breaker ( MCCB,CB ,AA,NF)

standard package

Specifications

Mould case circuit breaker, AA ,NF MCCB,CE marked ,3P,lower price,high quality,good service.

Mould case circuit breaker (MCCB )

ABS&ABE MOULDED CASE CIRCUIT BREAKER(MCCB)

1.       Application

     ABS&ABE series molded case circuit breaker ,MCCB is suitable for industrial or commercial power and lighting with AC 50/60Hz,rated working voltage up to AC 600V/DC250V,rated current up to 63A.Its a kind of economical breaker with the characters of stable and reliable function,beautiful appearance ,small size and long life.It can be used for conversion of line and infrequent starting motor.It can be attached to install the accessories which have protection function for avoiding loss-voltage,undervlotage.The product can install connection line with front board and back board,it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

2.The rated insulation voltage for this series of circuit breaker is 690V,the rated operating voltage is 600Vmthe rated frequency is 50Hz,the other values for the main circuit.



Type	2 pole	ABS-32E	ABS-52E	ABS-52S	ABS-62E	ABS-62S
	3pole	ABS-32S	ABS-53E	ABS-53S	ABS-63E	ABS-63S
		30	50		60
		5,10,15,20,30	5,10,15,20,30,40,50		60
		600	600	600	600	600
		690	690	690	900	900
		6	6	6	6	6
Uitimate breaking capacity (KA,lucAC50/60Hz)	220V/240V	10	10	25	10	25
	380V	7.5/5	7.5/5	14/10	7.5/5	14/10
	415V	7.5/5	7.5/5	14/10	7.5/5	14/10
	440/460V	5	5	10	5	10
	480/500V	2.5	2.5	7.5	2.5	7.5
	600V	2.5	2.5	5	2.5	5
Utilisation category		A	A	A	A	A
Endurance	Mechnical	8500	8500	8500	8500	8500
	Electrical	1500	1500	1500	1500	1500



Type	2 pole	ABE-102E	ABE-102S	ABE-203E	ABE-203S	ABE-403E	ABE-403S
	3 pole	ABE-103E	ABE-103E
Frame size (AF)			100	225		400
Rated current(A)		5,10,15,20,30,40,50,60,75,100	15,20,30,40,50,60,75,100	100,125,150,175,200,225		250,300,350,400
Rated operational voltage(V)Ue(50/60Hz)		600	600	600	600	600	600
Rated insulation voltage (v)Ui(50/60Hz)		690	690	690	690	690	690
Rated impulse withstand voltage(KV)Uimp		6	6	6	6	6	6
Uitimate   breaking capacity (KA,lcu AC 50/60Hz)	220/240V	10	10	35	50	35	50
	380V	7.5/5	7.5/5	18	25	30	42
	415v	7.5/5	7.5/5	18	25	25	35
	440/460V	5	5	18	25	25	35
	480/500V	2.5	2.5	7.5	10	18	25
	600V	2.5	2.5	7.5	10	18	22
Utillisation   category		A	A	A	A	A	A
Endurnce	Mechanical	8500	8500	7000	7000	4000	4000
	Electrical	1500	1500	1000	1000	1000	1000

VIEW OF COMPANY







VIEW OF FACTORY













OUR EXHIBITORS









Our Certificates











FAQ



Q 1.How about your experience?

A.We have our own professional factory and R&D department & more than 15 years producing experience.

Q 2. What's your advandge ?

A. We have mash melders,injection molding machines and punchers,with these,we can make by ourselves from the inside parts to outside.

It greatly increases the efficiency and saves the cost.

Q 3. How's the delivery time ?

A. usually it will take about 15-30 days for production

Q 4. Tell me the standard of package?

A. For inner box and master carton are made as per international standards,and we can make special design for you if need.

Also if necessary, will be packed in pallet to avoid any damage.

Q 5. What kind of material of circuit breaker?

A. We have two types, one copper coil with silver point and the other is brass coil with copper

point. It depends on your requirement. In fact, those two have no difference if normal work well.

Only except the electrical life. Copper and silver is better and also higer price.

Q 6.Will be any wanrranty for your item ?

A. We offer one year warranty for our products. Please feel assured.

Q 7 .Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to foreign affairs office or

other office to apply for this certificate.

Q 8.Would you accept to use our logo ?

A.We offer OEM ODM customization services if quantity is suitable.

Q 9.We want to know month capacity.

A. 1000pcs/month

Q10 .Where is your market?

A. Our produce and design are sold well in Southeast Asia , Middle East and European, also are trusted and praised deeply by domestic and foreign users.

We hope you can join us and make mutural benifit from our cooperation.





More detail informations, please feel free to contact us!
