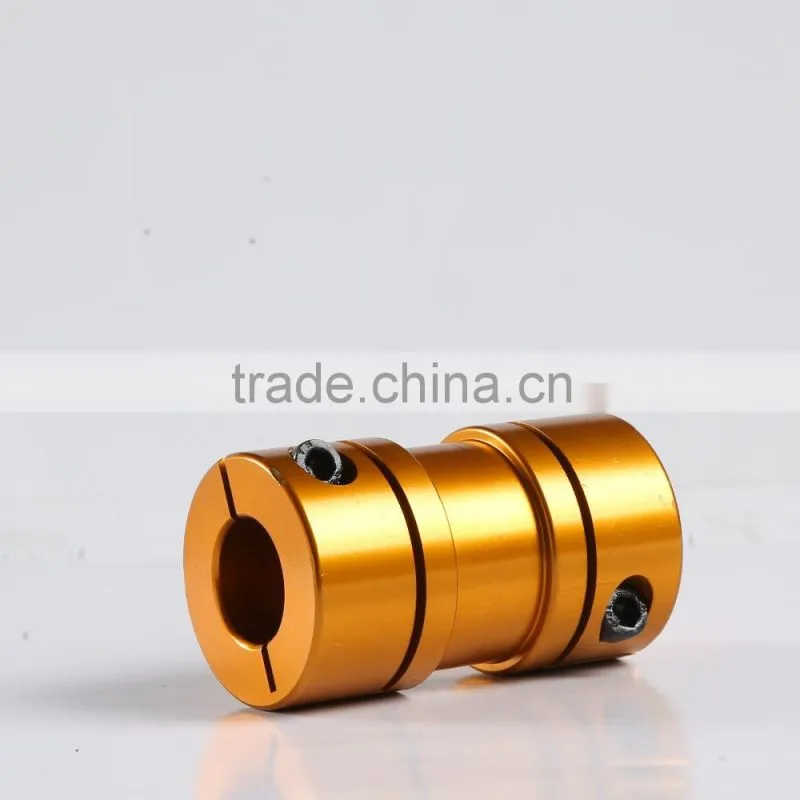

Centaflex coupling in flexible rubber D26

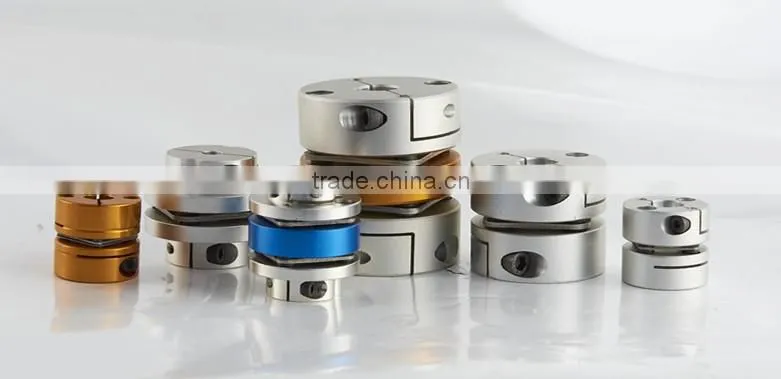

A disc coupling is a high performance motion control (Servo) coupling designed to be the torque transmitting element (by connecting two shafts together) while accommodating for shaft misalignment. It is designed to be flexible, while remaining torsionally strong under high torque loads. Typically, disc couplings is a great solution for high speed applications, can handle speeds up to 10,000 RPM.
Advantage:
1. High torque capacity and excellent response
2. Low Inertia, operatable at high/changing speed.
3. Ability to accommodate angular,axial and parallel misalignment. (single disc coupling can not manage a big parallel offset)
4. Zero backlash
5. Identical regular and reverse rotational characteristics
6. Oil resistant and maintenance free
Disadvantage:
The downside is that they are more delicate than the average coupling and can be damaged if misused. Special care should be taken to ensure that misalignment is within the ratings of the coupling
Dimension
Code |
A |
B |
C |
D |
E |
Bore |
Weight |
|
Min |
Max |
|||||||
LX-20C |
20.0 |
30.0 |
10.0 |
8.0 |
5.0 |
4.0 |
8.0 |
19.0 |
LX-25C |
25.0 |
32.5 |
10.0 |
9.0 |
5.0 |
5.0 |
10.0 |
25.0 |
LX-30C |
30.0 |
35.0 |
11.3 |
10.0 |
5.5 |
6.0 |
15.0 |
50.0 |
LX-40C |
40.0 |
66.0 |
25.0 |
12.0 |
8.5 |
8.0 |
19.0 |
160.0 |
1. Non through sleeve, Zero backlash.
2. Crown shape of the teeth, for easier assembly
3. Tightly fit with a column design of the sleeve
Quick Referene :
Packing details:
Anti-rust Paper---small box--- Carton, full consider of practical situation
Delivery details: 20-30 days.
Our Faith:
To Make it happen---needs from the market, from you.
