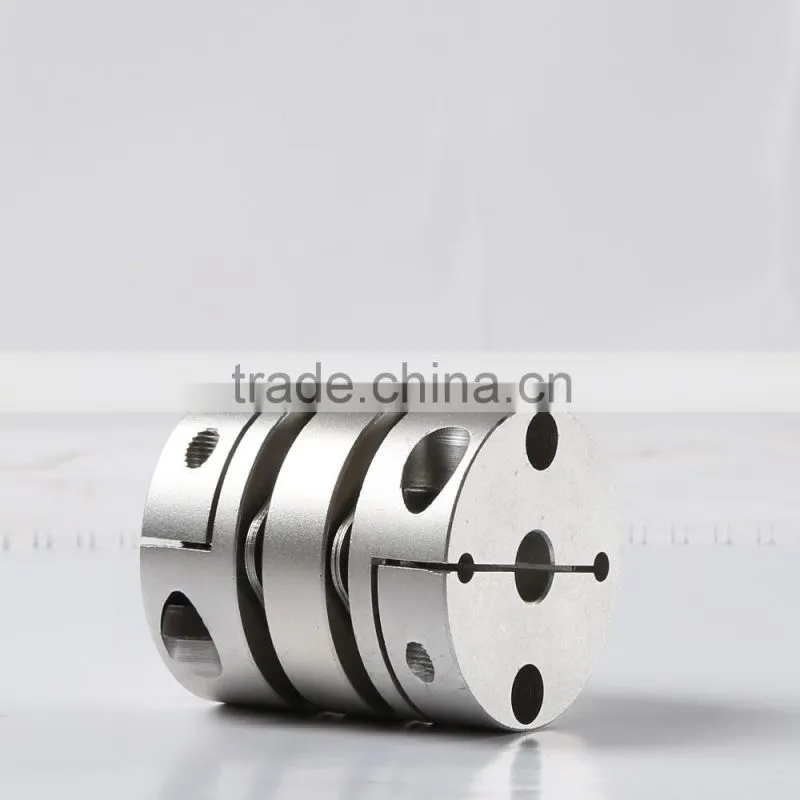

Help CenterEncoder Flexible High Torque Coupling for Motion Control
Related Products
-
Flexible Shaft Diaphragm Disc Coupler for Motion Control SystemUS$ 1.90 - 1.90MOQ: 10 Pieces -
Encoder Flexible High Torque Coupler for Motion ControlUS$ 2.90 - 2.90MOQ: 10 Pieces
-
Flexible Spider Shaft Coupling in Aluminium for Stepper Servo Motor Quality ChoiceUS$ 1.90 - 1.90MOQ: 10 Pieces
-
Flexible Mechanical Nunstandard Coupling for Motor MotionUS$ 1.90 - 1.90MOQ: 10 Pieces
-
Flexible Shaft Coupling for 3D Printer Power Transmission LinearUS$ 1.90 - 1.90MOQ: 10 Pieces
1. Machine from a Aluminum rod, for more consistent performance
2. High concentricity enable machine accurate running
3. Good finishing for accurate matching
4. Parallel and Spiral cutting both for option
Advantage:
- ·Spiral cuts accommodate angular, parallel & axial misalignment
- One-piece structure, accurate concentricity
- Low inertia
- Applicantable in high RPM
- Identical regular and reverse rotational characteristics
- Zero backlash
- Oil and chemical resistance

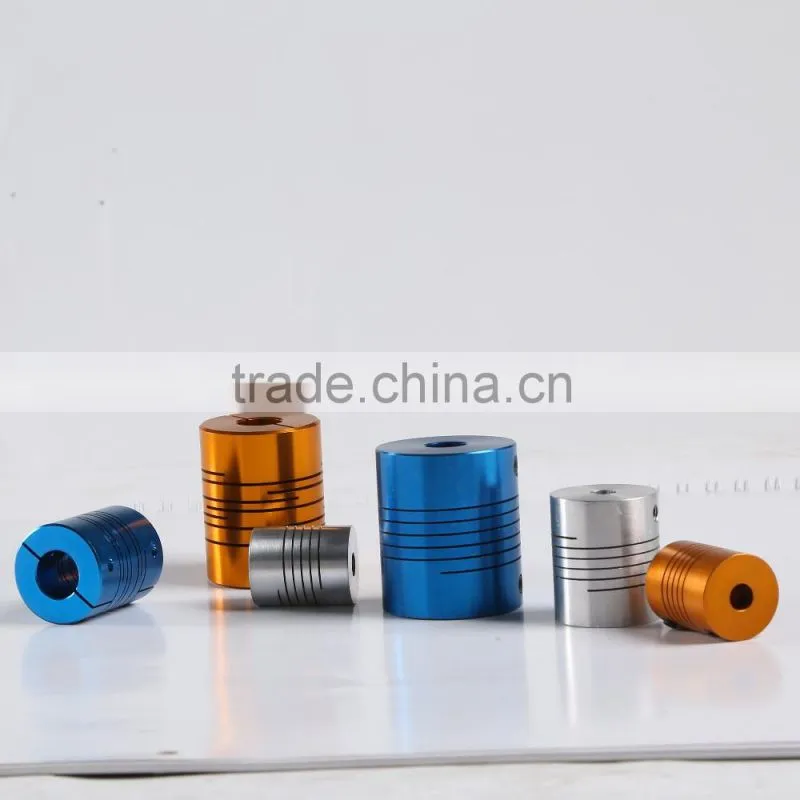

Beam coupling can be typically suitable when angular and complex misalignment is present. the possibility to incorporate features into the final product while still keep the single piece integrity.
Changes to the lead of the helical beam provide changes to misalignment capabilities as well as other performance characteristics such as torque capacity and torsional
stiffness. It is even possible to have multiple starts within the same helix.
Dimension
| Code | D | L | L1 | F | Bore | Weight | ||
| Min | Max | |||||||
| LP-12C | 12.7 | 19 | 5 | 2.5 | 3 | 5 | 3.8 | |
| LP-16C | 16 | 21.5 | 6.1 | 3 | 3 | 6 | 8.5 | |
| LP-19C | 19.1 | 23 | 6.1 | 3 | 4 | 8 | 12 | |
| LP-22C | 22.2 | 26.5 | 7.2 | 3.6 | 5 | 10 | 19 | |
| LP-26C | 26.2 | 31.4 | 7.4 | 3.7 | 5 | 12 | 33 | |
| LP-32C | 31.8 | 39 | 9.4 | 4.7 | 8 | 15 | 60 | |
| LP-32C | 31.8 | 44 | 9.4 | 4.7 | 8 | 15 | 68 | |
| LP-39C | 39 | 43 | 10.8 | 5.4 | 10 | 19 | 95 | |
| LP-39C | 39 | 56 | 12 | 6 | 10 | 19 | 135 | |
| LP-49C | 49 | 63.5 | 15 | 7.5 | 12 | 20 | 260 | |

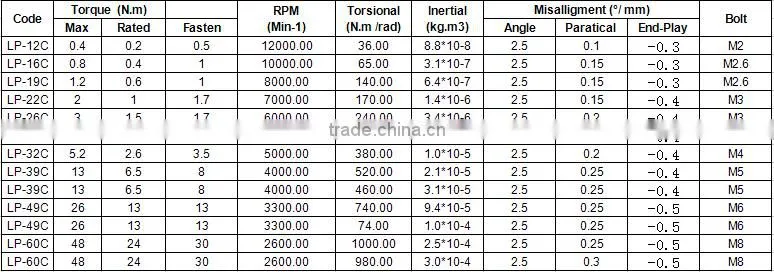

Quick Referene :
Packing details:
Anti-rust Paper---small box--- Carton, full consider of practical situation
Delivery details: 20-30 days.
Our Faith:
To Make it happen---needs from the market, from you.
