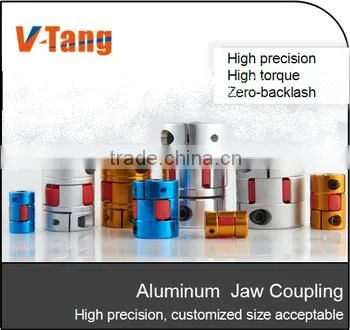

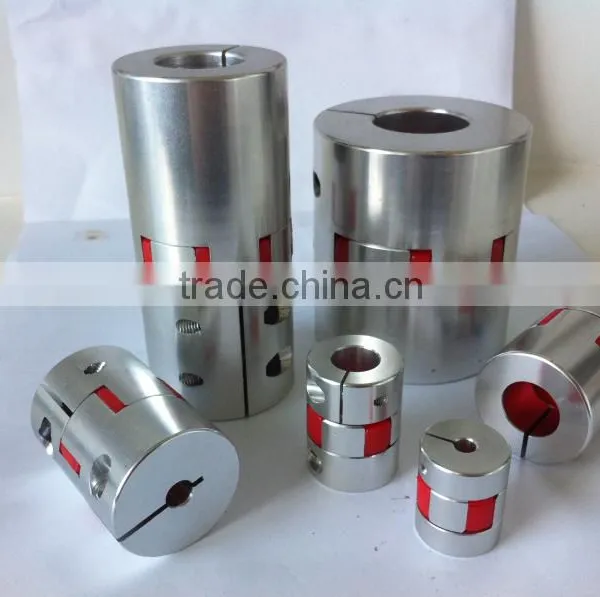

Flexible shaft jaw coupling spider coupler for CNC transmission machine stepper servo motor
1. Machine from a Aluminum rod, for more consistent performance
2. High concentricity enable machine accurate running
3. Good finishing for accurate matching
4. Clamp or set screw both for option
5. Different size for two hubs is available (d1 & d2 can be different size)
Advantage:
Disadvantages:
Dimension
Code |
A |
B |
C |
D |
E |
Bore |
Weight |
|
Min |
Max |
|||||||
LX-20C |
20.0 |
30.0 |
10.0 |
8.0 |
5.0 |
4.0 |
8.0 |
19.0 |
LX-25C |
25.0 |
32.5 |
10.0 |
9.0 |
5.0 |
5.0 |
10.0 |
25.0 |
LX-30C |
30.0 |
35.0 |
11.3 |
10.0 |
5.5 |
6.0 |
15.0 |
50.0 |
LX-40C |
40.0 |
66.0 |
25.0 |
12.0 |
8.5 |
8.0 |
19.0 |
160.0 |
1. Non through sleeve, Zero backlash.
2. Crown shape of the teeth, for easier assembly
3. Tightly fit with a column design of the sleeve
Quick Referene :
Packing details:
Anti-rust Paper---small box--- Carton, full consider of practical situation
Delivery details: 20-30 days.
Our Faith:
To Make it happen---needs from the market, from you.
