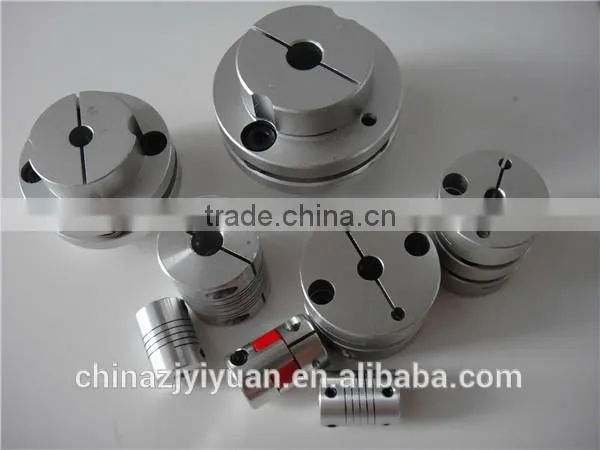

Help CenterAluminum Double Diaphragm Clamp Type Flexible Shaft Coupling D82 L98
Related Products
-
Zero Backlash Cheap Price Flexible Coupling Spring Coupling D18 L25US$ 1 - 50MOQ: 1 Set -
Manufacture Factory Supply Aluminum Shaft Flexible Spring Coupling Supplier D20 L25US$ 1 - 50MOQ: 1 Set
-
Aluminum Parallel Fixation Type Flexible Coupling Set Screw Coupling D25 L30US$ 1 - 50MOQ: 1 Set
-
High Quality Low Price Of Flexible Coupling / Encoder Coupling D30 L38US$ 1 - 50MOQ: 1 Set
-
High Quality DIY Jaw Flexible Coupling Connectors Drive D35 L40US$ 1 - 50MOQ: 1 Set
Specifications
Cheap Price With High QualityFree Samples Available
With Keyway or Without Keyway
Clamp Type
OEM Service Available
Features:
1.Item Name: Double Diaphragm Coupling (Clamp Type)
2.Diameter: 82mm(3.228")
3.Length: 98mm(3.858")
4.Sleeve Material: Polyurethane
5.Body Material: Aluminum Alloy
6.Shaft Usage: 15mm/15.875mm/16mm/17mm/18mm/19mm/20mm/21mm/22mm/24mm/25mm/26mm/28mm/30mm/32mm
0.591"/0.625"/0.630"/0.669"/0.709"/0.748"/0.787"/0.827"/0.866"/0.945"/0.984"/1.024"/1.102"/1.181"/1.260"
(Please leave me a message about hole sizes for two sides)
7.Rated: In-phase Operate
Used to connect Servo Motors,Stepper Motors,Encoder,Screw Driving,Machine Plateform,Lifting Platforms, Stepping Servo System, Etc.
Advantage:
1.Compact design, simple structure,light weight,easy inspection and installation,low rotational inertia;
2.Quality stainless steel diaphragm,fatigue resistance,and no rubber parts,wide temperature range of -50 to 200 degrees Celsius;
3.Stainless steel diaphragm can absorb vibration,compensate for radial,axial and angular misalignment;
4.Anti-oil,anti-corrosion and electrical insulation,maintenance-free;
5.Clockwise and counter-clockwise rotational characteristics,zero backlash;
OEM Service:
1.Customized design is available,OEM and ODM are welcomed;
2.Available with keyway or without keyway;
3.Material:Aluminum Alloy 6082 & 7003 & 7075,Stainless Steel 303 & 304 and Steel 45#;
4.Surface Processing:Polishing,Anodizing,Black Processing and Electroplating;
5.Packing: 1pc/PP bag,then pack with standard export or according to customers.
