Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-1
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-2
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-3
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-4
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-5
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 thumbnail-6
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-1

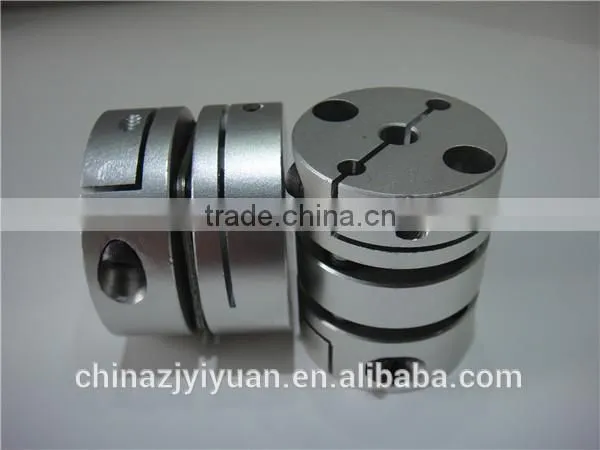

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-2

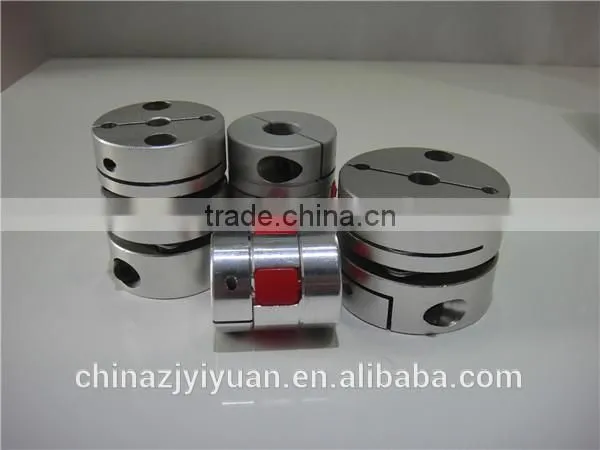

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-3

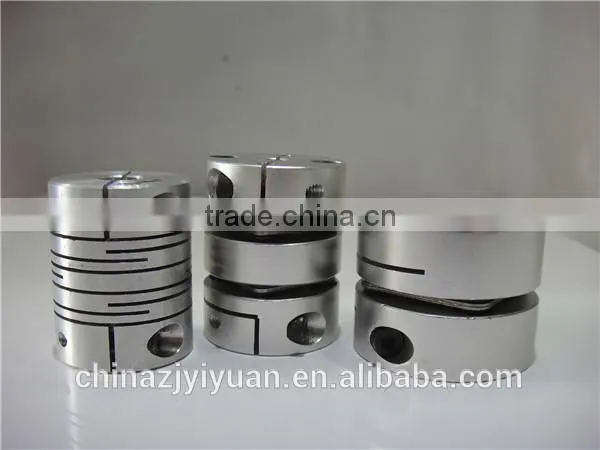

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-4

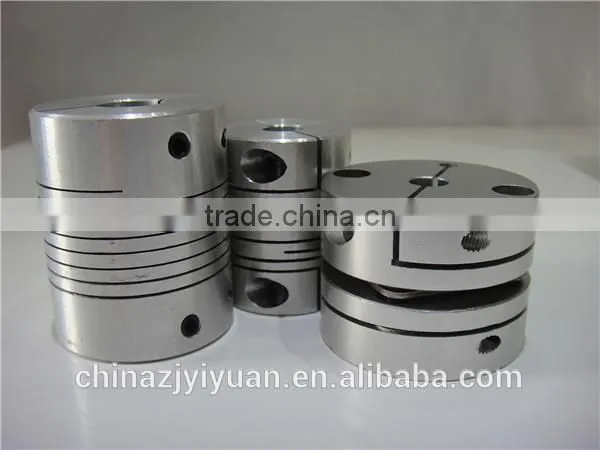

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-5
Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34 photo-6
US$ 1 - 50 MOQ: 1 Set
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Zhejiang Yiyuan Aerator Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port / Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Preeyo
Place of Origin Zhejiang, China
Model Number JM1-C39 D39xL34mm

Specifications

Cheap Price With High Quality
Free Samples Available
With Keyway or Without Keyway
Clamp Type
OEM Service Available

Features:



1.Item Name: Single Diaphragm Coupling (Clamp Type)

2.Diameter: 39mm(1.535")

3.Length: 34mm(1.339")

4.Sleeve Material: Polyurethane

5.Body Material: Aluminum Alloy

6.Shaft Usage: 5mm/6mm/6.35mm/7mm/8mm/9mm/9.525mm/10mm/11mm/12mm/12.7mm/14mm/15mm/15.875mm/16mm

           0.197"/0.236"/0.250"/0.276"/0.315"/0.354"/0.375"/0.394"/0.433"/0.472"/0.500"/0.551"/0.591"/0.625"/0.630"

            (Please leave me a message about hole sizes for two sides)

7.Rated: In-phase Operate





Used to connect Servo Motors,Stepper Motors,Encoder,Screw Driving,Machine Plateform,Lifting Platforms, Stepping Servo System, Etc.

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34

Advantage:

1.Compact design, simple structure,light weight,easy inspection and installation,low rotational inertia;

2.Quality stainless steel diaphragm,fatigue resistance,and no rubber parts,wide temperature range of -50 to 200 degrees Celsius;

3.Stainless steel diaphragm can absorb vibration,compensate for radial,axial and angular misalignment;

4.Anti-oil,anti-corrosion and electrical insulation,maintenance-free;

5.Clockwise and counter-clockwise rotational characteristics,zero backlash;

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34

OEM Service:

1.Customized design is available,OEM and ODM are welcomed;

2.Available with keyway or without keyway;

3.Material:Aluminum Alloy 6082 & 7003 & 7075,Stainless Steel 303 & 304 and Steel 45#;

4.Surface Processing:Polishing,Anodizing,Black Processing and Electroplating;

5.Packing: 1pc/PP bag,then pack with standard export or according to customers.

Clamp Type Single Diaphragm Flexible Shaft Couplings for Encoder D39 L34
