Specifications
8-9lm/led, Isolated power supplyPassed EMC test including EMI and EMS tests
CE and ROHS certificate
G13 base. Diameter 25.8mm
Isolated power supply
Endure 3750V high voltage
High power factor: 0.885~0.997
High conversion efficiency from electricity to light: >85%
Passed EMC test including EMI and EMS tests
Compatible with UL standard
48 hours aging test
Low working temperature, long working lifetime
Electrical Characteristics
Input voltage: 90-277VAC
No flickering even at instable voltage
Isolated power supply
Forward current: 18mA
Endure 3750V high voltage
High conversion efficiency from electricity to light: >85%
Passed EMC test including EMI and EMS test
Photometric Characteristics
Type of LED: Ultra bright 3528 SMD LED, 8-9lm/piece
Color: white(6000-6500K), commercial white(4000-4500K), warm white(2800-3300K), red,
green, blue
Mechanical Characteristics
1. Matt PC cover, 90% transparent efficiency
Avoid the dazzle caused by more transparent PC cover and the loss of lumen caused by
frosted PC cover
2. Aluminum pcb + frame
3. Ambient temperature: -40 degrees Celsius ~ 50 degrees Celsius
4. Working temperature: 50 degrees Celsius at room temperature 33 degrees Celcius
Method of Installation
Replacement for traditional T8 fluorescent tube
1. Switch off the power, including the live line and null line
2. Take out the traditional T8 fluorescent tube
3. Take out the starter
4. Take out the ballast
5. Put the T8 LED tube into the bracket
New Installation for new building
1. Install the bracket for T8 LED tube without starter and ballast.
2. Put the T8 LED tube into the bracket
Please use wet cloth with water to clean the surface of pc cover if necessary. Please do not
use alcohol.

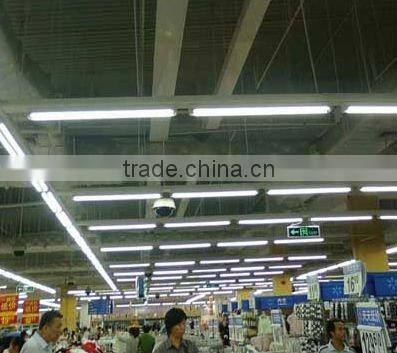

Applications:
1. Replacement for traditional T8 fluorescent tube light
2. Office
3. Commercial place
4. Railway station
5. Hospital
6. School
