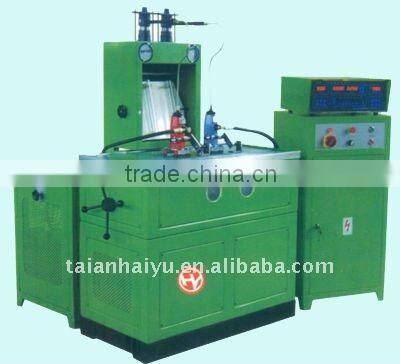

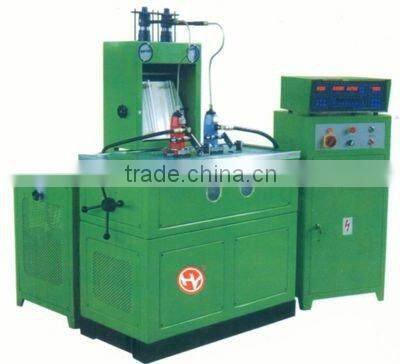

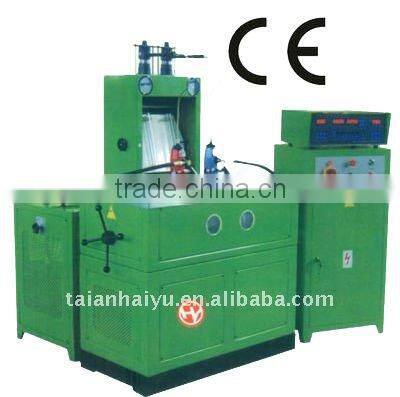

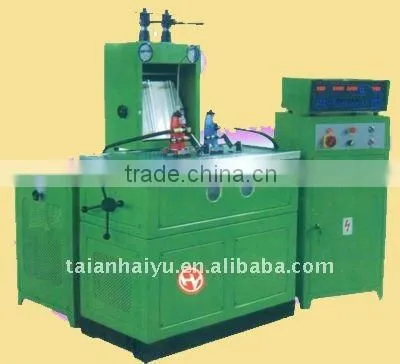

HY-D Unit Pump Test Bench ( be Used for Testing Ship Engine)

Name: HY-D Unit Pump Test Bench ( be Used for Testing Ship Engine)
Brand: HAIYU
SKU: 114737511
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Engine Analyzer

Voltage:

220v/380v

Power:

11kw or big power

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Type Engine Analyzer

Voltage 220v/380v

Power 11kw or big power

Certification CE/ISO 9001:2008 certificate

Applicable Models auto testing machine

Place of Origin Shandong, China

Brand Name HAIYU

Model Number HY-D

Specifications

1.Output Power:11kw,30kw,
2.Voltage: 380V,50Hz
3.overall dimension: 1140*1100*1750mm
4.Strong refrigeration
5.high quality

HY-D Unit Pump Test Bench

Technical Parameters:

Power	11kw
Speed range	stepless frequency conversion, multi-gear speed overhead,speed:50-1500rpmor at will
Number of station can be debugged	2
Fuel supply:	0-0.4MPa(low) 0-4MPa(high)
Filtering precision	10um
Structure	iron chassis, cast iron CAM spindle box structure
Fuel system	using radiator, air temperature display and automatic control
Overall dimension	1140×1100×1750(mm)
Net weight	1350Kg

Function	Adjusting of each cylinder delivery at any speed.
	Adjusting point and interval angle of oil supply of injection pump.
	Testing the performance of different mechanical governor.
	Checking of the sealing of injection pump.
	Testing the performance of single pump.
