Specifications
Adjusting of each cylinder delivery at any speedAdjusting point and interval angle of oil supply of injection pump

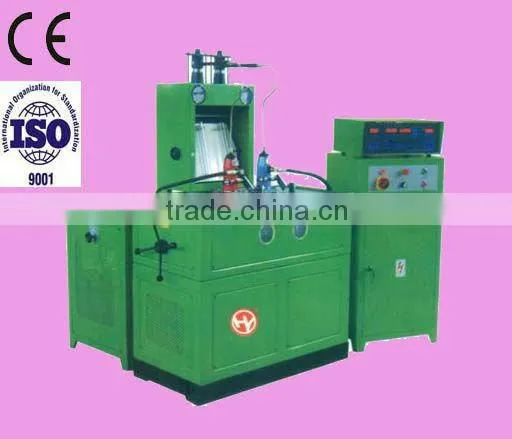

HY-D single pump test bench
|
Main function |
1. Adjusting of each cylinder delivery at any speed. |
2. Adjusting point and interval angle of oil supply of injection pump. | |
3. Testing the performance of different mechanical governor. | |
4. Checking of the sealing of injection pump. | |
5. Testing the performance of single pump. | |
Power |
11kw |
Speed range |
stepless frequency conversion, multi-gear speed overhead,speed:50-1500rpm or at will |
Number of station can be debugged |
2 |
Fuel supply: |
0-0.4MPa(low) 0-4MPa(high) |
Filtration precision |
10um |
structure |
Iron chassis, Cast iron CAM spindle box structure |
Fuel system |
using radiator, air temperature display and automatic control |
Overall dimension |
1140×1100×1750(mm) |
Net weight |
1350Kg |
