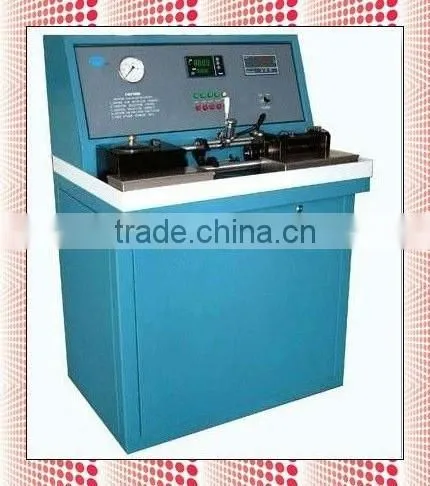

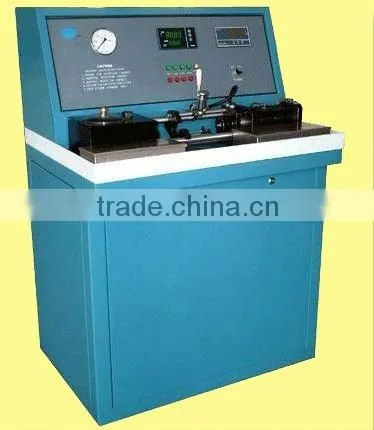

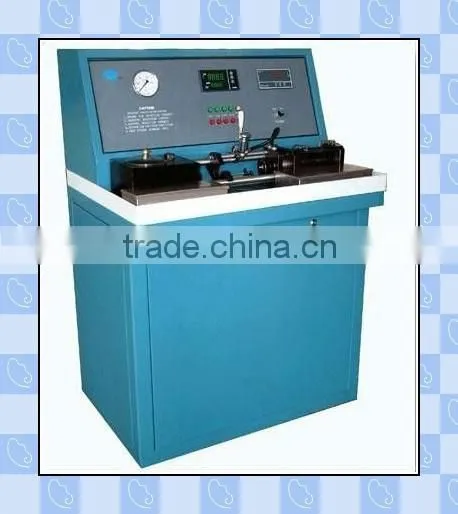

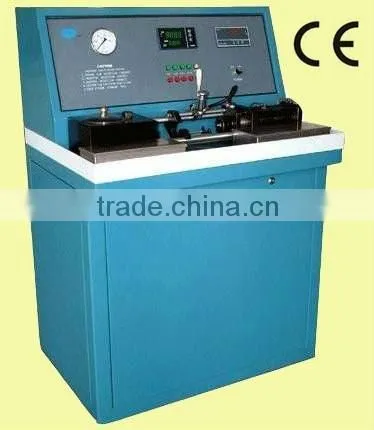

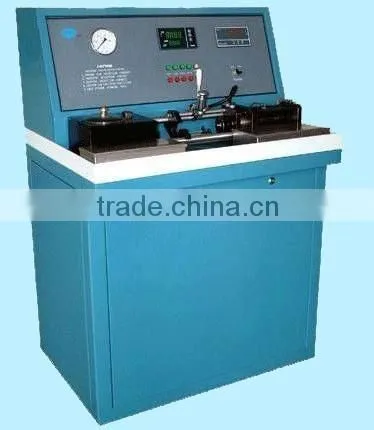

HY-PTPL Fuel Injector Test Bench
high quality, fast delivery
CE/ISO certificate
Introduction:
PTPL injector test bench is used to test the injection quantity of PT Flange Type, Cylinder Type, PT (K) injectors and so on. The test bench has the following features;
- It is controlled by microcomputer. Injection quantity is digital display and readout intuitively. Its measurement precision is ±2 every time.
- According to the injection quantity of different injectors, test bench can meter in the range of 100 times.
- The injecting back-pressure simulator of injectors simulates the compression stress when injecting in cylinder. It can make injector injecting on test bench the same with injecting in cylinder of engine.
- It is more convenient to assemble and disassemble the cam. And cam can be chosen according to different injectors.
- Temperature of fuel tank is controlled automatically. To ensure fuel works in the fixed range.
- Operating pressure indicator system can monitor change of fuel pressure of each fuel circuit intuitively.
- Control button on instrument board is controlled by interlock circuit, increasing safety in operation.
Technical Information:
Main Technical specifications
Machine Name |
PT Injector Injection Quantity Test Bench |
Machine Model |
PTPL |
Main Control System |
Omron CAM1A-30CDR-A-V1 |
Main Motor Power |
0.5kw |
Cam Motor Power |
1.1kw |
Max Clamping Trip |
50mm |
Test Rotating Speed |
1000r/min |
Clamping pressure |
680KPa |
Test Fuel temperature |
32~38°C |
Measuring Range |
500ml/1000stroke |
Measuring Precision |
±2 ml/1000stroke |
Fuel Tank Capacity |
35L |
Weight |
360Kg |
Over Dimension |
980mm×700mm×1510 mm |
CE certificate and ISO9001:2008 certificate
Waiting for your cooperation sincerely!!!
