PTPL test bench for testing fuel injector from haiyu, with stable performance
- 10 Set / Sets per Month
- Qingdao Shanghai
- T/T Credit Card PayPal
- High Pressure Oil Tube for Test Bench,CE/ISO
- haiyu PTPM diesel injector tightness test bench with perfect designed
- professional PTPM fuel injector tightness testing instrument
- fuel injector testing equipment from haiyu--PTPL, with stable performance
- HOT selling fuel injector tightness testing instrument--PTPM
- haiyu PTPL fuel injector testing instrument, professional test bench
Product Details
Type: | Engine Analyzer | Voltage: | 220v/380v | Power: | 0.5kw |
Certification: | ISO9001:2008,CE certificate | Applicable Models: | diesel vehicles | Place of Origin: | Shandong, China |
Brand Name: | Haiyu | Model Number: | HY-PTPL |
Packaging Details
standard package fit for delivery
Product Description

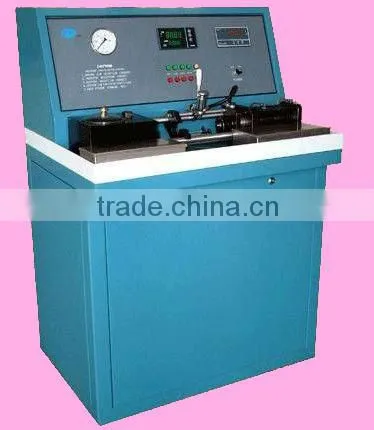

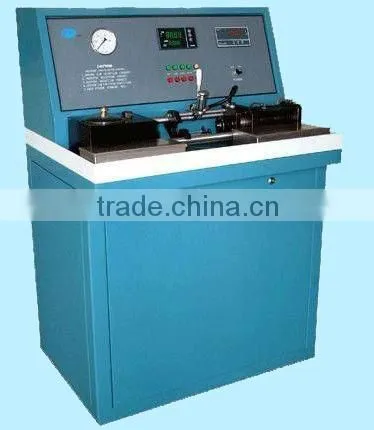

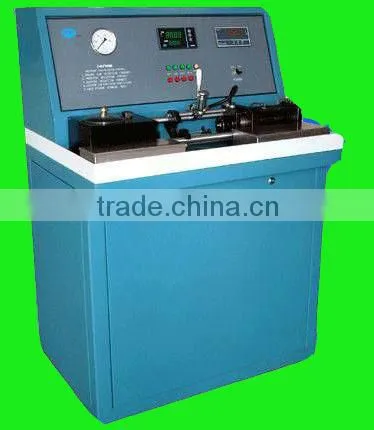

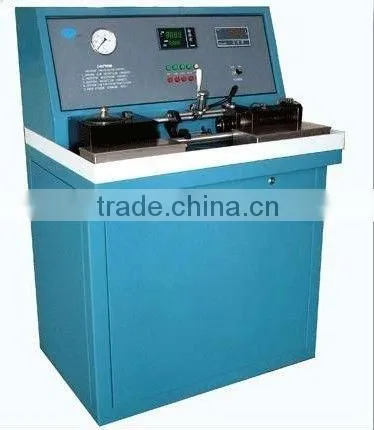

HY-PTPL Fuel Injector Test Bench
high quality, fast delivery
CE/ISO certificate
Introduction:
PTPL injector test bench is used to test the injection quantity of PT Flange Type, Cylinder Type, PT (K) injectors and so on. The test bench has the following features;
- It is controlled by microcomputer. Injection quantity is digital display and readout intuitively. Its measurement precision is ±2 every time.
- According to the injection quantity of different injectors, test bench can meter in the range of 100 times.
- The injecting back-pressure simulator of injectors simulates the compression stress when injecting in cylinder. It can make injector injecting on test bench the same with injecting in cylinder of engine.
- It is more convenient to assemble and disassemble the cam. And cam can be chosen according to different injectors.
- Temperature of fuel tank is controlled automatically. To ensure fuel works in the fixed range.
- Operating pressure indicator system can monitor change of fuel pressure of each fuel circuit intuitively.
- Control button on instrument board is controlled by interlock circuit, increasing safety in operation.
Technical Information:
Main Technical specifications
Machine Name | PT Injector Injection Quantity Test Bench |
Machine Model | PTPL |
Main Control System | Omron CAM1A-30CDR-A-V1 |
Main Motor Power | 0.5kw |
Cam Motor Power | 1.1kw |
Max Clamping Trip | 50mm |
Test Rotating Speed | 1000r/min |
Clamping pressure | 680KPa |
Test Fuel temperature | 32~38°C |
Measuring Range | 500ml/1000stroke |
Measuring Precision | ±2 ml/1000stroke |
Fuel Tank Capacity | 35L |
Weight | 360Kg |
Over Dimension | 980mm×700mm×1510 mm |
CE certificate and ISO9001:2008 certificate
Waiting for your cooperation sincerely!!!
