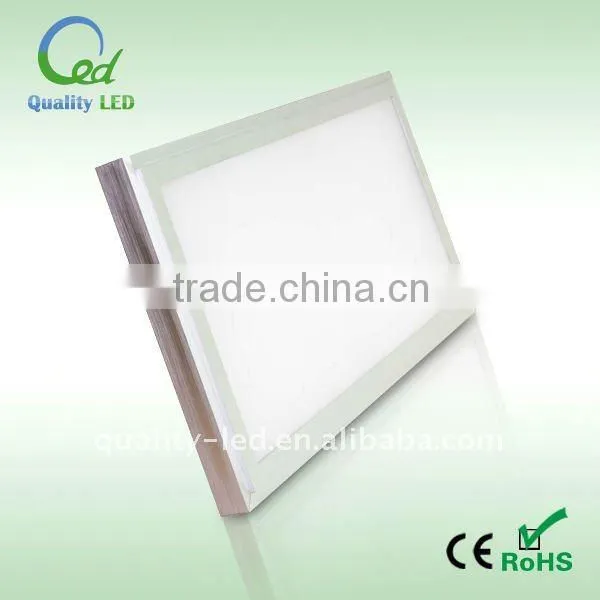

Newest dimmable 300x1200 LED Panel Light(hot sale )

Newest dimmable 300x1200 LED Panel Light

Electrical Characteristics

1. Operating Voltage: low voltage DC24V

2. Input Voltage: AC85V~AC265V available

3. Light source: low power SMD LEDs (placed in the edge of the plate)

4. Uniformity of light color: ≥ 90%

5. Color Rendering Index (Ra): > 85

6. Lifespan: ≥ 50000h (8 years using validity)

7. Beam angle: 120 degree

8. Edge-lit methods, with advanced light guide technology.

9. Low heat, and more enviornment protection.

10. No stroboscopic, no pollution, long lifespan, low luminous decay

 Mechanical Characteristics

1. High quality lumisheet acrylic plate (PMMA).Aluminum PCB
2. Aluminum frame
3. Ambient temperature: -40 degrees Celsius ~ 60 degrees Celsius
4. Working temperature: 55 degrees Celsius at room temperature 33 degrees Celcius

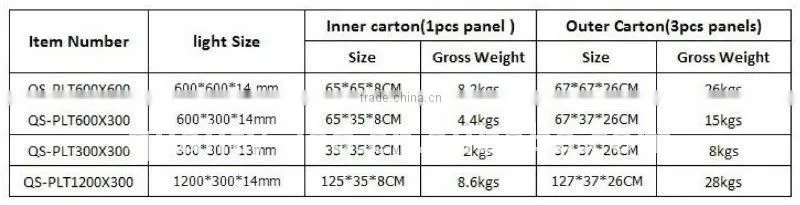

Package:

 Application Scene
