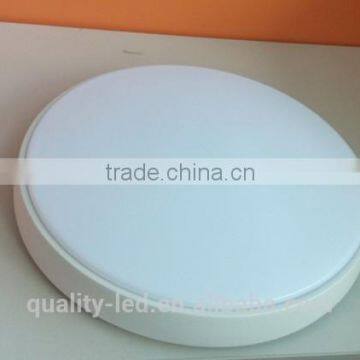

aladdin trade IP44 surface mounted led ceiling light
Specifications of IP44 surface mounted led ceiling light
Item NO. |
QS-ND-CL12W |
QS-ND-CL18W |
QS-ND-CL24W |
QS-ND-CL30W |
Light Source |
Samsung 0.5W led |
Samsung 0.5W led |
Samsung 0.5W led |
Samsung 0.5W led |
Quantity of LED |
24 pieces |
36 pieces |
48 pieces |
60 pieces |
Luminous Flux |
780lm (cool white) |
1250lm (cool white) |
1600lm (cool white) |
1900lm (cool white) |
750lm (commercial white) |
1200lm (commercial white) |
1500lm (commercial white) |
1800lm (commercial white) |
|
720lm (warm white) |
1150lm (warm white) |
1400lm (warm white) |
1700lm (warm white) |
|
CIR |
>80 |
>80 |
>80 |
>80 |
Input Voltage |
110-240V AC 50/60Hz |
110-240V AC 50/60Hz |
110-240V AC 50/60Hz |
110-240V AC 50/60Hz |
Wattage |
12 Watts |
18 Watts |
24 Watts |
30 Watts |
Dimension |
(D)242X (H)82 mm |
(D)298 X (H)91mm |
(D)368 X (H)92mm |
(D)428 X (H)87 mm |
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
Lifespan |
50,000h |
50,000h |
50,000h |
50,000h |
Warranty |
3 years |
3 years |
3 years |
3 years |
Working temperature |
-20℃ ~ + 50℃ |
-20℃ ~ + 50℃ |
-20℃ ~ + 50℃ |
-20℃ ~ + 50℃ |
Functions |
Motion sensor Sensor &dimmer
|
Motion sensor Sensor &dimmer Emergency |
Motion sensor Sensor &dimmer Emergency |
Motion sensor Sensor &dimmer Emergency |
IP44,Dimmable,motion sensor,emergency functions.

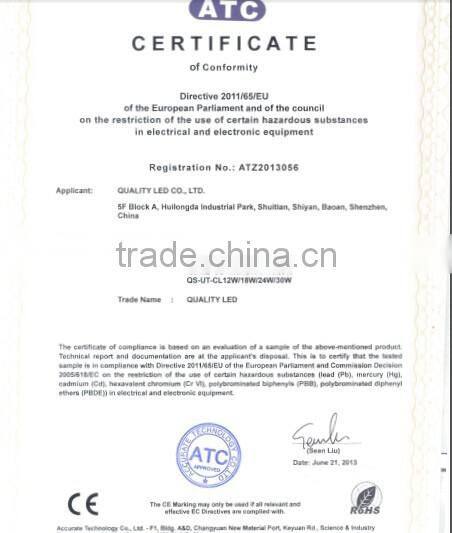

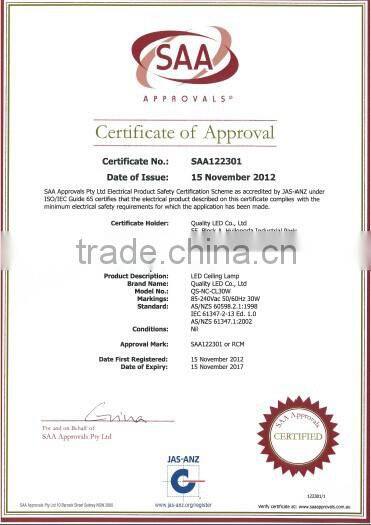

Patented products,CE,RoHS,SAA approval,
Advantages IP44 surface mounted led ceiling light
- High power led, energy-saving and low cost, can save 70% more energy compared with traditional lighting fixtures.
- High brightness, samsung leds
- Special heat sink design, low working temperature
- NO radiation (UV,IR), no mercury or lead, no flickering
- Can be dimmable, with microwave sensor
- Can be ceiling or wall surface-mounted
- CE and RoHS approval
- AC110V~240V
- CCT:white(6000-6500K), commercial white(4000-4500K), warm white(2800-3300K)
- Lifespan: more than 50,000hours
- Frame finish:silver,white or others.
Five Powerful Functions of IP44 surface mounted led ceiling light

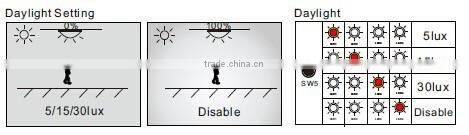

1. Daylight detection If choose among 5lux, 15lux and 30lux, the motion sensor will work only if the daylight is darker than the set lumen. If disable this function, the motion sensor will work at any time.

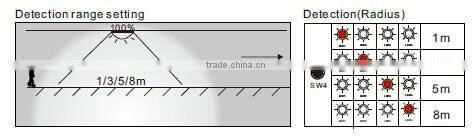

2. Detection area setting The detection area can be set among diameter 1m, 3m, 5m and 8m

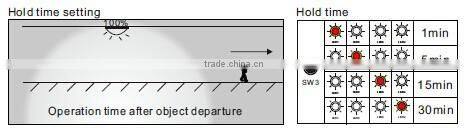

3. Hold time setting After object departure, the light will keep on at full brightness within set time 1min, 5min, 15min or 30min

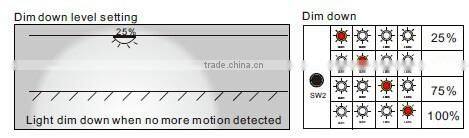

4. Dim down level setting Light dim down when no more motion detected, the level can be set among 25%, 50%, 75% and 100%

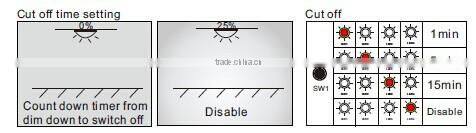

5. Cut off time setting If choose among 1min, 5min and 15min, the count down timer from dim down to switch off will work. If disable this function, when no more motion detected,
the light will keep the dim down level after hold time.
Applications of IP44 surface mounted led ceiling light
- Commercial lighting, such as hotel, meeting room, restaurant, shopping hall
- Office lighting,factory, Office building
- Warehouse lighting, householdlighting etc.
- Public lighting:hospital, school, subway and washroom, walkway and any other places which need high rendering index lighting.

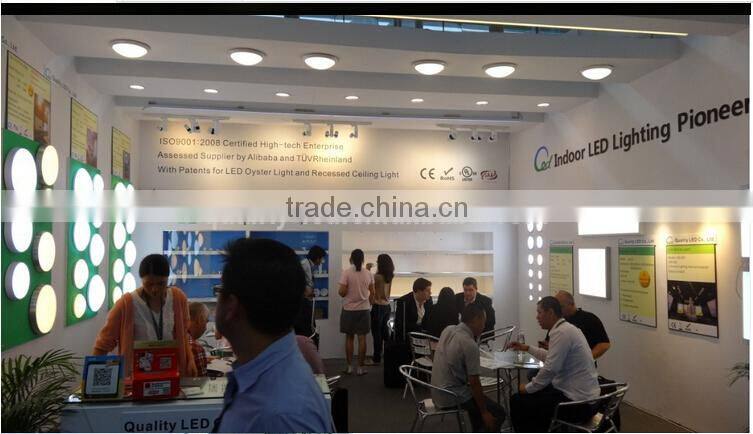

We are at exhibition

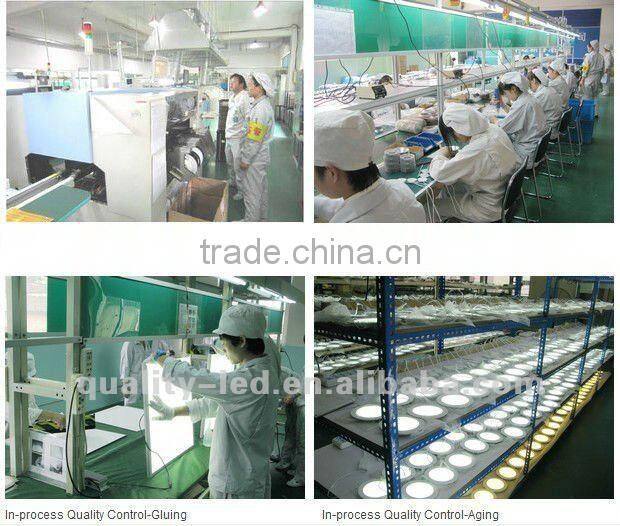

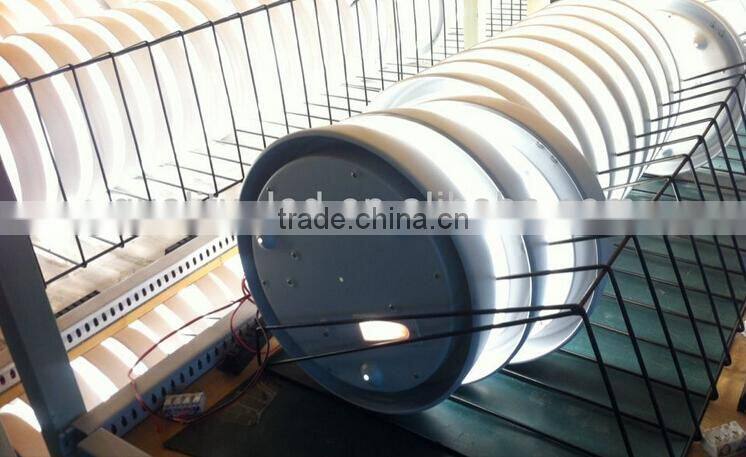

Our Factory Environment:
