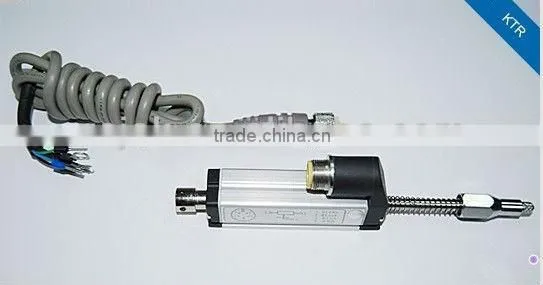

KTR-100MM Linear Position Transducer ,linear Ruler , Linear Position Scaler
US$ 1 - 999
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MIRAN
Model Number:
KTR
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KTR-125MM Linear Position Transducer ,linear Ruler , Linear Position ScalerUS$ 1 - 999MOQ: 1 Piece -
KTR-50MM Linear Position Transducer ,linear Ruler , Linear Position ScalerUS$ 1 - 999MOQ: 1 Piece
-
Linear Potentiometer Sensor Position Transducer KTC-700MMUS$ 1 - 999MOQ: 1 Piece
-
KTR-10MM Linear Transducer , Linear Position Scaler , Linear Position TransducerUS$ 1 - 999MOQ: 1 Piece
-
Linear Potentiometer Sensor Position Transducer KTC-75MMUS$ 1 - 999MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
MIRAN
Model Number
KTR
Usage
Other, Position Sensor, Position Sensor
Output
Other, Voltage
Specifications
Mini auto return spring auto Linear potentiometerEffective stroke 10 mm to 125 mm
Linearity: 0.1% FS
IP65
Spring load s
|
Product specifications
|
|
| Parameters | Specifications |
| OUTPUT | |
| Stroke length(mm) | 10 ~ 125 |
| Mechanic Stroke length | Stroke length + 3mm |
| Non-linearity | ±0.1%full stroke |
| Resolution | Infinite |
| Repeatability | 0.01mm |
| Max operating speed | 5m/s |
| Output type | 0~100% of operating voltage(vary with position) |

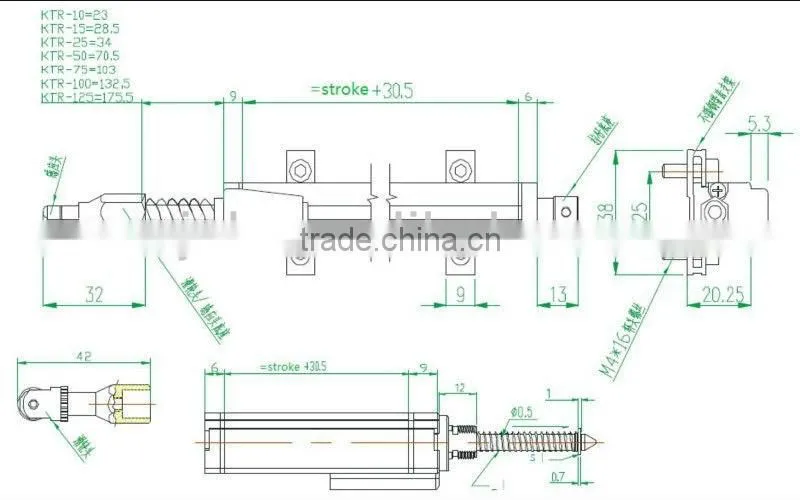

| Dimension A | Stroke length + 43mm |
| Total length C | 120mm ~ 314mm |
| ENVIRONMENTAL | |
| Operating temperature | −60°C~+150°C |
| Temperature coefficient | <1.5PPM/°C |
| Shock rating | 50g(single hit) / IEC68-2-29:1968 |
| Vibration rating | 20g / IEC68-2-6:1982 |
| Protection rating | IP65 |
| ELECTRONICS | |
| Max operating voltage | DC36V |
| Operating current | ≤10mA |
| Resistence ±10% |
10~25mm Effective stroke: 1KΩ; 50mm Effective stroke:2KΩ;75~100mm Effective stroke:5KΩ
|
